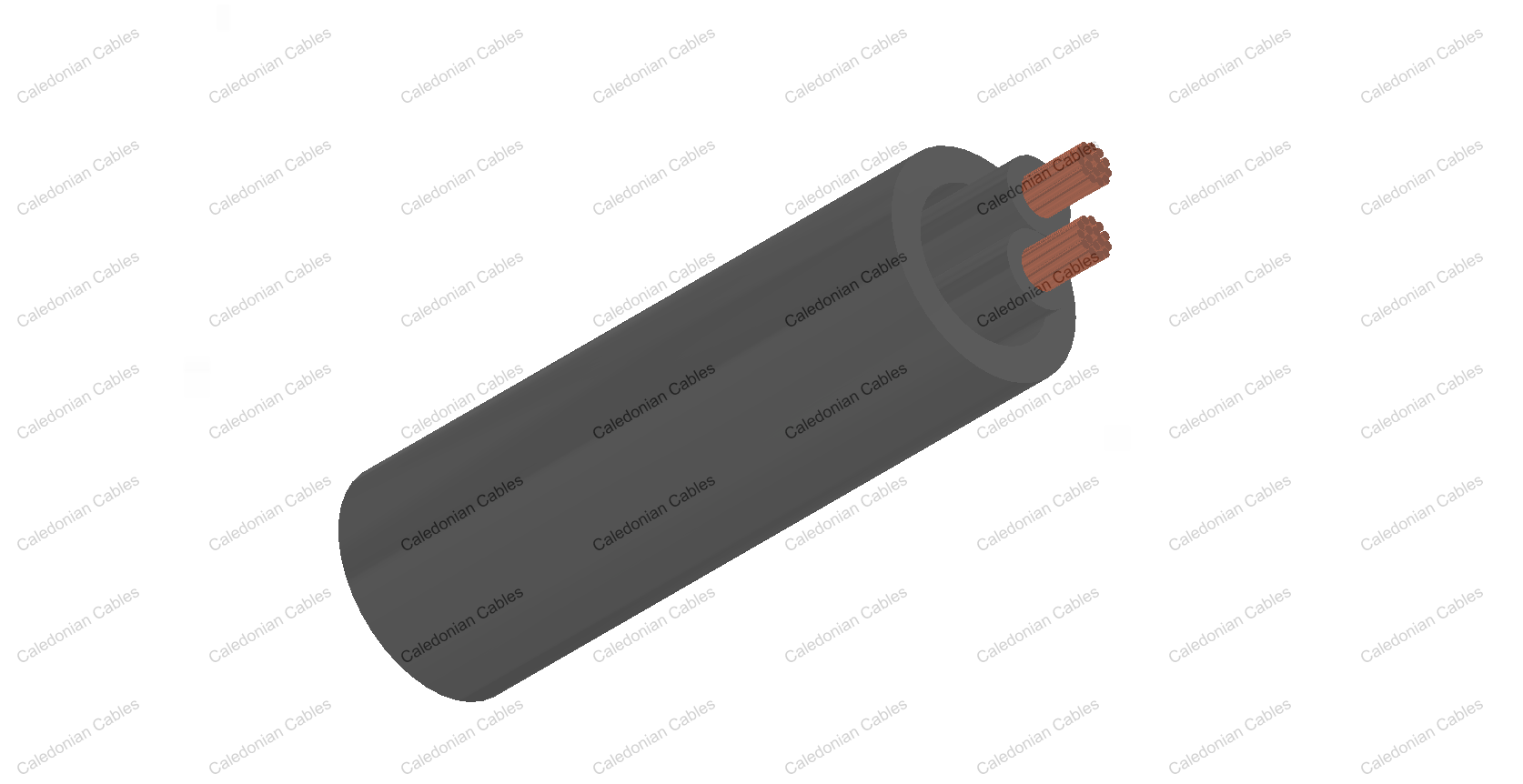

    Low Smoke Halogen Free Flame Retardant Thin Wall Multicore Cables (250V, 750V)

    WDZ-DCK/B-100, WDZ-DCK/B-125 250V, 750V

    Application

    -Used as power and control cable for protected installations inside and outside of rail and transport vehicles, where handling and installation cost are an important factor.

    -Used in control, auxillary and main circuit wiring such as cable harnesses, switchboards and control panels, driver desks etc.

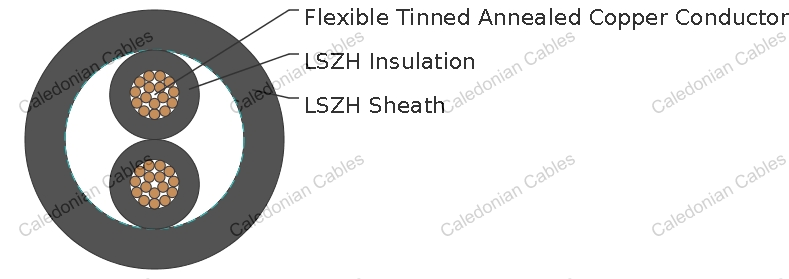

    Construction

    Conductor Tinned copper wires
    Separator (if available)
    Insulation Low smoke halogen free flame retardant compound
    Filler
    Separator
    Sheath Low smoke halogen free flame retardant compound

    Electrical & Mechanical Properties

    Nominal Voltage 250V, 750V
    Long-term Working Temperature

    100°C (WDZ-DCK/B-100);

    125°C (WDZ-DCK/B-125)
    Lowest Operation Temperature -40°C
    Minimum Bending Radius

    2 x Overall Diameter (OD≤10mm);

    4 x Overall Diameter (10mm≤OD≤20mm);

    6 x Overall Diameter (OD≥20mm)

    Fire Performance

    Flame Retardant GB/T 18380.1-2001; GB/T 18380.3-2001 C
    Low Corrosivity (Acidity & Conductivity) GB/T17650.1-1998; GB/T17650.2-1998
    Halogen Free GB/T17650.1-1998; GB/T17650.2-1998
    Low Smoke GB/T17651.1-1998; GB/T17651.2-1998

    WDZ-DCK/B-100, WDZ-DCK/B-125 250V

    Number of conductor×Nominal Cross-Sectional Area Conductor Construction Overall Diameter Weight Maximum Conductor Resistance 20°C
    mm² No/mm mm kg/km Ω/km
    2×0.5 16/0.20 5.0 38 40.1
    3×0.5 16/0.20 5.7 46 40.1
    5×0.5 16/0.20 6.5 65 40.1
    7×0.5 16/0.20 7.0 80 40.1
    11×0.5 16/0.20 8.7 117 40.1
    16×0.5 16/0.20 9.5 154 40.1
    19×0.5 16/0.20 10.0 176 40.1
    20×0.5 16/0.20 10.5 187 40.1
    24×0.5 16/0.20 11.5 217 40.1
    33×0.5 16/0.20 13.0 295 40.1
    37×0.5 16/0.20 13.4 324 40.1
    43×0.5 16/0.20 15.0 373 40.1
    48×0.5 16/0.20 15.2 407 40.1
    2×0.75 24/0.20 5.5 48 26.7
    3×0.75 24/0.20 6.2 57 26.7
    5×0.75 24/0.20 7.2 82 26.7
    7×0.75 24/0.20 7.7 102 26.7
    11×0.75 24/0.20 9.7 152 26.7
    16×0.75 24/0.20 10.7 203 26.7
    19×0.75 24/0.20 11.2 233 26.7
    20×0.75 24/0.20 11.7 248 26.7
    24×0.75 24/0.20 13.4 302 26.7
    33×0.75 24/0.20 14.6 394 26.7
    37×0.75 24/0.20 15.1 434 26.7
    43×0.75 24/0.20 16.9 501 26.7
    48×0.75 24/0.20 17.2 549 26.7
    2×1.0 32/0.20 5.9 55 20.0
    3×1.0 32/0.20 6.6 67 20.0
    5×1.0 32/0.20 7.6 98 20.0
    7×1.0 32/0.20 8.2 124 20.0
    11×1.0 32/0.20 10.5 186 20.0
    16×1.0 32/0.20 11.5 250 20.0
    19×1.0 32/0.20 12.5 301 20.0
    20×1.0 32/0.20 13.1 320 20.0
    24×1.0 32/0.20 14.4 373 20.0
    33×1.0 32/0.20 15.8 490 20.0
    37×1.0 32/0.20 16.4 540 20.0
    43×1.0 32/0.20 18.7 643 20.0
    48×1.0 32/0.20 19.0 704 20.0
    2×1.5 48/0.20 6.5 70 13.7
    3×1.5 48/0.20 7.2 86 13.7
    5×1.5 48/0.20 8.4 129 13.7
    7×1.5 48/0.20 9.1 166 13.7
    11×1.5 48/0.20 11.7 252 13.7
    16×1.5 48/0.20 13.3 356 13.7
    19×1.5 48/0.20 14.0 411 13.7
    20×1.5 48/0.20 14.6 436 13.7
    24×1.5 48/0.20 16.2 511 13.7
    33×1.5 48/0.20 18.1 693 13.7
    37×1.5 48/0.20 18.8 765 13.7
    43×1.5 48/0.20 21.0 855 13.7
    48×1.5 48/0.20 21.4 973 13.7
    2×2.5 77/0.20 7.4 96 8.21
    3×2.5 77/0.20 8.2 125 8.21
    5×2.5 77/0.20 9.7 185 8.21
    7×2.5 77/0.20 10.5 241 8.21
    11×2.5 77/0.20 14.0 383 8.21
    16×2.5 77/0.20 15.5 524 8.21
    19×2.5 77/0.20 16.3 607 8.21
    20×2.5 77/0.20 17.1 646 8.21
    24×2.5 77/0.20 19.4 778 8.21
    33×2.5 77/0.20 21.3 1034 8.21
    37×2.5 77/0.20 22.1 1145 8.21
    43×2.5 77/0.20 25.0 1337 8.21
    48×2.5 77/0.20 25.4 1474 8.21
    2×4.0 77/0.26 8.6 139 5.09
    3×4.0 77/0.26 9.5 186 5.09
    5×4.0 77/0.26 11.3 279 5.09
    7×4.0 77/0.26 12.7 382 5.09
    11×4.0 77/0.26 16.5 591 5.09
    16×4.0 77/0.26 18.7 833 5.09
    19×4.0 77/0.26 19.7 968 5.09
    20×4.0 77/0.26 20.7 1029 5.09
    24×4.0 77/0.26 23.2 1230 5.09
    33×4.0 77/0.26 25.5 1643 5.09
    37×4.0 77/0.26 26.5 1822 5.09
    43×4.0 77/0.26 29.8 2112 5.09
    48×4.0 77/0.26 30.3 2334 5.09

    WDZ-DCK/B-100, WDZ-DCK/B-125 750V

    Number of conductor×Nominal Cross-Sectional Area Conductor Construction Overall Diameter Weight Maximum Conductor Resistance 20°C
    mm² No/mm mm kg/km Ω/km
    2×0.5 16/0.20 5.2 44 40.1
    3×0.5 16/0.20 5.9 51 40.1
    5×0.5 16/0.20 6.8 71 40.1
    7×0.5 16/0.20 7.3 87 40.1
    11×0.5 16/0.20 9.1 128 40.1
    16×0.5 16/0.20 10.0 167 40.1
    19×0.5 16/0.20 10.5 191 40.1
    20×0.5 16/0.20 11.0 215 40.1
    24×0.5 16/0.20 12.5 249 40.1
    33×0.5 16/0.20 13.7 320 40.1
    37×0.5 16/0.20 14.1 351 40.1
    43×0.5 16/0.20 15.8 422 40.1
    48×0.5 16/0.20 16.0 459 40.1
    2×0.75 24/0.20 5.7 52 26.7
    3×0.75 24/0.20 6.4 62 26.7
    5×0.75 24/0.20 7.4 88 26.7
    7×0.75 24/0.20 8.0 110 26.7
    11×0.75 24/0.20 10.1 163 26.7
    16×0.75 24/0.20 11.1 216 26.7
    19×0.75 24/0.20 11.7 261 26.7
    20×0.75 24/0.20 12.7 278 26.7
    24×0.75 24/0.20 14.0 322 26.7
    33×0.75 24/0.20 15.3 419 26.7
    37×0.75 24/0.20 15.8 470 26.7
    43×0.75 24/0.20 18.1 552 26.7
    48×0.75 24/0.20 18.4 602 26.7
    2×1.0 32/0.20 6.1 61 20.0
    3×1.0 32/0.20 6.8 73 20.0
    5×1.0 32/0.20 7.9 106 20.0
    7×1.0 32/0.20 8.5 133 20.0
    11×1.0 32/0.20 10.9 212 20.0
    16×1.0 32/0.20 12.0 281 20.0
    19×1.0 32/0.20 13.0 322 20.0
    20×1.0 32/0.20 13.6 342 20.0
    24×1.0 32/0.20 15.0 398 20.0
    33×1.0 32/0.20 16.5 540 20.0
    37×1.0 32/0.20 17.1 593 20.0
    43×1.0 32/0.20 19.5 685 20.0
    48×1.0 32/0.20 19.8 749 20.0
    2×1.5 48/0.20 6.7 78 13.7
    3×1.5 48/0.20 7.4 94 13.7
    5×1.5 48/0.20 8.7 133 13.7
    7×1.5 48/0.20 9.4 171 13.7
    11×1.5 48/0.20 12.5 272 13.7
    16×1.5 48/0.20 13.8 366 13.7
    19×1.5 48/0.20 14.5 424 13.7
    20×1.5 48/0.20 15.1 451 13.7
    24×1.5 48/0.20 16.8 528 13.7
    33×1.5 48/0.20 18.8 717 13.7
    37×1.5 48/0.20 19.5 792 13.7
    43×1.5 48/0.20 21.8 916 13.7
    48×1.5 48/0.20 22.2 1007 13.7
    2×2.5 77/0.20 7.6 99 8.21
    3×2.5 77/0.20 8.4 129 8.21
    5×2.5 77/0.20 10.0 190 8.21
    7×2.5 77/0.20 10.8 247 8.21
    11×2.5 77/0.20 14.4 393 8.21
    16×2.5 77/0.20 16.0 537 8.21
    19×2.5 77/0.20 16.8 622 8.21
    20×2.5 77/0.20 18.0 680 8.21
    24×2.5 77/0.20 20.0 797 8.21
    33×2.5 77/0.20 22.0 1060 8.21
    37×2.5 77/0.20 23.0 1185 8.21
    43×2.5 77/0.20 25.8 1371 8.21
    48×2.5 77/0.20 26.2 1511 8.21
    2×4.0 77/0.26 8.8 142 5.09
    3×4.0 77/0.26 9.7 190 5.09
    5×4.0 77/0.26 11.6 285 5.09
    7×4.0 77/0.26 13.0 389 5.09
    11×4.0 77/0.26 16.9 599 5.09
    16×4.0 77/0.26 19.2 849 5.09
    19×4.0 77/0.26 20.2 986 5.09
    20×4.0 77/0.26 21.2 1049 5.09
    24×4.0 77/0.26 23.8 1246 5.09
    33×4.0 77/0.26 26.2 1667 5.09
    37×4.0 77/0.26 27.2 1849 5.09
    43×4.0 77/0.26 30.6 2143 5.09
    48×4.0 77/0.26 31.1 2368 5.09
