-Used as power and control cable for protected installations inside and outside of rail and transport vehicles, where handling and installation cost are an important factor.
-Used in control, auxillary and main circuit wiring such as cable harnesses, switchboards and control panels, driver desks etc.

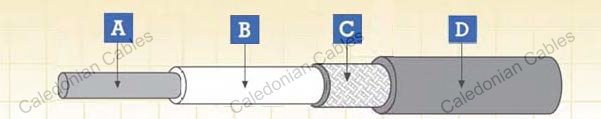

| Conductor | Soft tinned annealed brass wires |
| Insulation | 125°C non-halogen flame-retardant compound |
| Screen | Tinned copper braid |
| Sheath | 125°C non-halogen flame-retardant compound |
| Nominal Voltage | 1.8/3 kV |
| Long-term Working Temperature | 125°C |
| Short Circuit Temperature (5s) | 250°C |
| Long-term Working Ambient Temperature | -40°C/+70°C |
| Minimum Bending Radius | 5 x Overall Diameter |
| Flame Retardant | GB 12666.2-1990 DZ-1 |
| Low Corrosivity (Acidity & Conductivity) | GB/T17650.1-1998; GB/T17650.2-1998 |
| Halogen Free | GB/T17650.1-1998; GB/T17650.2-1998 |
| Low Smoke | GB/T17651.1-1998; GB/T17651.2-1998 |
| Nominal Cross-Sectional Area | Stranding | Insulation Thickness | Sheath Thickness | Maximum Overall Diameter | Weight | Maximum Conductor Resistance 20°C |
|---|---|---|---|---|---|---|
| mm² | No/mm | mm | mm | mm | kg/km | Ω/km |
| 35 | 1107/0.2 | 1.8 | 1.2 | 16.5 | 666 | 0.393 |
| 70 | 2220/0.2 | 1.9 | 1.5 | 21.0 | 1172 | 0.210 |
