-Used as power and control cable for protected installations inside and outside of rail and transport vehicles, where handling and installation cost are an important factor.
-Used in control, auxillary and main circuit wiring such as cable harnesses, switchboards and control panels, driver desks etc.

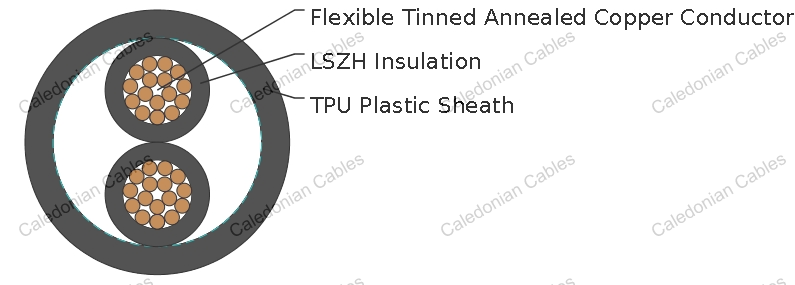

| Conductor | Tinned copper wires |
| Insulation | Electron beam crosslinkable LSZH compound |
| Sheath | TPU plastic sheath |
| Nominal Voltage | 750V |
| Short Circuit Temperature (5s) | 250°C |
| Operating Temperature | -60°C/+125°C |
| Minimum Bending Radius | 3 x Overall Diameter (OD≤20mm); 5 x Overall Diameter (OD≥20mm) |
| Flame Retardant | GB 12666-90 DZ-1 |
| Low Corrosivity (Acidity & Conductivity) | GB/T17650.1-1998; GB/T17650.2-1998 |
| Halogen Free | GB/T17650.1-1998; GB/T17650.2-1998 |
| Low Smoke | GB/T17651.1-1998; GB/T17651.2-1998 |
| Number of conductor×Nominal Cross-Sectional Area | Conductor Construction | Maximum Overall Diameter | Weight | Maximum Conductor Resistance 20°C |
|---|---|---|---|---|
| mm² | No/mm | mm | kg/km | Ω/km |
| 2×0.5 | 19/0.18 | 3.84 | 34.0 | 40.1 |
| 3×0.5 | 19/0.18 | 3.97 | 42.5 | 40.1 |
| 4×0.5 | 19/0.18 | 4.60 | 53.5 | 40.1 |
| 5×0.5 | 19/0.18 | 4.82 | 68.1 | 40.1 |
| 6×0.5 | 19/0.18 | 5.06 | 70.5 | 40.1 |
| 7×0.5 | 19/0.18 | 5.40 | 79.0 | 40.1 |
| 8×0.5 | 19/0.18 | 5.96 | 90.5 | 40.1 |
| 2×0.75 | 19/0.23 | 4.14 | 39.0 | 26.7 |
| 3×0.75 | 19/0.23 | 4.71 | 53.5 | 26.7 |
| 4×0.75 | 19/0.23 | 5.16 | 66.0 | 26.7 |
| 5×0.75 | 19/0.23 | 5.56 | 77.8 | 26.7 |
| 6×0.75 | 19/0.23 | 5.76 | 92.8 | 26.7 |
| 7×0.75 | 19/0.23 | 6.15 | 104.0 | 26.7 |
| 8×0.75 | 19/0.23 | 6.76 | 117.0 | 26.7 |
| 2×1.0 | 19/0.26 | 4.38 | 45.0 | 20.0 |
| 3×1.0 | 19/0.26 | 5.00 | 63.0 | 20.0 |
| 4×1.0 | 19/0.26 | 5.51 | 77.5 | 20.0 |
| 5×1.0 | 19/0.26 | 5.96 | 93.0 | 20.0 |
| 6×1.0 | 19/0.26 | 6.26 | 111.5 | 20.0 |
| 7×1.0 | 19/0.26 | 6.60 | 126.0 | 20.0 |
| 8×1.0 | 19/0.26 | 7.36 | 143.0 | 20.0 |
| 2×1.5 | 19/0.32 | 5.04 | 52.5 | 13.7 |
| 3×1.5 | 19/0.32 | 5.88 | 82.5 | 13.7 |
| 4×1.5 | 19/0.32 | 6.14 | 105.5 | 13.7 |
| 5×1.5 | 19/0.32 | 6.96 | 120.0 | 13.7 |
| 6×1.5 | 19/0.32 | 7.56 | 144.75 | 13.7 |
| 7×1.5 | 19/0.32 | 7.80 | 164.5 | 13.7 |
| 8×1.5 | 19/0.32 | 8.46 | 185.0 | 13.7 |
| 2×2.0 | 19/0.37 | 6.10 | 63.7 | 10.0 |
| 3×2.0 | 19/0.37 | 6.41 | 94.7 | 10.0 |
| 4×2.0 | 19/0.37 | 7.14 | 122.5 | 10.0 |
| 5×2.0 | 19/0.37 | 8.14 | 152.2 | 10.0 |
| 6×2.0 | 19/0.37 | 8.65 | 181.9 | 10.0 |
| 7×2.0 | 19/0.37 | 8.86 | 210.7 | 10.0 |
| 8×2.0 | 19/0.37 | 9.56 | 240.4 | 10.0 |
| 2×2.5 | 19/0.41 | 6.60 | 77.5 | 8.21 |
| 3×2.5 | 19/0.41 | 7.16 | 118.0 | 8.21 |
| 4×2.5 | 19/0.41 | 8.06 | 142.5 | 8.21 |
| 5×2.5 | 19/0.41 | 9.06 | 169.0 | 8.21 |
| 6×2.5 | 19/0.41 | 9.77 | 213.2 | 8.21 |
| 7×2.5 | 19/0.41 | 10.26 | 240.0 | 8.21 |
| 8×2.5 | 19/0.41 | 11.26 | 280.0 | 8.21 |
| 2×4.0 | 19/0.52 | 7.70 | 111.0 | 5.00 |
| 3×4.0 | 19/0.52 | 8.21 | 160.65 | 5.00 |
