    Integrated 9/11/18/20 Cores 0.75mmsq UIC Databus Cables

    FRL-UIC-4G10+2G6+1G2.5+2G0.75

    FRL-UIC-4G10+2G6+1G2.5+2G1+2G0.75

    FRL-UIC-4Q1S+2G0.75/FRL-UIC-4Q1S+2P0.75S

    • Integrated 9/11/18/20 Cores 0.75mmsq UIC Databus Cables
    • Integrated 9/11/18/20 Cores 0.75mmsq UIC Databus Cables
    • Integrated 9/11/18/20 Cores 0.75mmsq UIC Databus Cables
    • Integrated 9/11/18/20 Cores 0.75mmsq UIC Databus Cables

    Application

    The cables are used as connecting cables to transmit digital signals inside railway rolling stocks.

    Construction

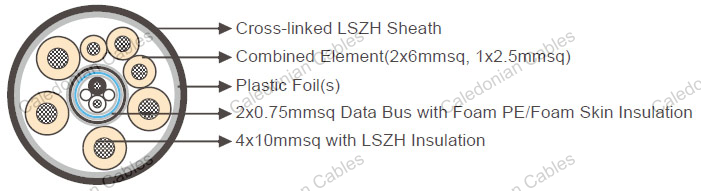

    For 9 cores UIC databus cables :

    4 cores 10 mm² stranded tinned copper conductor with LSZH insulation.
    Combined Element 3 cores (with Cu-strand 2 x 6mm², 1 x 2.5mm²) are twisted with a filling element to a combined element.
    Core Wrapping Overlapped plastic-foil(s)
    Elements sheaths TPE
    UIC Data Bus 0.75mm² Two foam PE or foam skin insulated tinned copper stranded conductors are twisted together with two filling elements to a pair.
    Core Wrapping Overlapped plastic-foil(s)
    Screen Tin plated copper braid
    Elements sheaths TPE
    Core Wrapping Overlapped plastic-foil(s)
    Stranding 4 strands are twisted to a core together with 3 cored element, the UIC data bus and two fillers
    Core Wrapping Overlapped plastic-foil(s)
    Outer Sheath Cross-linked oil resistant LSZH compound

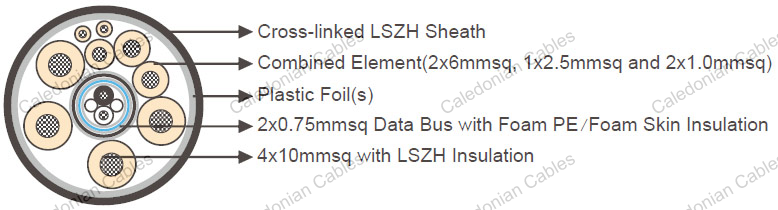

    For 11 cores UIC databus cables :

    4 cores 10 mm² stranded tinned copper conductor with LSZH insulation
    Combined Element 5 cores (with Cu-strand 2 x 6mm², 1 x 2.5mm² and 2 x 1.0 mm²) are twisted with a filling element to form a combined element.
    Core Wrapping Overlapped plastic-foil(s)
    Elements sheaths TPE
    UIC Data Bus 0.75mm² Two foam PE or foam skin insulated tinned copper r stranded conductors are twisted together with two filling elements to a pair
    Core Wrapping Overlapped plastic-foil(s)
    Screen Tin plated copper braid
    Elements sheaths TPE
    Core Wrapping Overlapped plastic-foil(s)
    Stranding 4 strands are twisted to a core together with 5 cored element, the UIC data bus and two fillers
    Core Wrapping Overlapped plastic-foil(s)
    Outer Sheath Cross-linked oil resistant LSZH compound

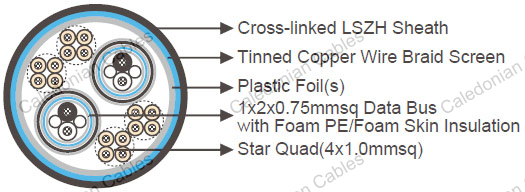

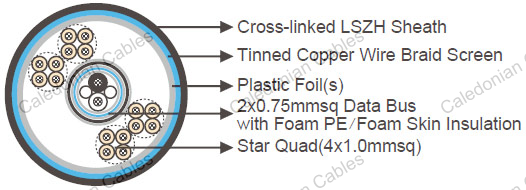

    For 18/20 cores UIC databus cables :

    Star Quad Four LSZH insulated 1mm² stranded tinned copper conductors are twisted to form a star quad
    UIC Data Bus 0.75mm² Two foam PE or foam skin insulated tinned copper stranded conductors are twisted together with two filling elements to form a pair
    Core Wrapping Overlapped plastic-foil(s)
    Screen Tin plated copper braid
    Elements sheaths TPE
    Core Wrapping Overlapped plastic-foil(s)
    Stranding 4 star quads are stranded together with 2 or 4 UIC data bus cable and several fillers
    Core Wrapping Overlapped plastic-foil(s)
    Screen Tin plated copper braid
    Outer Sheath Cross-linked oil resistant LSZH compound

    Electrical & Mechanical Properties

    Nominal Voltage 300V
    Maximum Temperature 90°C
    Minimum Temperature -40°C
    Bending Radius 12 x Overall Diameter

    Chemical & Environmental Propertie

    EN 60684-2 No fluorine
    EN 50305; EN 60811-2-1 Resistance to mineral oil & fuel oil, acid & alkali
    EN 50305 Resistance to ozone

    Fire Performance for rolling stock application

    EN 50306-2 Hazard levels HL1, HL2, HL3
    DIN 5510-2 Protection level 1/2/3/4
    BS 6853 Interior use 1a, 1b, II; Exterior use 1a, 1b, II
    NF F 16-101 F0
    EN54454-2 R15 Interior/ R16 Exterior HL1, HL2, HL3

    Fire Performance in General

    EN 50265-2-1; IEC 60332-1-2; NF C 32-070 2.1 (C2) Vertical flame propogation for a single insulated wire or cable
    EN 50266-2-4 + EN 50305; IEC 60332-3-24; NF C 32-070 2.2 (C1); VDE 0472 Teil 804 Vertical flame spread of vertically mounted bunched wires or cables
    EN 50268-2; IEC 61034-2; NF C 32-073 ;  NF C 20-902; NF F 16 101; VDE 0472 Teil 816 Low Smoke Emission
    EN 50267-2-1; IEC 60754-1; NF C 32-074;  NF C 20-454; VDE 0472 Teil 815 Halogen Free
    EN 50267-2-2/3; IEC 60754-2; NF C 32-074; NF C 20-453; VDE 0472 Teil 813 Low Corrosivity (Acidity & Conductivity)
    EN 50305; NF X 70-100; NF F 63 808; TM1-04; BS6853  Low Toxicity
    NF F 63 808; BS6853; NF F 16 101 Smoke index
    EN45545-2 Requirement for fire behavior of materials & components R15/R16

    FRL-UIC-4G10+2G6+1G2.5+2G0.75

    Nominal Cross Sectional Area Number & Nominal Diameter of Strands Nominal Sheath Thickness Nominal Overall Diameter Nominal Weight Max. Conductor Resistance Impedance Max. Attenuation
    20°C @0.75-3MHz @1MHz @1.5MHz @2MHz @3MHz
    mm² No/mm mm mm kg/km Ω/km Ω dB/km dB/km dB/km dB/km
    0.75 19/0.22 1.8 25 917 26.7 120+/-12 10 13 14 18
    10 80/0.4 1.95 - - - - -
    6 84/0.3 3.39 - - - - -
    2.5 37/0.29 8.21 - - - - -

    FRL-UIC-4G10+2G6+1G2.5+2G1+2G0.75

    Nominal Cross Sectional Area Number & Nominal Diameter of Strands Nominal Sheath Thickness Nominal Overall Diameter Nominal Weight Max. Conductor Resistance Impedance Max. Attenuation
    20°C @0.75-3MHz @1MHz @1.5MHz @2MHz @3MHz
    mm² No/mm mm mm kg/km Ω/km Ω dB/km dB/km dB/km dB/km
    0.75 19/0.22 1.8 25 969 26.7 120+/-12 10 13 14 18
    10 80/0.4 1.95 - - - - -
    6 84/0.3 3.39 - - - - -
    2.5 37/0.29 8.21 - - - - -

    FRL-UIC-4Q1S+2G0.75

    Nominal Cross Sectional Area Number & Nominal Diameter of Strands Nominal Sheath Thickness Nominal Overall Diameter Nominal Weight Max. Conductor Resistance Impedance Max. Attenuation
    20°C @0.75-3MHz @1MHz @1.5MHz @2MHz @3MHz
    mm² No/mm mm mm kg/km Ω/km Ω dB/km dB/km dB/km dB/km
    0.75 19/0.22 1.8 18.5 498 26.7 120+/-12 10 13 14 18
    1 19/0.25 20 - - - - -

    FRL-UIC-4Q1S+2P0.75S

    Nominal Cross Sectional Area Number & Nominal Diameter of Strands Nominal Sheath Thickness Nominal Overall Diameter Nominal Weight Max. Conductor Resistance Impedance Max. Attenuation
    20°C @0.75-3MHz @1MHz @1.5MHz @2MHz @3MHz
    mm² No/mm mm mm kg/km Ω/km Ω dB/km dB/km dB/km dB/km
    0.75 19/0.22 1.5 23 530 26.7 120+/-12 10 13 14 18
    1 19/0.25 20 - - - - -
