FIREROL Thin Wall Single Core Screened & Sheathed Cables 300/500 V

EN 50306-3 (FRL-TW-05S-OS)

Application

-Used as signal and control cable for protected installations inside and outside of rail and transport vehicles, where space and weight are an important factor.

-Used in cable harnesses, switchboards and control panels, driver desks etc.

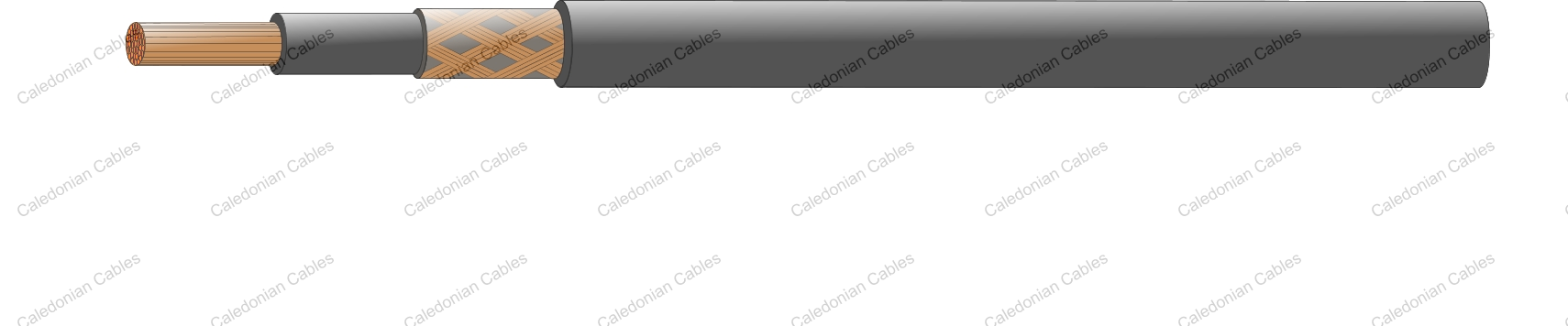

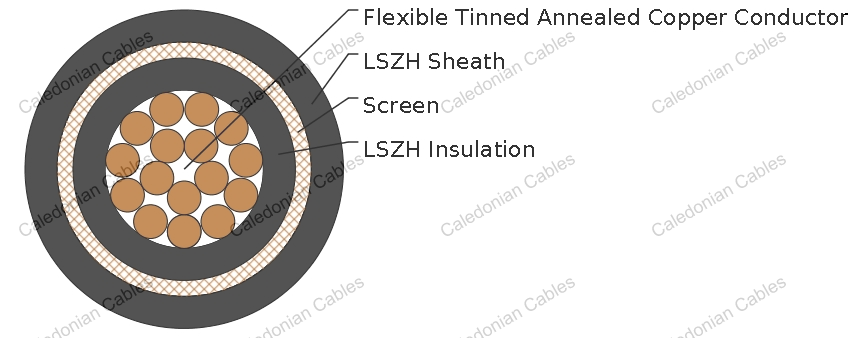

Construction

Conductor	Tinned annealed copper wires as defined in EN 50306-2
Insulation	LSZH special compound
Overal Screen	Tinned annealed copper wires
Outer Sheath	LSZH special compound (S1 & S2)

Electrical & Mechanical Properties

Nominal Voltage	300/500 V
Max. Conductor Temperature	90°C /105°C (fixed installation)
Min. Permissible Ambient Temperature	-25°C/-40°C (fixed installation)
Bending Radius	10 x Overall Diameter (fixed installation)

Chemical & Environmental Propertie

EN 60684-2	No fluorine
EN 50305; EN 60811-2-1	Resistance to mineral oil & fuel oil, acid & alkali
EN 50305	Resistance to ozone

Fire Performance for rolling stock application

EN 50306-2	Hazard levels HL1, HL2, HL3
DIN 5510-2	Protection level 1/2/3/4
BS 6853	Interior use 1a, 1b, II; Exterior use 1a, 1b, II
NF F 16-101	F0
EN54454-2	R15 Interior/ R16 Exterior HL1, HL2, HL3

Fire Performance in General

EN 50265-2-1; IEC 60332-1-2; NF C 32-070 2.1 (C2)	Vertical flame propogation for a single insulated wire or cable
EN 50266-2-4 + EN 50305; IEC 60332-3-24; NF C 32-070 2.2 (C1); VDE 0472 Teil 804	Vertical flame spread of vertically mounted bunched wires or cables
EN 50268-2; IEC 61034-2; NF C 32-073 ; NF C 20-902; NF F 16 101; VDE 0472 Teil 816	Low Smoke Emission
EN 50267-2-1; IEC 60754-1; NF C 32-074; NF C 20-454; VDE 0472 Teil 815	Halogen Free
EN 50267-2-2/3; IEC 60754-2; NF C 32-074; NF C 20-453; VDE 0472 Teil 813	Low Corrosivity (Acidity & Conductivity)
EN 50305; NF X 70-100; NF F 63 808; TM1-04; BS6853	Low Toxicity
NF F 63 808; BS6853; NF F 16 101	Smoke index
EN45545-2	Requirement for fire behavior of materials & components R15/R16

FRL-TW-05S-OS 300/500 V

Number of Cores x Nominal Cross Section	Min. Thickness of Sheath at any Point	Overall Diameter		Weight
Number of Cores x Nominal Cross Section	Min. Thickness of Sheath at any Point	Min.	Max.	Weight
n x mm²	mm	mm	mm	kg/km
1 x 0.5	0.20	2.3	2.8	10
1 x 0.75	0.20	2.5	3.0	20
1 x 1	0.20	2.7	3.2	25
1 x 1.5	0.20	3.1	3.6	30
1 x 2.5	0.20	3.6	4.4	40
