    FIREROL Thin Wall Multicore Overall Screened Cables with Exposed Standard Wall Sheath 300/500V

    EN 50306-4 (FRL-TW-05M-ESW-OS)

    Application

    -Used as signal and control cable for protected installations inside and outside of rail and transport vehicles, where space and weight are an important factor.

    -Used in cable harnesses, switchboards and control panels, driver desks etc.

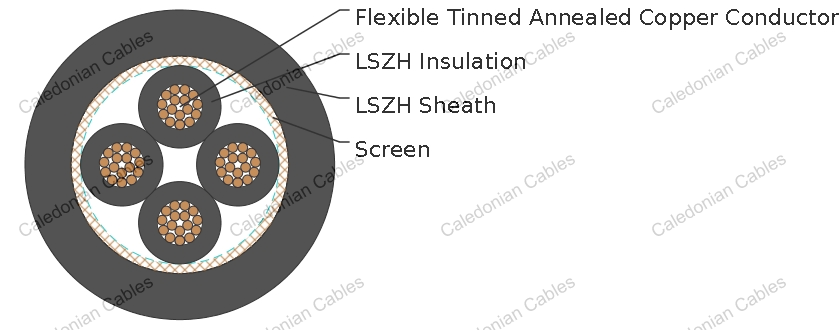

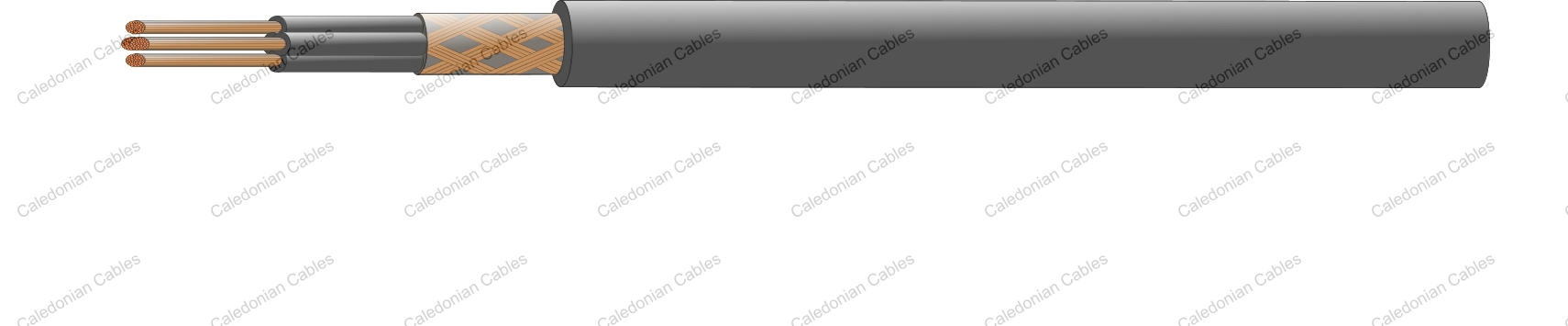

    Construction

    Conductor Tinned annealed copper wires as defined in EN 50306-2
    Insulation LSZH special compound
    Overal Screen Tinned annealed copper wires
    Outer Sheath LSZH special compound as defined in EN 50264-1 (S2. EM 101 - EM 104)

    Electrical & Mechanical Properties

    Nominal Voltage 300/500 V
    Max. Conductor Temperature 90°C /105°C (fixed installation)
    Min. Permissible Ambient Temperature -25°C/-40°C (fixed installation)
    Bending Radius 10 x Overall Diameter

    Chemical & Environmental Propertie

    EN 60684-2 No fluorine
    EN 50305; EN 60811-2-1 Resistance to mineral oil & fuel oil, acid & alkali
    EN 50305 Resistance to ozone

    Fire Performance for rolling stock application

    EN 50306-2 Hazard levels HL1, HL2, HL3
    DIN 5510-2 Protection level 1/2/3/4
    BS 6853 Interior use 1a, 1b, II; Exterior use 1a, 1b, II
    NF F 16-101 F0
    EN54454-2 R15 Interior/ R16 Exterior HL1, HL2, HL3

    Fire Performance in General

    EN 50265-2-1; IEC 60332-1-2; NF C 32-070 2.1 (C2) Vertical flame propogation for a single insulated wire or cable
    EN 50266-2-4 + EN 50305; IEC 60332-3-24; NF C 32-070 2.2 (C1); VDE 0472 Teil 804 Vertical flame spread of vertically mounted bunched wires or cables
    EN 50268-2; IEC 61034-2; NF C 32-073 ;  NF C 20-902; NF F 16 101; VDE 0472 Teil 816 Low Smoke Emission
    EN 50267-2-1; IEC 60754-1; NF C 32-074;  NF C 20-454; VDE 0472 Teil 815 Halogen Free
    EN 50267-2-2/3; IEC 60754-2; NF C 32-074; NF C 20-453; VDE 0472 Teil 813 Low Corrosivity (Acidity & Conductivity)
    EN 50305; NF X 70-100; NF F 63 808; TM1-04; BS6853  Low Toxicity
    NF F 63 808; BS6853; NF F 16 101 Smoke index
    EN45545-2 Requirement for fire behavior of materials & components R15/R16

    FRL-TW-05M-ESW-OS 300/500 V

    Number of Cores x Nominal Cross Section Min. Thickness of Sheath at any Point Overall Diameter Weight
    Min. Max.
    n x mm² mm mm mm kg/km
    2 x 0.5 1.0 5.5 6.5 50
    3 x 0.5 1.0 5.7 6.7 55
    4 x 0.5 1.0 6.1 7.1 60
    6 x 0.5 1.0 6.9 7.9 90
    8 x 0.5 1.0 7.5 8.5 110

    2 x 0.75 1.0 5.9 6.9 60
    3 x 0.75 1.0 6.2 7.2 70
    4 x 0.75 1.0 6.5 7.5 80
    6 x 0.75 1.0 7.5 8.5 110
    8 x 0.75 1.0 8.2 9.2 130

    2 x 1.0 1.0 6.2 7.2 60
    3 x 1.0 1.0 6.5 7.5 80
    4 x 1.0 1.0 6.9 7.9 90
    6 x 1.0 1.0 8.0 9.0 130
    8 x 1.0 1.0 8.6 9.8 160

    2 x 1.5 1.0 7.1 8.1 90
    3 x 1.5 1.0 7.4 8.4 110
    4 x 1.5 1.0 8.0 9.0 130
    6 x 1.5 1.0 9.2 10.4 170
    8 x 1.5 1.0 10.2 11.4 220

    2 x 2.5 1.0 8.3 9.3 120
    3 x 2.5 1.0 8.6 9.8 150
    4 x 2.5 1.0 9.4 10.6 180
