    FIREROL Standard Wall Single Core Unsheathed Cables 0.6/1 kV or 1.8/3 kV

    EN 50264-2-1 (FRL-SW-1SU, FRL-SW-3SU)

    • FRL-SW-1SU
    • FRL-SW-1SU

    Application

    -Used as power and control cable for protected installations inside and outside of rail and transport vehicles, where handling andinstallation cost are an important factor.

    -Used in control, auxillary and main circuit wiring such as cable harnesses, switchboards and control panels, driver desks etc.

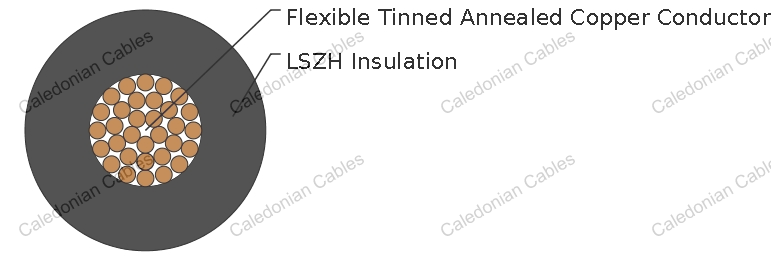

    Construction

    Conductor Flexible tinned annealed copper wires, stranded as per HD 383 (IEC 60228) class 5
    Insulation LSZH elastomeric compound as defined in EN 50264-1 (EI 101 to EI 104)

    Electrical & Mechanical Properties

    Nominal Voltage 0.6/1 kV or 1.8/3 kV
    Maximum Conductor Temperature 90°C ( fixed installation )
    Minimum Permissible Ambient Temperature -25°C/-40°C ( fixed installation )
    Bending Radius 3 x Overall Diameter (D<12mm)
    4 x Overall Diameter (D>12mm)

    Chemical & Environmental Properties

    EN 60684-2 No fluorine
    EN 50305; EN 60811-2-1 Resistance to mineral oil & fuel oil, acid & alkali
    EN 50305 Resistance to ozone

    Fire Performance for Rolling Stock Application

    EN 50306-2 Hazard levels HL1, HL2, HL3
    DIN 5510-2 Protection level 1/2/3/4
    BS 6853 Interior use 1a, 1b, II; Exterior use 1a, 1b, II
    NF F 16-101 F0
    EN45545-2 R15 Interior/ R16 Exterior HL1, HL2, HL3

    Fire Performance in General

    EN 50265-2-1; IEC 60332-1-2; NF C 32-070 2.1 (C2) Vertical flame propogation for a single insulated wire or cable
    EN 50266-2-4 + EN 50305; IEC 60332-3-24; NF C 32-070 2.2 (C1); VDE 0472 Teil 804 Vertical flame spread of vertically mounted bunched wires or cables
    EN 50268-2; IEC 61034-2; NF C 32-073 ;  NF C 20-902; NF F 16 101; VDE 0472 Teil 816 Low Smoke Emission
    EN 50267-2-1; IEC 60754-1; NF C 32-074;  NF C 20-454; VDE 0472 Teil 815 Halogen Free
    EN 50267-2-2/3; IEC 60754-2; NF C 32-074; NF C 20-453; VDE 0472 Teil 813 Low Corrosivity (Acidity & Conductivity)
    EN 50305; NF X 70-100; NF F 63 808; TM1-04; BS6853 Low Toxicity
    NF F 63 808; BS6853; NF F 16 101 Smoke index
    EN45545-2 Requirement for fire behavior of materials & components R15/R16

    FRL-SW-1SU 0.6/1 kV

    Nominal Cross-Sectional Area Conductor Diameter (a) Min. Mean Thickness of Insulation Overall Diameter Weight Max. Conductor Resistance Min. Insulation Resistance
    min max 20°C 20°C 90°C
    mm² mm mm mm mm kg/km Ω/km MΩ x km MΩ x km
    1.0 1.25 0.8 2.8 3.2 18 20 65 0.65
    1.5 1.5 0.8 3.0 3.5 20 13.7 55 0.55
    2.5 1.95 0.8 3.4 3.9 30 8.21 50 0.5
    4.0 2.5 0.8 3.9 4.6 50 5.09 40 0.4
    6.0 3.0 0.9 4.6 5.4 70 3.39 35 0.35
    10 3.9 1.1 5.8 6.8 130 1.95 30 0.3
    16 5.0 1.1 7.2 8.5 170 1.24 30 0.3
    25 6.4 1.3 8.6 10.0 260 0.795 30 0.3
    35 7.7 1.3 10.2 11.5 350 0.565 25 0.25
    50 9.2 1.5 11.6 13.5 500 0.393 25 0.25
    70 11.0 1.5 13.3 15.5 690 0.277 20 0.2
    95 12.5 1.6 14.9 17.4 910 0.210 20 0.2
    120 14.2 1.6 16.5 19.3 1120 0.164 20 0.2
    150 15.8 1.9 18.5 21.7 1430 0.132 15 0.15
    185 17.5 1.9 20.1 23.6 1720 0.108 15 0.15
    240 20.1 2.1 22.9 25.8 2290 0.0817 15 0.15
    300 22.5 2.2 25.4 29.7 2810 0.0654 10 0.1
    400 25.8 2.3 28.7 33.6 3690 0.0495 10 0.1

    FRL-SW-3SU 1.8/3 kV

    Nominal Cross-Sectional Area Conductor Diameter (a) Min. Mean Thickness of Insulation Overall Diameter Weight Maxi. Conductor Resistance Min. Insulation Resistance
    min max 20℃ 20°C 90°C
    mm² mm mm mm mm kg/km Ω/km MΩ x km MΩ x km
    1.5 1.5 2.5 6.2 7.3 70 13.70 120 1.2
    2.5 1.95 2.5 6.6 7.8 90 8.21 100 1.0
    4.0 2.5 2.5 7.1 8.4 110 5.09 90 0.9
    6.0 3.0 2.5 7.6 8.9 130 3.39 80 0.8
    10 3.9 2.5 8.4 9.9 190 1.95 65 0.65
    16 5.0 2.5 9.5 11.1 250 1.24 55 0.55
    25 6.4 2.5 10.8 12.7 330 0.795 45 0.45
    35 7.7 2.5 12.0 14.1 430 0.565 40 0.4
    50 9.2 2.5 13.4 15.7 570 0.393 35 0.35
    70 11.0 2.5 15.1 17.7 760 0.277 30 0.3
    95 12.5 2.7 16.9 19.8 980 0.210 30 0.3
    120 14.2 2.7 18.5 21.7 1210 0.164 25 0.25
    150 15.8 2.7 20.0 23.4 1500 0.132 20 0.2
    185 17.5 2.7 21.6 25.3 1800 0.1080 20 0.2
    240 20.1 2.7 24.1 28.2 2360 0.0817 20 0.2
    300 22.5 2.7 26.3 30.8 2840 0.0654 15 0.15
    400 25.8 2.9 29.8 34.9 3800 0.0495 15 0.15

    (a) = for information, indicative only
