Application
The cables are designed for permanently protected installation, inside and outside railway rolling stock, buses and other vehicles to connect fixed parts. Ethernet based networks as: infotainment, multimedia, passenger information system etc.

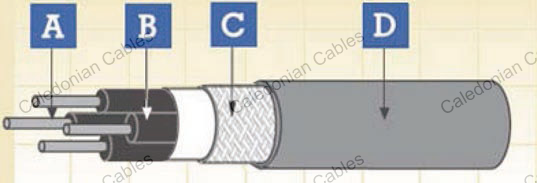

Construction
For 4 x 0.5mm², 4 x 22AWG cables :
| Conductors |
Stranded tin plated copper conductor (for 0.5mm² cables) or stranded silver plated copper conductor (for 22AWG cables) according to IEC 60228 class 5. |
| Insulation |
PE. |
| Cable Element |
Individual conductor stranded together. |
| EMC Screen1 |
Plastic laminated aluminium-tape. |
| EMC Screen2 |
Tin plated copper braid. |
| Core Wrapping |
Plastic tape(s). |
| Outer Sheath |
Electron beam crosslinkable compound. |
For 4 x 2 x 22AWG cables :
| Center |
PE filler. |
| 4 pairs 2 x 22AWG |
Stranded tin plated copper conductor according to IEC 60228 class 5. |
| Insulation |
PE. |
| EMC Screen1 |
Plastic laminated aluminium-tape. |
| EMC Screen2 |
Tin plated copper braid. |
| Core Wrapping |
Plastic tape(s). |
| Outer Sheath |
Electron beam crosslinkable compound. |
Electrical & Mechanical Properties
| Nominal Voltage |
300V |
| Max. Temperature |
90°C |
| Min. Temperature |
-40°C |
| Bending Radius |
6 x Overall Diameter |
Chemical & Environmental Propertie
| EN 60684-2 |
No fluorine |
| EN 50305; EN 60811-2-1 |
Resistance to mineral oil & fuel oil, acid & alkali |
| EN 50305 |
Resistance to ozone |
Fire Performance for rolling stock application
| EN 50306-2 |
Hazard levels HL1, HL2, HL3 |
| DIN 5510-2 |
Protection level 1/2/3/4 |
| BS 6853 |
Interior use 1a, 1b, II; Exterior use 1a, 1b, II |
| NF F 16-101 |
F0 |
| EN54454-2 |
R15 Interior/ R16 Exterior HL1, HL2, HL3 |
Fire Performance in General
| EN 50265-2-1; IEC 60332-1-2; NF C 32-070 2.1 (C2) |
Vertical flame propogation for a single insulated wire or cable |
| EN 50266-2-4 + EN 50305; IEC 60332-3-24; NF C 32-070 2.2 (C1); VDE 0472 Teil 804 |
Vertical flame spread of vertically mounted bunched wires or cables |
| EN 50268-2; IEC 61034-2; NF C 32-073 ; NF C 20-902; NF F 16 101; VDE 0472 Teil 816 |
Low Smoke Emission |
| EN 50267-2-1; IEC 60754-1; NF C 32-074; NF C 20-454; VDE 0472 Teil 815 |
Halogen Free |
| EN 50267-2-2/3; IEC 60754-2; NF C 32-074; NF C 20-453; VDE 0472 Teil 813 |
Low Corrosivity (Acidity & Conductivity) |
| EN 50305; NF X 70-100; NF F 63 808; TM1-04; BS6853 |
Low Toxicity |
| NF F 63 808; BS6853; NF F 16 101 |
Smoke index |
| EN45545-2 |
Requirement for fire behavior of materials & components R15/R16 |
FRL-Cat5E-4C0.5S
| Nominal Cross Sectional Area |
Nominal Sheath Thickness |
Nominal Overall Diameter |
Nominal Weight |
Max. Conductor Resistance |
Max. Resistance Unbalance |
Characteristic Impedance |
Transfer Impedance |
Max. Capacitance |
| 20°C |
@100MHz |
f≤30MHz |
core to core |
Core to screen |
| mm² |
mm |
mm |
kg/km |
Ω/km |
Ω/km |
Ω |
mΩ/m |
pF/m |
pF/m |
| 0.5 |
1.2 |
8.3 |
102 |
40.1 |
1.1 |
100+/-5 |
200 |
65 |
100 |
FRL-Cat5E-4C22A
| Nominal Cross Sectional Area |
Nominal Sheath Thickness |
Nominal Overall Diameter |
Nominal Weight |
Max. Conductor Resistance |
Max. Resistance Unbalance |
Characteristic Impedance |
Transfer Impedance |
Max. Capacitance |
| 20°C |
@100MHz |
f≤30MHz |
core to core |
Core to screen |
| AWG |
mm |
mm |
kg/km |
Ω/km |
Ω/km |
Ω |
mΩ/m |
pF/m |
pF/m |
| 22 |
1.2 |
7.25 |
81 |
54.4 |
1.1 |
100+/-5 |
200 |
65 |
100 |
FRL-Cat5E-4P22A
| Nominal Cross Sectional Area |
Nominal Sheath Thickness |
Nominal Overall Diameter |
Nominal Weight |
Max. Conductor Resistance |
Max. Resistance Unbalance |
Characteristic Impedance |
Transfer Impedance |
Max. Capacitance |
| 20°C |
@100MHz |
f≤30MHz |
core to core |
Core to screen |
| AWG |
mm |
mm |
kg/km |
Ω/km |
Ω/km |
Ω |
mΩ/m |
pF/m |
pF/m |
| 22 |
1.2 |
12.6 |
174 |
54.4 |
1.1 |
100+/-5 |
200 |
65 |
100 |
