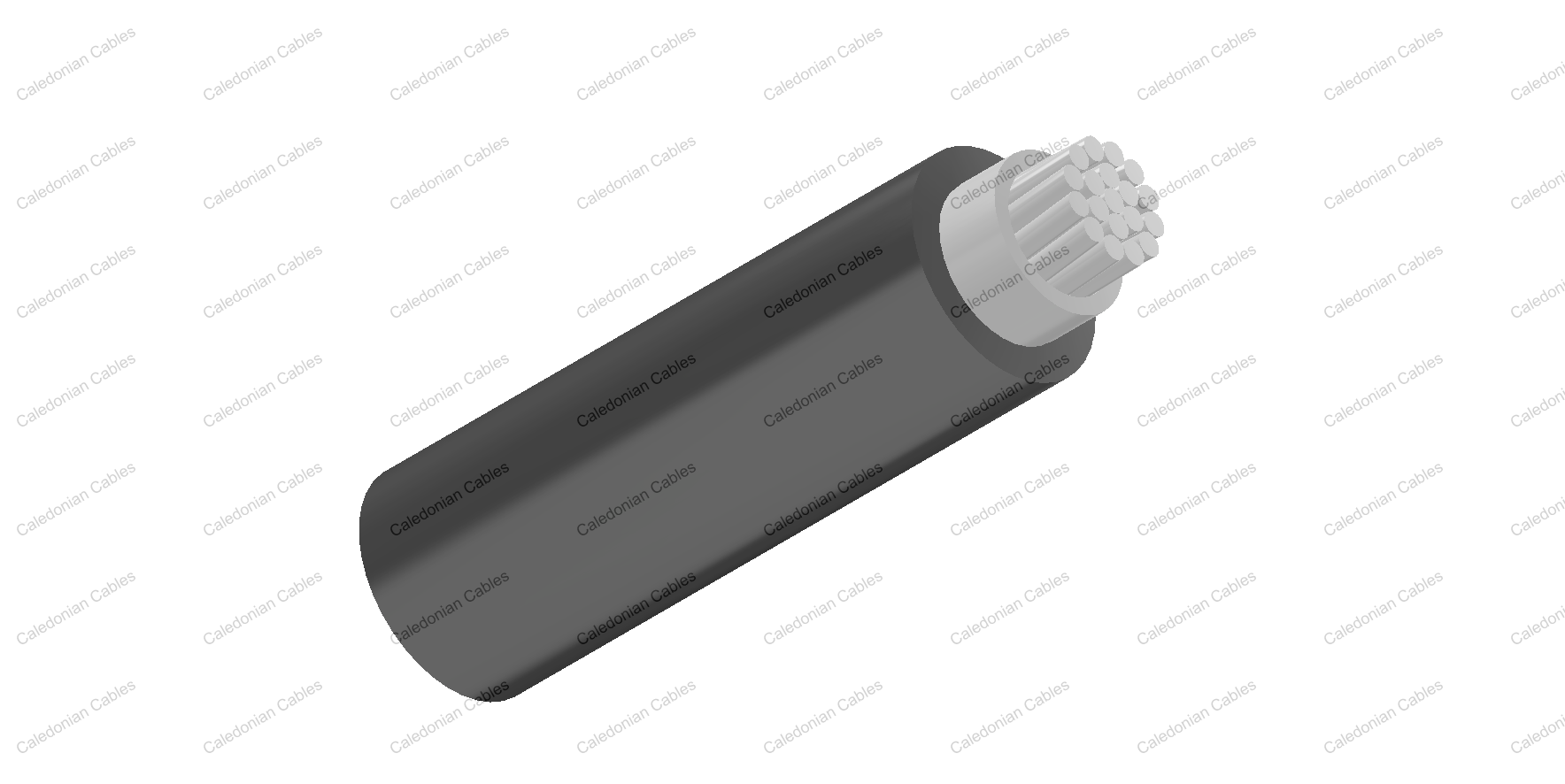

Pigtail Rail Connection Cables to SE260L

These connection cables are designed for use in signalling equipment rooms.

SE260

UNE 21123

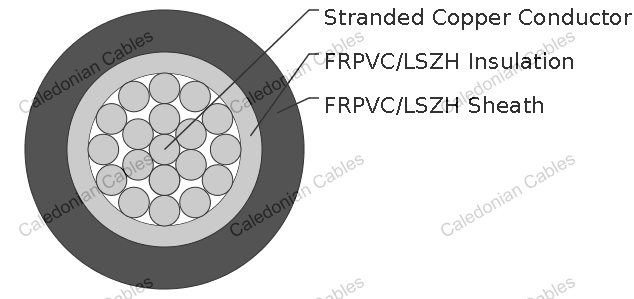

Electrical Characteristics at 20℃Conductors : Stranded plain copper conductors to IEC 60228 class 2 or 5.

Insulation : FRPVC.

Outer Sheath : FRPVC.

Limited fi re hazard pigtail rail connection cables : Stranded tinned copper conductors, LSZH composite insulation.

Nominal Conductor Cross Section	mm²	16
Maximum DC Conductor Resistance	Ω/km	1.15/1.16*
Voltage Rating	KV	0.6/1.0

*For LSZH cable

Minimum Bending Radius : 7.5×OD

Temperature Range : -25℃ to +85℃ (during operation); -10℃ to +70℃ (during installation)

Cable Code	No. of cores & Nominal Conductor Cross Sectional Area	No. & Nominal Diameter of Strands	Nominal Insulation Thickness	Nominal Sheath Thickness	Nominal Overall Diameter	Nominal Weight
Cable Code	No.×mm²	No/mm	mm	mm	mm	kg/km
RF260-VV-K-0.6/1KV-1G16	1×16	19/1.04	0.7	1.4	10.3	249
RF260-RZ1-K-0.6/1KV-1G16	1×16	19/1.04	0.7	1.4	10.3	255

K is changed to U if the stranding class is changed from class 5 to class 2
