    0.6/1KV Limited Fire Hazard/Fire Survival Multicore Armoured Cables to EME-SP-14-027

    Application

    The cables are designed for station range installation typically in public help points (PHP), public address (PA), station announcement platforms (SAP) & CCTV camera power systems. The LSZH cables has been designed to provide superior fl ame retardance and circuit integrity if necessary, suitable for installation where fire, smoke emission and toxi fumes may create a potential threat.

    Standard

    • EME SP 14 027 (LUL version of BS 6724 for fi re retardant version and BS 6387 for fire resisting version)
    • UNE 21123

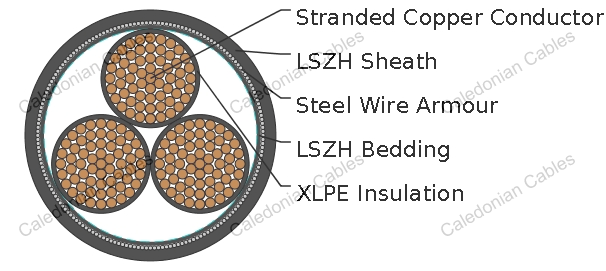

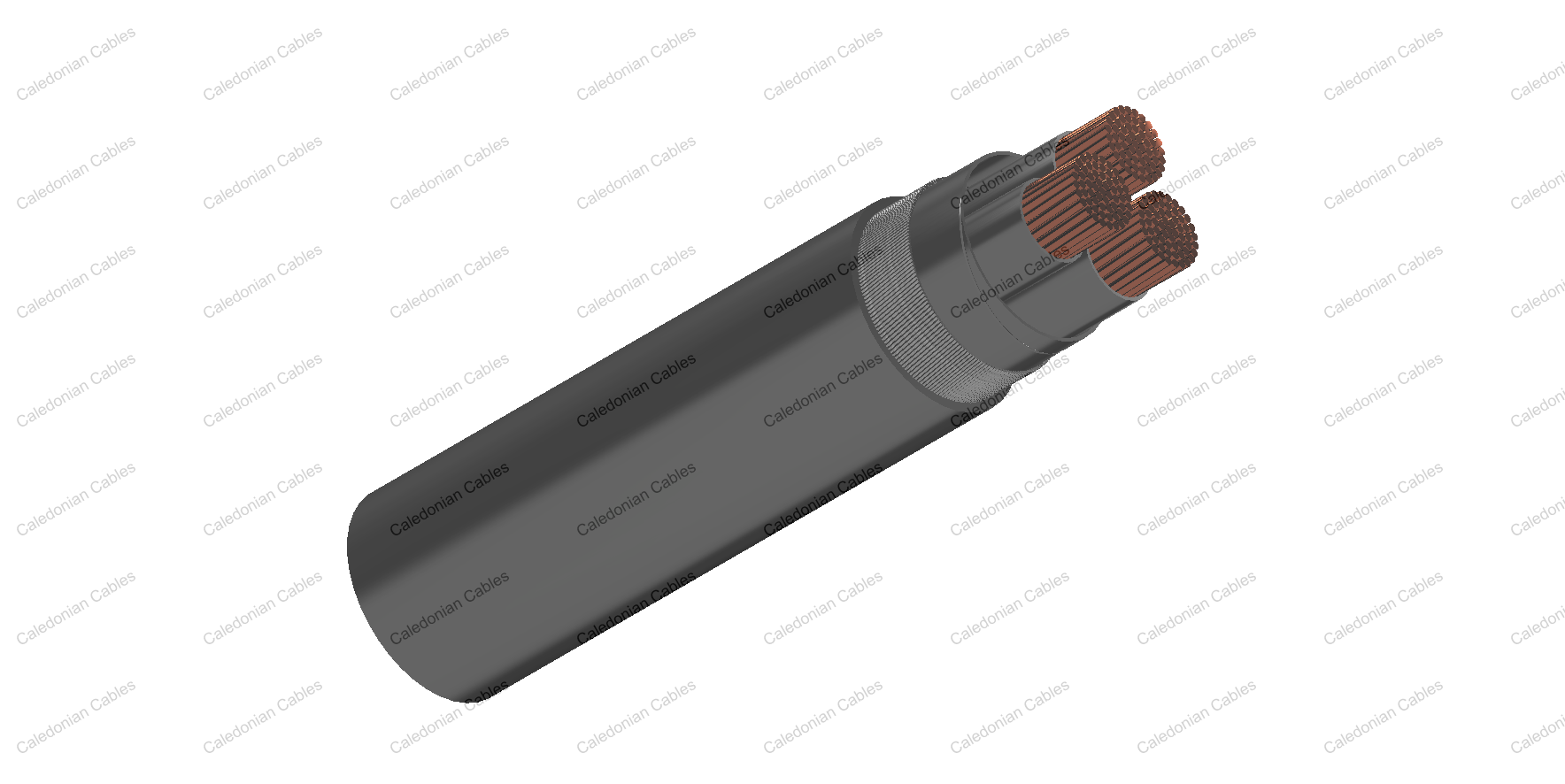

    Cable Construction

    • Electrical Characteristics at 20℃Conductors: Stranded plain copper conductors to IEC 60228 class 2 or 5.
    • Fire Barrier Tape (optional): Mica.
    • Insulation: XLPE insulation.
    • Bedding: LSZH bedding.
    • Armoured: SWA.
    • Outer Sheath: LSZH Sheath.
    Nominal Conductor Cross Section mm^2 2.5 4.0 6.0 10.0 16.0 25.0 35.0 50.0
    Maximum DC Conductor Resistance Ω/km 7.41 4.61 3.08 1.83 1.15 0.727 0.524 0.387
    Voltage Rating KV 0.45/0.75
    Nominal Conductor Cross Section mm^2 70.0 95 120 150 185 240 300
    Maximum DC Conductor Resistance Ω/km 0.268 0.193 0.153 0.124 0.0991 0.0754 0.0601
    Voltage Rating KV 0.45/0.75

    Mechanical and Thermal Properties

    • Miniumum Bending Radius: 8×OD
    • Operating Temperatures: 0℃ to +90℃ (during operation); 0℃ to +70℃ (during installation)

    Dimensions and Weight

    Cables without fire barrier tape

    Cable Code No. of cores& Nominal
    Conductor Cross
    Sectional Area
    No.×mm^2    		 No. & Nominal
    Diameter of
    Strands
    No/mm    		 Nominal
    Sheath
    Thickness
    mm    		 Nominal
    Overall
    Diameter
    mm    		 Nominal
    Weight
    kg/km
    RF14027-RZ1MZ1-U(AS)-0.6/1KV-2G2.5 2×2.5* 7/0.67 1.4 12.2 323
    RF14027-RZ1MZ1-U(AS)-0.6/1KV-2G4 2×4.0* 7/0.85 1.4 13.3 387
    RF14027-RZ1MZ1-U(AS)-0.6/1KV-2G6 2×6.0* 7/1.04 1.4 14.4 460
    RF14027-RZ1MZ1-U(AS)-0.6/1KV-2G10 2×10.0* 7/1.35 1.5 16.1 611
    RF14027-RZ1MZ1-U(AS)-0.6/1KV-2G16 2×16.0* 7/1.70 1.5 18.7 904
    RF14027-RZ1MZ1-U(AS)-0.6/1KV-2G25 2×25.0 7/2.14 1.6 21.0 1050
    RF14027-RZ1MZ1-U(AS)-0.6/1KV-2G35 2×35.0 19/1.53 1.7 22.0 1450
    RF14027-RZ1MZ1-U(AS)-0.6/1KV-2G50 2×50.0 19/1.78 1.8 24.0 1800
    RF14027-RZ1MZ1-U(AS)-0.6/1KV-2G70 2×70.0 19/2.14 1.9 27.0 2300
    RF14027-RZ1MZ1-U(AS)-0.6/1KV-2G95 2×95.0 37/1.78 2.0 32.0 3250
    RF14027-RZ1MZ1-U(AS)-0.6/1KV-2G120 2×120.0 37/2.03 2.1 35.0 3950
    RF14027-RZ1MZ1-U(AS)-0.6/1KV-2G150 2×150.0 37/2.25 2.2 38.0 4650
    RF14027-RZ1MZ1-U(AS)-0.6/1KV-2G185 2×185.0 37/2.52 2.4 43.0 6050
    RF14027-RZ1MZ1-U(AS)-0.6/1KV-2G240 2×240.0 61/2.25 2.5 49.0 7500
    RF14027-RZ1MZ1-U(AS)-0.6/1KV-2G300 2×300.0 61/2.52 2.6 54.0 9050
    RF14027-RZ1MZ1-U(AS)-0.6/1KV-3G2.5 3×2.5* 7/0.67 1.4 12.1 335
    RF14027-RZ1MZ1-U(AS)-0.6/1KV-3G4 3×4.0* 7/0.85 1.4 13.3 430
    RF14027-RZ1MZ1-U(AS)-0.6/1KV-3G6 3×6.0* 7/1.04 1.4 14.4 523
    RF14027-RZ1MZ1-U(AS)-0.6/1KV-3G10 3×10.0* 7/1.35 1.5 17.0 811
    RF14027-RZ1MZ1-U(AS)-0.6/1KV-3G16 3×16.0* 7/1.70 1.6 19.3 1072
    RF14027-RZ1MZ1-U(AS)-0.6/1KV-3G25 3×25.0 7/2.14 1.7 24.0 1750
    RF14027-RZ1MZ1-U(AS)-0.6/1KV-3G35 3×35.0 19/1.53 1.8 27.0 2000
    RF14027-RZ1MZ1-U(AS)-0.6/1KV-3G50 3×50.0 19/1.78 1.8 28.0 2450
    RF14027-RZ1MZ1-U(AS)-0.6/1KV-3G70 3×70.0 19/2.14 1.9 32.0 3250
    RF14027-RZ1MZ1-U(AS)-0.6/1KV-3G95 3×95.0 37/1.78 2.1 36.0 4500
    RF14027-RZ1MZ1-U(AS)-0.6/1KV-3G120 3×120.0 37/2.03 2.2 40.0 5350
    RF14027-RZ1MZ1-U(AS)-0.6/1KV-3G150 3×150.0 37/2.25 2.3 44.0 6900
    RF14027-RZ1MZ1-U(AS)-0.6/1KV-3G185 3×185.0 37/2.52 2.4 49.0 8200
    RF14027-RZ1MZ1-U(AS)-0.6/1KV-3G240 3×240.0 61/2.25 2.6 56.0 10350
    RF14027-RZ1MZ1-U(AS)-0.6/1KV-3G300 3×300.0 61/2.52 2.7 62.0 12600
    RF14027-RZ1MZ1-U(AS)-0.6/1KV-4G2.5 4×2.5* 7/0.67 1.4 13.6 406
    RF14027-RZ1MZ1-U(AS)-0.6/1KV-4G4 4×4.0* 7/0.85 1.4 14.9 505
    RF14027-RZ1MZ1-U(AS)-0.6/1KV-4G6 4×6.0* 7/1.04 1.5 17.1 737
    RF14027-RZ1MZ1-U(AS)-0.6/1KV-4G10 4×10.0* 7/1.35 1.5 18.9 969
    RF14027-RZ1MZ1-U(AS)-0.6/1KV-4G16 4×16.0* 7/1.70 1.6 21.5 1303
    RF14027-RZ1MZ1-U(AS)-0.6/1KV-4G25 4×25.0 7/2.14 1.7 27.0 2100
    RF14027-RZ1MZ1-U(AS)-0.6/1KV-4G35 4×35.0 19/1.53 1.8 29.0 2450
    RF14027-RZ1MZ1-U(AS)-0.6/1KV-4G50 4×50.0 19/1.78 1.9 32.0 3100
    RF14027-RZ1MZ1-U(AS)-0.6/1KV-4G70 4×70.0 19/2.14 2.1 37.0 4400
    RF14027-RZ1MZ1-U(AS)-0.6/1KV-4G95 4×95.0 37/1.78 2.2 41.0 5650
    RF14027-RZ1MZ1-U(AS)-0.6/1KV-4G120 4×120.0 37/2.03 2.3 46.0 7300
    RF14027-RZ1MZ1-U(AS)-0.6/1KV-4G150 4×150.0 37/2.25 2.4 51.0 8700
    RF14027-RZ1MZ1-U(AS)-0.6/1KV-4G185 4×185.0 37/2.52 2.6 55.0 10450
    RF14027-RZ1MZ1-U(AS)-0.6/1KV-4G240 4×240.0 61/2.25 2.7 63.0 13250
    RF14027-RZ1MZ1-U(AS)-0.6/1KV-4G300 4×300.0 61/2.52 2.9 68.0 16100

    *Circular conductors
    U is changed to K if the stranding class is changed from class 2 to class 5



    Cables with fire barrier tape

    Cable Code No. of cores& Nominal
    Conductor Cross
    Sectional Area
    No.×mm^2    		 No. & Nominal
    Diameter of
    Strands
    No/mm    		 Nominal
    Sheath
    Thickness
    mm    		 Nominal
    Overall
    Diameter
    mm    		 Nominal
    Weight
    kg/km
    RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-2G2.5 2×2.5 7/0.67 1.4 13.1 352
    RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-2G4 2×4.0 7/0.85 1.4 14.1 424
    RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-2G6 2×6.0 7/1.04 1.4 15.2 504
    RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-2G10 2×10.0 7/1.35 1.5 16.9 620
    RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-2G16 2×16.0 7/1.70 1.5 19.5 954
    RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-2G25 2×25.0 7/2.14 1.6 25.5 1330
    RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-2G35 2×35.0 19/1.53 1.7 29.1 1785
    RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-2G50 2×50.0 19/1.78 1.8 32.2 2165
    RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-2G70 2×70.0 19/2.14 1.9 28.8 2445
    RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-2G95 2×95.0 37/1.78 2.0 33.9 3385
    RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-2G120 2×120.0 37/2.03 2.1 37.2 4065
    RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-2G150 2×150.0 37/2.25 2.2 39.9 4745
    RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-2G185 2×185.0 37/2.52 2.4 45.0 6095
    RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-2G240 2×240.0 61/2.25 2.5 50.0 7575
    RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-2G300 2×300.0 61/2.52 2.6 55.0 9165
    RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-3G2.5 3×2.5 7/0.67 1.4 13.7 392
    RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-3G4 3×4.0 7/0.85 1.4 14.8 478
    RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-3G6 3×6.0 7/1.04 1.4 16.0 573
    RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-3G10 3×10.0 7/1.35 1.5 18.5 868
    RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-3G16 3×16.0 7/1.70 1.6 20.8 1136
    RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-3G25 3×25.0 7/2.14 1.7 27.6 1865
    RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-3G35 3×35.0 19/1.53 1.8 30.9 2235
    RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-3G50 3×50.0 19/1.78 1.8 33.9 2735
    RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-3G70 3×70.0 19/2.14 1.9 35.7 3355
    RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-3G95 3×95.0 37/1.78 2.1 38.2 4580
    RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-3G120 3×120.0 37/2.03 2.2 41.6 5505
    RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-3G150 3×150.0 37/2.25 2.3 47.0 6950
    RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-3G185 3×185.0 37/2.52 2.4 50.5 8295
    RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-3G240 3×240.0 61/2.25 2.6 57.2 10455
    RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-3G300 3×300.0 61/2.52 2.7 63.2 12660
    RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-4G2.5 4×2.5 7/0.67 1.4 14.7 454
    RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-4G4 4×4.0 7/0.85 1.4 16.0 556
    RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-4G6 4×6.0 7/1.04 1.5 18.2 783
    RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-4G10 4×10.0 7/1.35 1.5 20.0 1029
    RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-4G16 4×16.0 7/1.70 1.6 22.5 1367
    RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-4G25 4×25.0 7/2.14 1.7 29.9 2240
    RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-4G35 4×35.0 19/1.53 1.8 33.5 2705
    RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-4G50 4×50.0 19/1.78 1.9 37.1 3375
    RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-4G70 4×70.0 19/2.14 2.1 39.1 4560
    RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-4G95 4×95.0 37/1.78 2.2 43.0 5805
    RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-4G120 4×120.0 37/2.03 2.3 48.3 7430
    RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-4G150 4×150.0 37/2.25 2.4 52.4 8820
    RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-4G185 4×185.0 37/2.52 2.6 56.6 10600
    RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-4G240 4×240.0 61/2.25 2.7 64.3 13380
    RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-4G300 4×300.0 61/2.52 2.9 70.7 16255

    U is changed to K if the stranding class is changed from class 2 to class 5
