    K23 LSZH Subway Signalling Cables for Metro/Local Trains/Tramlines

    • K23 LSZH Subway Signalling Cables for Metro/Local Trains/Tramlines
    • K23 LSZH Subway Signalling Cables for Metro/Local Trains/Tramlines

    Application

    The cables are designed for remote control and teletransmission in underground railway networks. The cables can be laid in channel, cable tray, or on hook supports, along suburban railway lines electrifi ed at maximum 1500V DC.

    Standard

    • NF F 55-623

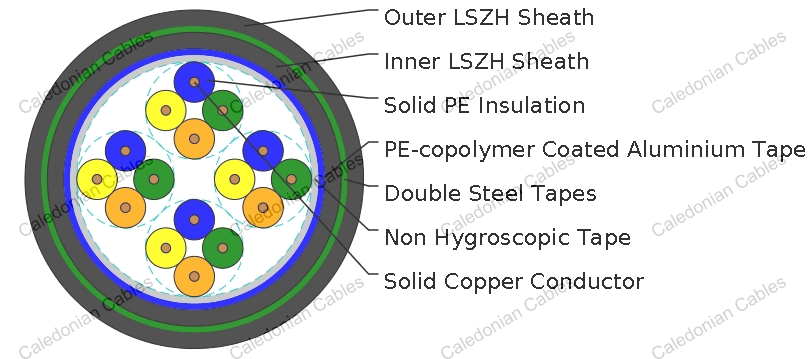

    Cable Construction

    • Electrical Characteristics at 20℃Conductors: Copper wire, 0.6, 0.8, 1.0 or 1.2 mm nominal diameter.
    • Insulation: Solid polyethylene.
    • Cabling Element: Four conductors are twisted to form a star quad. For 1 & 4 pair cables, conductors shall be twisted in pairs.
    • Stranding: Quads are stranded in helically laid concentric layers or units to form the cable core.
    • Core Wrapping: Plastic tape(s) with overlapping.
    • Moisture Barrier: One laminated sheath made of aluminium tape coated with PE-Copolymer on at least one side is applied with longitudinally overlap.
    • Inner Sheath: LSZH fi re retardant compound.
    • Armour: Two helically applied steel tapes.
    • Outer Sheath: LSZH fire retardant compound.
    Nominal Conductor Diameter mm 0.6 0.8 1.0 1.2
    Maximum Average DC Conductor Resistance Ω/km 64.0 36.0 23.0 16.0
    Minimum Insulation Resistance @500 V DC (3min) MΩ.km 5000 5000 5000 5000
    Maximum Mutual Capacitance @1000Hz (AC) nF/km 57.5 57.5 57.5 57.5
    Maximum Capacitance Unbalance @800Hz
    K1 (side to side) pF/500m 435 435 435 435
    K9-12 (quad to quad) pF/500m 220 220 220 220
    Operating Voltages V 200 400 500 750
    Maximum Permissible Current A 0.35 0.63 1.0 1.4
    Dielectric Strength (DC voltage 1min)
    Conductor to Conductor V 1500 2000 3000 3000
    Conductor to Screen V 1500 1500 1500 1500

    Mechanical and Thermal Properties

    • Minimum Bending Radius: 8×OD (static); 16×OD (dynamic)
    • Temperature Range: -40℃ to +60℃ (during operation); -20℃ to +50℃ (during installation)

    Dimensions and Weight

    Cable Code Number
    of Pairs    		 Spare
    pairs    		 Minimum Sheath Thickness
    mm    		 Maximum Overall
    Diameter
    mm    		 Nominal
    Weight
    kg/km
    Inner Outer
    0.6mm Conductor, 0.96mm Insulated Wire (6/10)
    RS/K23-2Y(L)HBH-2P0.6 2 - 1.0 1.0 10.5 130
    RS/K23-2Y(L)HBH-4P0.6 4 - 1.0 1.0 14.0 171
    RS/K23-2Y(L)HBH-8P0.6 8 - 1.0 1.0 16.5 215
    RS/K23-2Y(L)HBH-14P0.6 14 - 1.0 1.2 17.5 290
    RS/K23-2Y(L)HBH-20P0.6 20 - 1.0 1.2 18.5 350
    RS/K23-2Y(L)HBH-28P0.6 28 - 1.0 1.4 21.0 441
    RS/K23-2Y(L)HBH-38P0.6 38 - 1.0 1.4 21.5 533
    RS/K23-2Y(L)HBH-56P0.6 56 - 1.0 1.4 23.0 700
    RS/K23-2Y(L)HBH-84P0.6 84 - 1.0 1.6 28.0 970
    RS/K23-2Y(L)HBH-112P0.6 112 - 1.0 1.6 30.5 1190
    RS/K23-2Y(L)HBH-168P0.6 168 2 1.0 1.8 38.0 1847
    RS/K23-2Y(L)HBH-224P0.6 224 2 1.0 2.0 44.0 2675
    RS/K23-2Y(L)HBH-280P0.6 280 2 1.0 2.0 51.0 3185
    RS/K23-2Y(L)HBH-336P0.6 336 4 1.0 2.0 57.0 3680
    RS/K23-2Y(L)HBH-392P0.6 392 4 1.0 2.0 58.5 4168
    RS/K23-2Y(L)HBH-448P0.6 448 4 1.0 2.2 67.0 4647
    RS/K23-2Y(L)HBH-784P0.6 784 4 1.0 2.2 90.5 7406
    RS/K23-2Y(L)HBH-896P0.6 896 6 1.0 2.2 102.5 8315
    0.8mm Conductor, 1.27 mm Insulated Wire (8/10)
    RS/K23-2Y(L)HBH-2P0.8 2 - 1.0 1.0 11.5 155
    RS/K23-2Y(L)HBH-4P0.8 4 - 1.0 1.0 15.5 216
    RS/K23-2Y(L)HBH-8P0.8 8 - 1.0 1.2 17.5 298
    RS/K23-2Y(L)HBH-14P0.8 14 - 1.0 1.4 20.5 412
    RS/K23-2Y(L)HBH-20P0.8 20 - 1.0 1.4 23.0 512
    RS/K23-2Y(L)HBH-28P0.8 28 - 1.0 1.4 24.5 637
    RS/K23-2Y(L)HBH-38P0.8 38 - 1.0 1.6 26.5 805
    RS/K23-2Y(L)HBH-56P0.8 56 - 1.0 1.6 32.0 1096
    RS/K23-2Y(L)HBH-84P0.8 84 - 1.0 1.8 39.0 1504
    RS/K23-2Y(L)HBH-112P0.8 112 - 1.0 1.8 40.5 1880
    1.0mm Conductor, 1.8mm Insulated Wire (10/10)
    RS/K23-2Y(L)HBH-2P1 2 - 1.0 1.0 12.0 195
    RS/K23-2Y(L)HBH-4P1 4 - 1.0 1.2 17.5 298
    RS/K23-2Y(L)HBH-8P1 8 - 1.0 1.4 20.5 431
    RS/K23-2Y(L)HBH-14P1 14 - 1.0 1.4 23.5 587
    RS/K23-2Y(L)HBH-20P1 20 - 1.0 1.6 25.0 762
    RS/K23-2Y(L)HBH-28P1 28 - 1.0 1.6 29.0 981
    RS/K23-2Y(L)HBH-38P1 38 - 1.0 1.6 31.5 1243
    RS/K23-2Y(L)HBH-56P1 56 - 1.0 1.8 38.5 1683
    RS/K23-2Y(L)HBH-84P1 84 - 1.0 2.0 46.5 2340
    RS/K23-2Y(L)HBH-112P1 112 - 1.0 2.0 51.5 2944
    1.2mm Conductor, 2.0mm Insulated Wire (12/10)
    RS/K23-2Y(L)HBH-1P1.2 1 - 1.0 1.2 14.0 188
    RS/K23-2Y(L)HBH-2P1.2 2 - 1.0 1.2 14.5 230
    RS/K23-2Y(L)HBH-4P1.2 4 - 1.0 1.4 20.0 357
    RS/K23-2Y(L)HBH-8P1.2 8 - 1.0 1.4 24.0 509
    RS/K23-2Y(L)HBH-14P1.2 14 - 1.0 1.4 25.0 710
    RS/K23-2Y(L)HBH-20P1.2 20 - 1.0 1.6 29.0 950
    RS/K23-2Y(L)HBH-28P1.2 28 - 1.0 1.6 31.5 1213
