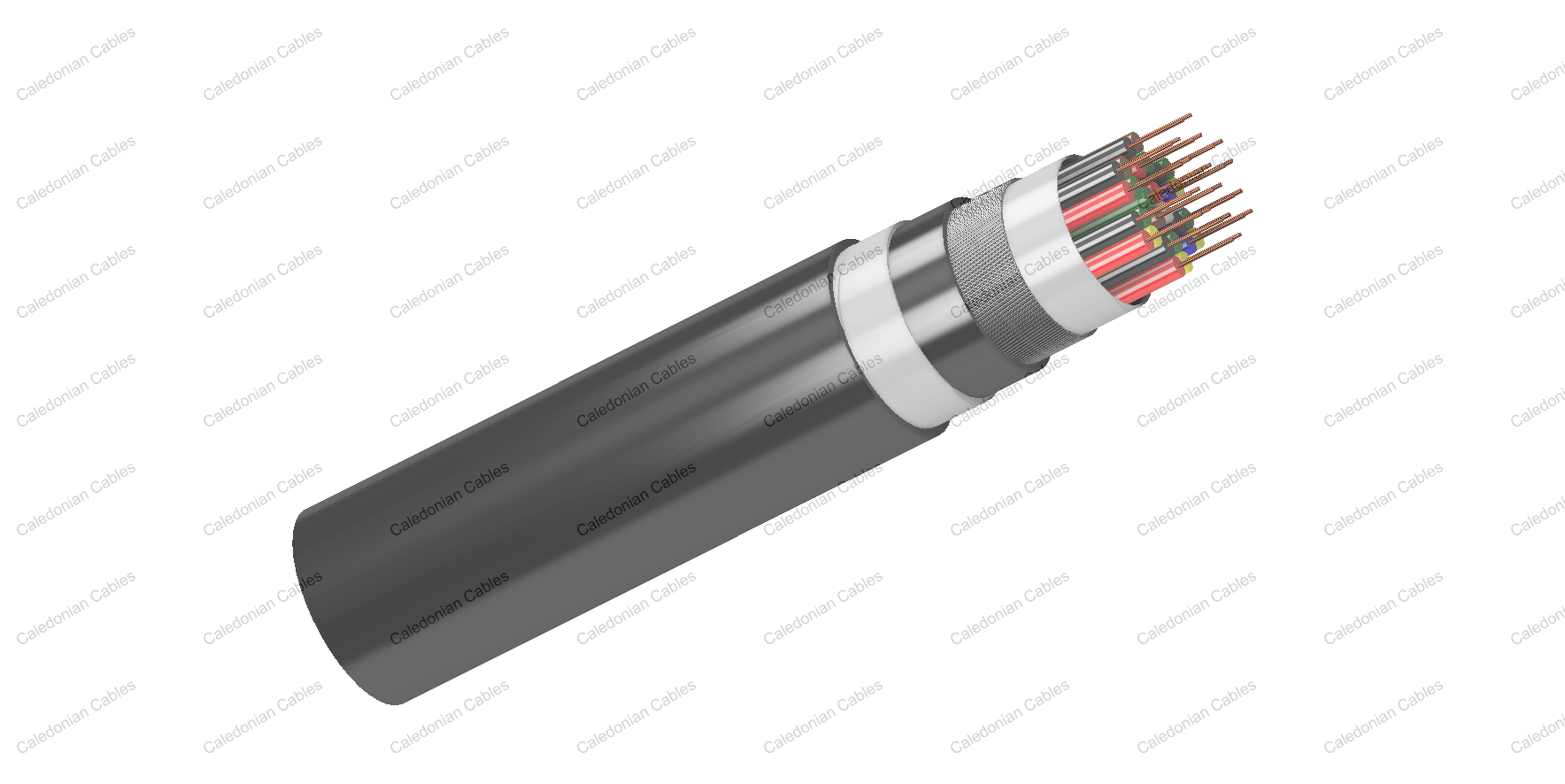

    CCPSSP-FR0.1 n×4×0.9/1.4

    • CCPSSP-FR0.1 n×4×0.9/1.4
    • CCPSSP-FR0.1 n×4×0.9/1.4

    Application

    The cables are used as railway cables and can be installed directly into the ground or in ducts.

    Standard

    • RENFE E.T. 03.365.051.6

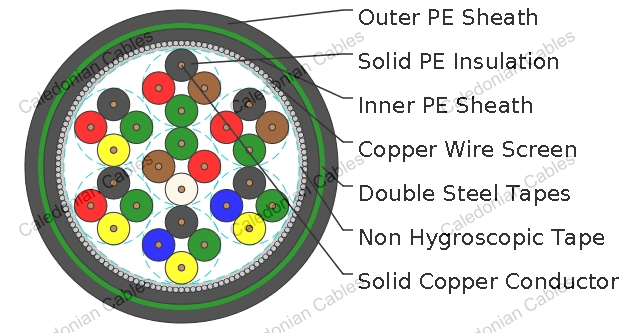

    Cable Construction

    • Electrical Characteristics at 20℃Conductors: Soft annealed solid copper, 0.9/1.4 mm nominal diameter.
    • Insulation: PE.
    • Cabling Element: Four insulated conductors are twisted together to form a quad.
    • Stranding: Quads are helically stranded in concentric layers.
    • Core Wrapping: Two or more layers of plastic tape(s) with overlapping.
    • Screen: 0.9/1.2/1.4/1.8mm copper wires wrapping with one plastic tape (protection against interference).
    • Inner Sheath: PE sheath.
    • Armour: Two layers steel tape (0.8mm thick).
    • Outer Sheath: PE sheath.
    Nominal Conductor Diameter mm 0.9 1.4
    Maximum Conductor Resistance Ω/km 28.5 11.7
    Minimum Insulation Resistance @500 V DC MΩ.km 35000 35000
    Mutual Capacitance @800Hz nF/km 41 45
    Capacitance Unbalance @800Hz
    K1 maximum individual value pF/460m 250 250
    K9-12 maximum individual value pF/460m 250 250
    ea1/2 maximum individual value pF/460m 1200 1200
    Attenuation
    @1KHz dB/km 0.7 0.46
    @10KHz dB/km 1.6 0.85
    @30KHz dB/km 2.1 1.3
    Test Voltage @50Hz 1min
    Core to Core Veff 2100 2100
    Core to Screen Veff 2500 2500
    Core to Armouring Veff 2000 2000
    Reduction Factor @100V/km 50Hz   0.3 0.3

    Mechanical and Thermal Properties

    • Minimum Bending Radius: 10×OD
    • Temperature Range: -40℃ to +60℃ (during operation); -10℃ to +60℃ (during installation)

    Dimensions and Weight

    Cable Code Number of
    Quads
    Nominal Sheath Thickness
    mm
    Maximum Overall
    Diameter
    mm
    Nominal Weight
    kg/km
    Inner Outer
    0.9mm Conductor, 1.8mm Insulated Wire
    RS/CCPSSP-FR0.1-2YD2YB2Y-1Q0.9 1 1.5 1.6 21.2 1140
    RS/CCPSSP-FR0.1-2YD2YB2Y-3Q0.9 3 1.5 1.6 24.5 1370
    RS/CCPSSP-FR0.1-2YD2YB2Y-5Q0.9 5 1.5 1.6 27.0 1610
    RS/CCPSSP-FR0.1-2YD2YB2Y-7Q0.9 7 1.5 1.6 28.4 1750
    RS/CCPSSP-FR0.1-2YD2YB2Y-10Q0.9 10 1.5 1.6 32.1 2060
    RS/CCPSSP-FR0.1-2YD2YB2Y-12Q0.9 12 1.5 1.6 32.1 2130
    RS/CCPSSP-FR0.1-2YD2YB2Y-14Q0.9 14 1.6 1.8 35.3 2380
    RS/CCPSSP-FR0.1-2YD2YB2Y-19Q0.9 19 1.7 1.8 38.6 2760
    RS/CCPSSP-FR0.1-2YD2YB2Y-25Q0.9 25 1.7 1.8 42.0 3150
    1.4mm Conductor, 2.7mm Insulated Wire
    RS/CCPSSP-FR0.1-2YD2YB2Y-1Q1.4 1 1.5 1.6 22.7 1280
    RS/CCPSSP-FR0.1-2YD2YB2Y-3Q1.4 3 1.5 1.6 28.0 1690
    RS/CCPSSP-FR0.1-2YD2YB2Y-5Q1.4 5 1.6 1.8 32.0 2070
    RS/CCPSSP-FR0.1-2YD2YB2Y-7Q1.4 7 1.6 1.8 33.9 2320
    RS/CCPSSP-FR0.1-2YD2YB2Y-10Q1.4 10 1.6 1.8 39.2 2860
    RS/CCPSSP-FR0.1-2YD2YB2Y-12Q1.4 12 1.7 1.8 39.2 2980
    RS/CCPSSP-FR0.1-2YD2YB2Y-14Q1.4 14 1.7 1.8 42.6 3340
    RS/CCPSSP-FR0.1-2YD2YB2Y-19Q1.4 19 1.8 2.0 48.5 4160
