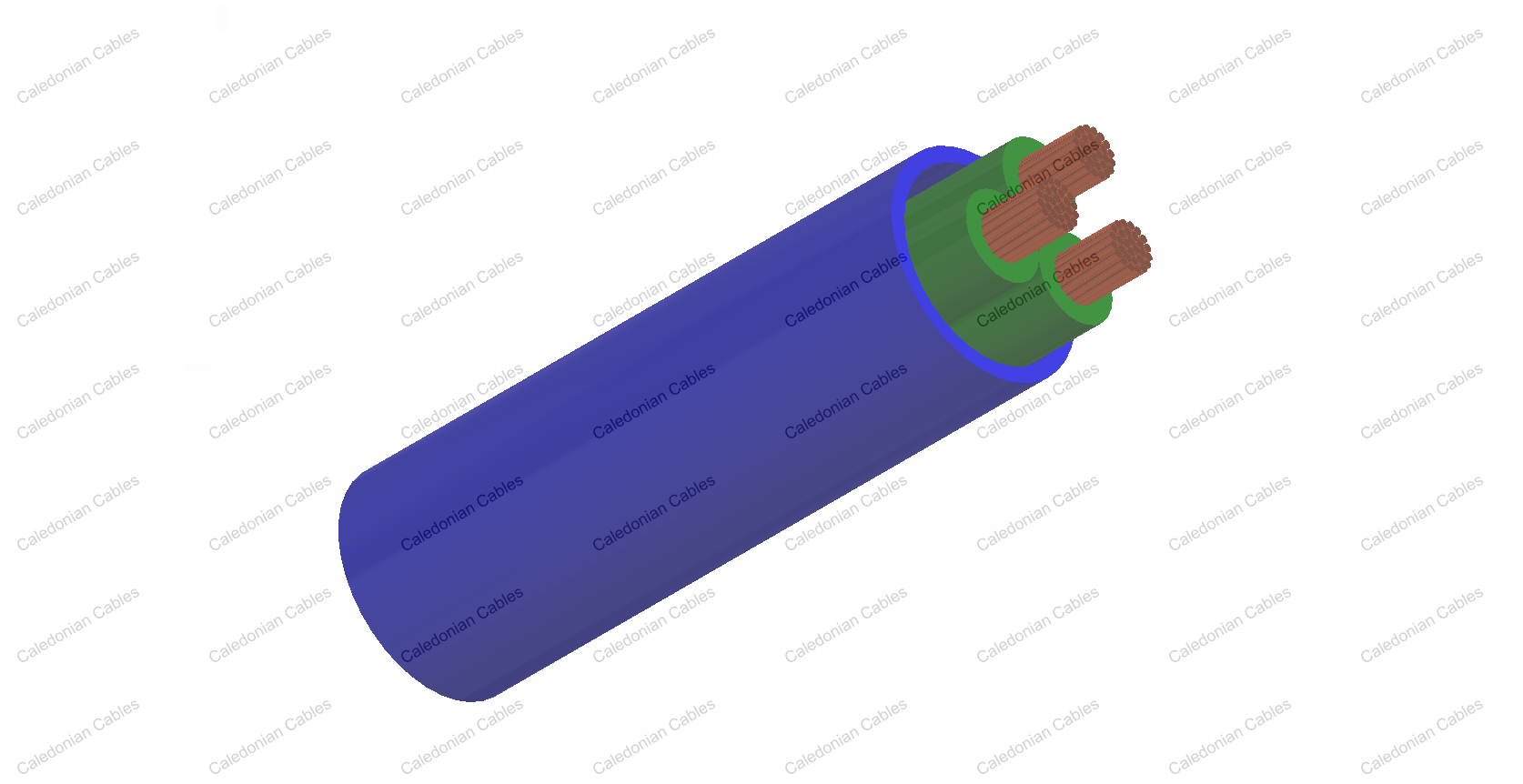

    Submersible Cable For Drinking Water (Round)

    Applications

    These cables are designed for making connections to submersible pumps in drinking water. It can also be used in industrial water.

    Standards

    DIN VDE 0282, part 16

    DIN VDE 0295

    IEC 60228

    DIN VDE 0298

    DIN VDE 0472

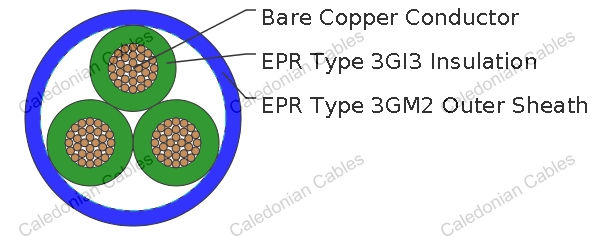

    Construction

    Conductor : Bare copper stranded class 5 to VDE0295, IEC 60228

    Insulation : EPR type 3GI3

    Outer Sheath : EPR type 3GM2, coloured blue.

    Technical data

    Test Voltage 50Hz, 5 min : 2500V

    Rated Voltage : 450/750V

    Maximum admissible conductor Temperature in Operation : 90°C

    Short Circuit Temperature : 250°C

    Temperature Range :-40°C~+60°C

    Dimensions

    No. of cores x cross Outer Diameter Net weight
    Min. value Max. value
      mm mm kg/km
    1 x 1.5 5.8 7.2 54
    1 x 2.5 6.4 8.0 76
    1 x 4 7.4 9.0 105
    1 x 6 8.0 11.0 135
    1 x 10 9.8 12.5 200
    1 x 16 11.0 14.5 290
    1 x 25 12.5 16.5 410
    1 x 35 14.0 18.5 560
    1 x 50 16.5 21.0 740
    1 x 70 18.5 23.5 1000
    1 x 95 21.0 26.0 1300
    1 x 120 23.5 28.5 1650
    1 x 150 26.0 31.5 2000
    1 x 185 27.5 34.5 2500
    1 x 240 30.5 38.0 3100
    1 x 300 33.5 41.5 3700
    2 x 1.5 9.0 11.5 130
    2 x 2.5 10.5 13.5 190
    2 x 4 12.0 15.0 260
    2 x 6 13.5 18.5 350
    2 x 10 18.5 24.0 550
    2 x 16 21.0 27.5 900
    2 x 25 25.0 31.5 1300
    3 x 1.5 9.6 12.5 150
    3 x 2.5 11.5 14.5 220
    3 x 4 13.0 16.0 340
    3 x 6 14.5 20.0 480
    3 x 10 20.0 25.5 750
    3 x 16 22.5 29.5 1100
    3 x 25 26.5 34.0 1450
    3 x 35 29.5 38.0 2100
    3 x 50 34.5 44.0 2800
    3 x 70 39.0 49.5 3800
    3 x 95 44.0 54.6 4600
    3 x 120 47.5 59.0 5400
    4G1.5 10.5 13.5 190
    4G2.5 12.5 15.5 280
    4G4 14.5 18.0 390
    4G6 16.5 22.0 520
    4G10 22.5 24.5 950
    4G16 26.5 28.5 1400
    4G25 32.0 34.0 1950
    4G35 33.0 42.5 2700
    4G50 38.0 48.5 3600
    4G70 43.0 54.5 4900
    4G95 50.0 60.5 6200
    4G120 53.0 65.5 7200
    5G1.5 11.5 15.0 230
    5G2.5 13.5 17.0 340
    5G4 16.0 19.5 470
    5G6 18.0 24.5 640
    5G10 24.0 30.5 1150
    5G16 27.0 35.5 1700
    7G1.5 16.5 17.5 370
    10G1.5 18.6 19.6 460
    7G2.5 18.9 19.4 510
    10G2.5 21.4 21.9 650
