    Submersible Cable For Drinking Water (Flat)

    Applications

    These cables are designed for making connections to submersible pumps in drinking water. It can also be used in industrial water.

    Standards

    DIN VDE 0282, part 16

    DIN VDE 0295

    IEC 60228

    DIN VDE 0298

    DIN VDE 0472

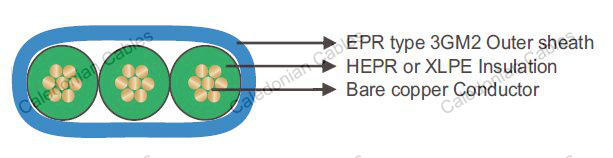

    Construction

    Conductor : Bare copper stranded class 5 to VDE0295, IEC 60228

    Insulation : HEPR or XLPE

    Outer Sheath : EPR type 3GM2, coloured blue.

    Technical data

    Test Voltage 50Hz, 5 min : 2500V

    Rated Voltage : 450/750V

    Maximum admissible conductor Temperature in Operation : 90°C

    Short Circuit Temperature : 250°C

    Temperature Range : -40°C~+60°C

    Dimensions

    No. of cores x cross Outer Dimensions approx. Net weight approx.
      mm × mm kg/km
    3x1.5 12.4x5.7 100
    3x2.5 14.2x6.7 170
    3x4 16.6x7.9 240
    3x6 18.4x8.5 300
    3x10 21.4x9.5 450
    3x16 25.9x11.5 680
    3x25 30.7x13.1 950
    3x35 35.2x15.0 1300
    3x50 40.9x17.3 1800
    3x70 47.9x19.8 2450
    3x95 53.6x22.6 3150
    4G1.5 15.4x5.9 140
    4x2.5 17.6x6.7 200
    4G4 20.6x7.9 290
    4G6 23.3x8.5 380
    4G10 27.3x9.5 580
    4G16 32.7x11.5 880
    4G25 39.1x13.1 1260
    4G35 45.6x15.0 1700
    4G50 52.0x17.3 2360
    4G70 61.2x19.8 3250
    4G95 69.6x22.6 4150
