    Single Core Cables

    Application

    This product is used for an underground distribution cable for the lead-out parts of substations of general power distribution lines including high-capacity power distribution, cable tunnels, pipelines, directly embedded types, raising parts of telephone poles, etc.

    Standards

    JIS C 3606-2003 (6600V)

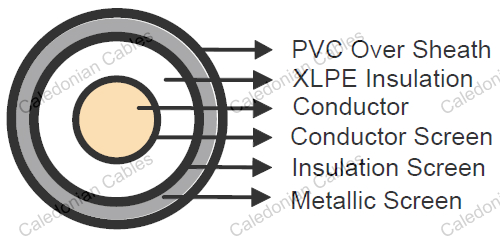

    Construction

    Conductor : Plain annealed copper with JCS C 3102.

    Conductor Screen : The conductor screen consists of an extruded layer of non metallic, semi-conducting compound firmly bonded to the insulation to exclude all air voids.

    Insulation: XLPE.

    Insulation Screen : The insulation screen consists of an extruded layer of non metallic, semiconducting compound extruded over the insulation. The extruded semi-conducting layer shall consist of bonded or cold strippable semi-conducting compound capable of removal for jointing or terminating. As an option, a semi-conducting tape may be applied over the extruded semi-conducting layer as a bedding for the metallic layer. The minimum thickness is 0.5 mm. The screen is tightly fitted to the insulation to exclude all air voids and can be easily hand stripped on site.

    Metallic Sreen : By sufficiently winding of a soft copper tape on an external semiconductive layer, each core shall be shielded,the tape is wound with overlapping about one-sixth of its width or the equivalent of that.

    Over Sheath : Black, PVC or PE.

    Physical Properties

    Operating Temperature : up to 120°C

    Cold Resistant : -15 ± 0.5 °C

    Single Core 6600V (Test Voltage=17KV)

    Dimensional Data

    Nom. Cross- Section Area Nom. Insulation Thickness Nom. Sheath Thickness Approx. Overall Diameter Approx. Weight
    CV CE CE/F
    mm² mm mm mm kg/km
    8 4.0 1.8 16.5 365 325 355
    14 4.0 1.8 17.5 460 425 450
    22 4.0 1.9 18.5 525 475 510
    38 4.0 2.0 21 730 685 715
    60 4.0 2.0 23 1070 1010 1050
    100 4.0 2.1 26 1470 1390 1450
    150 4.0 2.3 29 1980 1890 1950
    200 4.5 2.4 32 2550 2450 2520
    250 4.5 2.5 35 3070 2950 3030
    325 4.5 2.6 38 3750 3630 3710
    400 4.5 2.7 40 4640 4410 4570
    500 4.5 2.8 43 5550 5370 5490
    600 5.0 2.9 47 6870 6710 6820
    800 5.0 3.1 52 9000 8800 8940
    1000 5.0 3.3 56 11000 10760 10930

    Electrical Data

    Nom.Cross- Section Area Max. Conductor Resistance (20 °C) Min. Insulation Resistance Electrostatic Capacitance
    mm² Ω/km MΩ-km µF/km
    8 2.29 2500 0.21
    14 1.31 2500 0.24
    22 0.832 2500 0.27
    38 0.481 2500 0.32
    60 0.305 2500 0.37
    100 0.183 1500 0.45
    150 0.122 1500 0.52
    200 0.0915 1500 0.51
    250 0.0739 1500 0.55
    325 0.0568 1500 0.61
    400 0.0462 1000 0.68
    500 0.0369 900 0.74
    600 0.0308 900 0.71
    800 0.0231 800 0.81
    1000 0.0185 800 0.85

    Note : C : XLPE V : Vinyl E : PE F : Flame retardant
