    CVV-I/C SB

    • CVV-I/C SB - JIS Standard Cable

    Application and Description

    CVV-I/C SB cables are used for electric signal transmission of control or monitoring circuits for 0.6/1kV

    Reference Standard

    IEC 60502-1

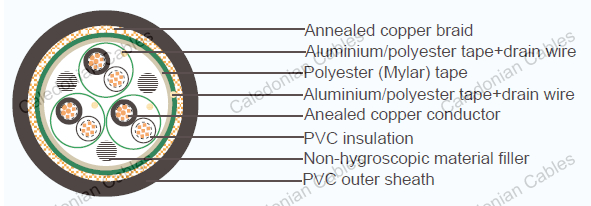

    Cable Construction

    Conductor Stranded annealed copper wires, Sizes : 1.0 mm² up to 2.5 mm²
    Insulation Polyvinyl chloride (PVC)
    Color Black and white with marking numbers
    Pairing Two insulated conductors uniformly twisted together
    Individual Screen Aluminium/polyester tape is applied over each pair metallic side down in contact with tinned copper drain wire
    Filler Non-hygroscopic material(optional)
    Binding tape Polyester (Mylar) tape (optional)
    Overall Screen 1 Aluminium/polyester tape is applied over each pair metallic side down in contact with tinned copper drain wire
    Overall Screen 2 Annealed copper braid
    Sheath Polyvinyl chloride (PVC), Black color (other colors can be provided upn request)

    Technical Characteristics

    Maximum conductor temperature 70°C

    Circuit voltage not exceeding 600 volts

    Test voltage : 3500 volts

    Cable Parameter

    NO. OF PAIRS CONDUCTOR THICKNESS OF INSULATION THICKNESS OF SHEATH OVERALL DIAMETER MAXIMUM CONDUCTOR RESISTANCE (AT 20°C) CABLE WEIGHT
    NOMINAL CROSS- SECTIONAL AREA NO.& DIA. OF WIRES DIAMETER
    MM² MM MM MM MM MM OHM/KM KG/KM
    1 1 7/0.44 1.32 0.8 1.8 9.5 18.1 110
    1.5 7/0.53 1.59 0.8 1.8 10.5 12.1 130
    2.5 7/0.67 2.01 0.8 1.8 11.5 7.41 160
    2 1 7/0.44 1.32 0.8 1.8 16.5 18.1 230
    1.5 7/0.53 1.59 0.8 1.8 18.0 12.3 290
    2.5 7/0.67 2.01 0.8 1.8 20.0 7.56 360
    3 1 7/0.44 1.32 0.8 1.8 17.0 18.1 270
    1.5 7/0.53 1.59 0.8 1.8 19.5 12.3 350
    2.5 7/0.67 2.01 0.8 1.8 21.0 7.56 440
    4 1 7/0.44 1.32 0.8 1.8 18.5 18.1 320
    1.5 7/0.53 1.59 0.8 1.8 21.0 12.3 420
    2.5 7/0.67 2.01 0.8 1.8 23.0 7.56 530
    5 1 7/0.44 1.32 0.8 1.8 21.0 18.1 370
    1.5 7/0.53 1.59 0.8 1.8 23.0 12.3 500
    2.5 7/0.67 2.01 0.8 1.8 25.0 7.56 640
    6 1 7/0.44 1.32 0.8 1.8 22.0 18.1 430
    1.5 7/0.53 1.59 0.8 1.8 25.0 12.3 590
    2.5 7/0.67 2.01 0.8 1.8 27.5 7.56 750
    7 1 7/0.44 1.32 0.8 1.8 22.0 18.1 460
    1.5 7/0.53 1.59 0.8 1.8 25.0 12.3 620
    2.5 7/0.67 2.01 0.8 1.8 27.5 7.56 800
    8 1 7/0.44 1.32 0.8 1.8 24.0 18.1 520
    1.5 7/0.53 1.59 0.8 1.8 27.0 12.3 710
    2.5 7/0.67 2.01 0.8 1.9 30.0 7.56 930
    9 1 7/0.44 1.32 0.8 1.8 25.5 18.1 590
    1.5 7/0.53 1.59 0.8 1.9 29.0 12.3 820
    2.5 7/0.67 2.01 0.8 2.0 32.5 7.56 1070
    10 1 7/0.44 1.32 0.8 1.8 27.5 18.1 670
    1.5 7/0.53 1.59 0.8 2.0 32.0 12.3 950
    2.5 7/0.67 2.01 0.8 2.1 35.5 7.56 1240
    11 1 7/0.44 1.32 0.8 1.8 17.5 18.1 690
    1.5 7/0.53 1.59 0.8 2.0 32.0 12.3 990
    2.5 7/0.67 2.01 0.8 2.1 35.5 7.56 1300
    12 1 7/0.44 1.32 0.8 1.8 29.0 18.1 750
    1.5 7/0.53 1.59 0.8 2.0 33.0 12.3 1,060
    2.5 7/0.67 2.01 0.8 2.1 36.5 7.56 1,390
    13 1 7/0.44 1.32 0.8 1.8 29.5 18.1 790
    1.5 7/0.53 1.59 0.8 2.0 33.5 12.3 1,110
    2.5 7/0.67 2.01 0.8 2.2 37.5 7.56 1,480
    14 1 7/0.44 1.32 0.8 1.8 30.5 18.1 840
    1.5 7/0.53 1.59 0.8 2.1 35.0 12.3 1,200
    2.5 7/0.67 2.01 0.8 2.2 39.0 7.56 1,580
    15 1 7/0.44 1.32 0.8 1.8 31.0 18.1 880
    1.5 7/0.53 1.59 0.8 2.1 36.0 12.3 1,270
    2.5 7/0.67 2.01 0.8 2.2 40.0 7.56 1,680
    16 1 7/0.44 1.32 0.8 1.8 32.0 18.1 950
    1.5 7/0.53 1.59 0.8 2.1 37.0 12.3 1,340
    2.5 7/0.67 2.01 0.8 2.3 41.0 7.56 1,790
    17 1 7/0.44 1.32 0.8 1.8 33.0 18.1 1,000
    1.5 7/0.53 1.59 0.8 2.2 38.0 12.3 1,440
    2.5 7/0.67 2.01 0.8 2.3 42.5 7.56 1,890
    18 1 7/0.44 1.32 0.8 1.8 34.0 18.1 1,090
    1.5 7/0.53 1.59 0.8 2.2 39.0 12.3 1,510
    2.5 7/0.67 2.01 0.8 2.4 43.5 7.56 2,010
    19 1 7/0.44 1.32 0.8 1.8 9.5 18.1 1,070
    1.5 7/0.53 1.59 0.8 2.2 34.0 12.3 1,550
    2.5 7/0.67 2.01 0.8 2.4 43.5 7.56 2,060
    20 1 7/0.44 1.32 0.8 1.8 35.0 18.1 1,140
    1.5 7/0.53 1.59 0.8 2.2 40.5 12.3 1,630
    2.5 7/0.67 2.01 0.8 2.4 45.0 7.56 2,170
    21 1 7/0.44 1.32 0.8 1.8 36.0 18.1 1,190
    1.5 7/0.53 1.59 0.8 2.3 41.5 12.3 1,720
    2.5 7/0.67 2.01 0.8 2.4 46.0 7.56 2,270
    22 1 7/0.44 1.32 0.8 1.8 37.0 18.1 1,250
    1.5 7/0.53 1.59 0.8 2.3 42.5 12.3 1,810
    2.5 7/0.67 2.01 0.8 2.5 47.5 7.56 2,410
    23 1 7/0.44 1.32 0.8 1.8 38.5 18.1 1,400
    1.5 7/0.53 1.59 0.8 2.4 46.0 12.3 2,010
    2.5 7/0.67 2.01 0.8 2.6 51.5 7.56 2,670
    24 1 7/0.44 1.32 0.8 1.8 39.5 18.1 1,430
    1.5 7/0.53 1.59 0.8 2.4 46.0 12.3 2,050
    2.5 7/0.67 2.01 0.8 2.6 51.5 7.56 2,720
    25 1 7/0.44 1.32 0.8 1.8 40.0 18.1 1,450
    1.5 7/0.53 1.59 0.8 2.4 46.0 12.3 2,080
    2.5 7/0.67 2.01 0.8 2.6 51.5 7.56 2,770
    26 1 7/0.44 1.32 0.8 1.8 41.0 18.1 1,520
    1.5 7/0.53 1.59 0.8 2.5 47.5 12.3 2,190
    2.5 7/0.67 2.01 0.8 2.7 53.0 7.56 2,910
    27 1 7/0.44 1.32 0.8 1.8 41.0 18.1 1,540
    1.5 7/0.53 1.59 0.8 2.5 47.5 12.3 2,220
    2.5 7/0.67 2.01 0.8 2.7 53.0 7.56 2,960
    28 1 7/0.44 1.32 0.8 1.8 41.5 18.1 1,570
    1.5 7/0.53 1.59 0.8 2.5 47.5 12.3 2,260
    2.5 7/0.67 2.01 0.8 2.7 53.0 7.56 3,010
    29 1 7/0.44 1.32 0.8 1.8 42.5 18.1 1,650
    1.5 7/0.53 1.59 0.8 2.5 49.0 12.3 2,380
    2.5 7/0.67 2.01 0.8 2.7 55.0 7.56 3,170
    30 1 7/0.44 1.32 0.8 1.8 42.5 18.1 1,670
    1.5 7/0.53 1.59 0.8 2.5 49.0 12.3 2,410
    2.5 7/0.67 2.01 0.8 2.7 55.0 7.56 3,220
