    Application and Description

    CCE cables are used for supervisory electrical equipment, station control circuits, outdoor, suitable installation in dry or wet cable trenches.

    Reference Standard

    IEC 60502-1

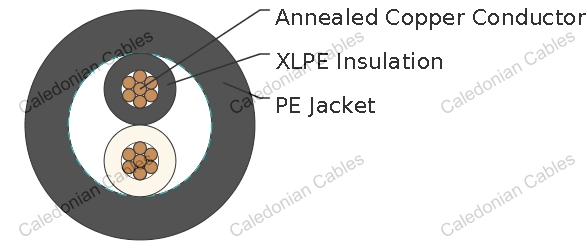

    Cable Construction

    Conductor Stranded annealed copper wires, Sizes: 1.5 mm² up to 10 mm²
    Insulation Cross-linked polyethylene(XLPE)
    Color 2-4 cores : Black, White, Red and Green
    More than 4 cores : Black core with marking numbers
    Filler Non-hygroscopic material(optional)
    Binding tape Polyester (Mylar) tape (optional)
    Sheath Polyethylene(PE), Black color (A special flame retardant sheath can be supplied)

    Technical Characteristics

    Maximum conductor temperature 90°C

    Circuit voltage not exceeding 600 volts

    Test voltage 3500 volts

    Cable Parameter

    NO. OF CORES CONDUCTOR THICKNESS OF INSULATION THICKNESS OF SHEATH OVERALL DIAMETER MAXIMUM CONDUCTOR RESISTANCE (AT 20°C) CABLE WEIGHT
    NOMINAL  CROSS- SECTIONAL AREA NO.& DIA. OF  WIRES DIAMETER
    MM2 MM MM MM MM MM OHM/KM KG/KM
    2 1.5 7/0.53 1.59 0.7 1.8 10.5 12.1 110
    2.5 7/0.67 2.01 0.7 1.8 11.5 7.41 130
    4 7/0.85 2.55 0.7 1.8 12.5 4.61 170
    6 7/1.04 3.12 0.7 1.8 13.5 3.08 230
    10 7/1.35 4.05 0.7 1.8 15.5 1.83 320
    3 1.5 7/0.53 1.59 0.7 1.8 11.0 12.1 130
    2.5 7/0.67 2.01 0.7 1.8 12.0 7.41 170
    4 7/0.85 2.55 0.7 1.8 13.0 4.61 230
    6 7/1.04 3.12 0.7 1.8 14.5 3.08 300
    10 7/1.35 4.05 0.7 1.8 16.5 1.83 440
    4 1.5 7/0.53 1.59 0.7 1.8 12.0 12.1 160
    2.5 7/0.67 2.01 0.7 1.8 13.0 7.41 220
    4 7/0.85 2.55 0.7 1.8 14.5 4.61 290
    6 7/1.04 3.12 0.7 1.8 15.5 3.08 390
    10 7/1.35 4.05 0.7 1.8 18.0 1.83 570
    5 1.5 7/0.53 1.59 0.7 1.8 13.0 12.1 200
    2.5 7/0.67 2.01 0.7 1.8 14.0 7.41 260
    4 7/0.85 2.55 0.7 1.8 15.5 4.61 350
    6 7/1.04 3.12 0.7 1.8 17.0 3.08 470
    10 7/1.35 4.05 0.7 1.8 19.5 1.83 700
    6 1.5 7/0.53 1.59 0.7 1.8 13.5 12.1 230
    2.5 7/0.67 2.01 0.7 1.8 15.0 7.41 310
    4 7/0.85 2.55 0.7 1.8 16.5 4.61 420
    6 7/1.04 3.12 0.7 1.8 18.5 3.08 560
    10 7/1.35 4.05 0.7 1.8 21.0 1.83 820
    7 1.5 7/0.53 1.59 0.7 1.8 13.5 12.1 240
    2.5 7/0.67 2.01 0.7 1.8 15.0 7.41 330
    4 7/0.85 2.55 0.7 1.8 16.5 4.61 450
    6 7/1.04 3.12 0.7 1.8 18.5 3.08 610
    10 7/1.35 4.05 0.7 1.8 21.0 1.83 910
    8 1.5 7/0.53 1.59 0.7 1.8 15.0 12.1 290
    2.5 7/0.67 2.01 0.7 1.8 16.5 7.41 380
    4 7/0.85 2.55 0.7 1.8 18.5 4.61 520
    6 7/1.04 3.12 0.7 1.8 20.5 3.08 710
    10 7/1.35 4.05 0.7 1.8 23.5 1.83 1060
    10 1.5 7/0.53 1.59 0.7 1.8 17.0 12.1 350
    2.5 7/0.67 2.01 0.7 1.8 18.5 7.41 470
    4 7/0.85 2.55 0.7 1.8 20.5 4.61 640
    6 7/1.04 3.12 0.7 1.8 23.0 3.08 870
    10 7/1.35 4.05 0.7 1.8 26.5 1.83 1300
    12 1.5 7/0.53 1.59 0.7 1.8 17.5 12.1 400
    2.5 7/0.67 2.01 0.7 1.8 19.0 7.41 540
    4 7/0.85 2.55 0.7 1.8 21.5 4.61 750
    6 7/1.04 3.12 0.7 1.8 23.5 3.08 1020
    10 7/1.35 4.05 0.7 1.8 27.5 1.83 1530
    15 1.5 7/0.53 1.59 0.7 1.8 19.0 12.1 480
    2.5 7/0.67 2.01 0.7 1.8 21.0 7.41 660
    4 7/0.85 2.55 0.7 1.8 23.5 4.61 920
    6 7/1.04 3.12 0.7 1.8 26.0 3.08 1250
    20 1.5 7/0.53 1.59 0.7 1.8 21.0 12.1 620
    2.5 7/0.67 2.01 0.7 1.8 23.0 7.41 850
    4 7/0.85 2.55 0.7 1.8 26.0 4.61 1190
    6 7/1.04 3.12 0.7 1.8 29.0 3.08 1630
    30 1.5 7/0.53 1.59 0.7 1.8 24.0 12.1 890
    2.5 7/0.67 2.01 0.7 1.8(1.9) 27.0 7.41 1220
    4 7/0.85 2.55 0.7 1.8(1.9) 30.5 4.61 1720
