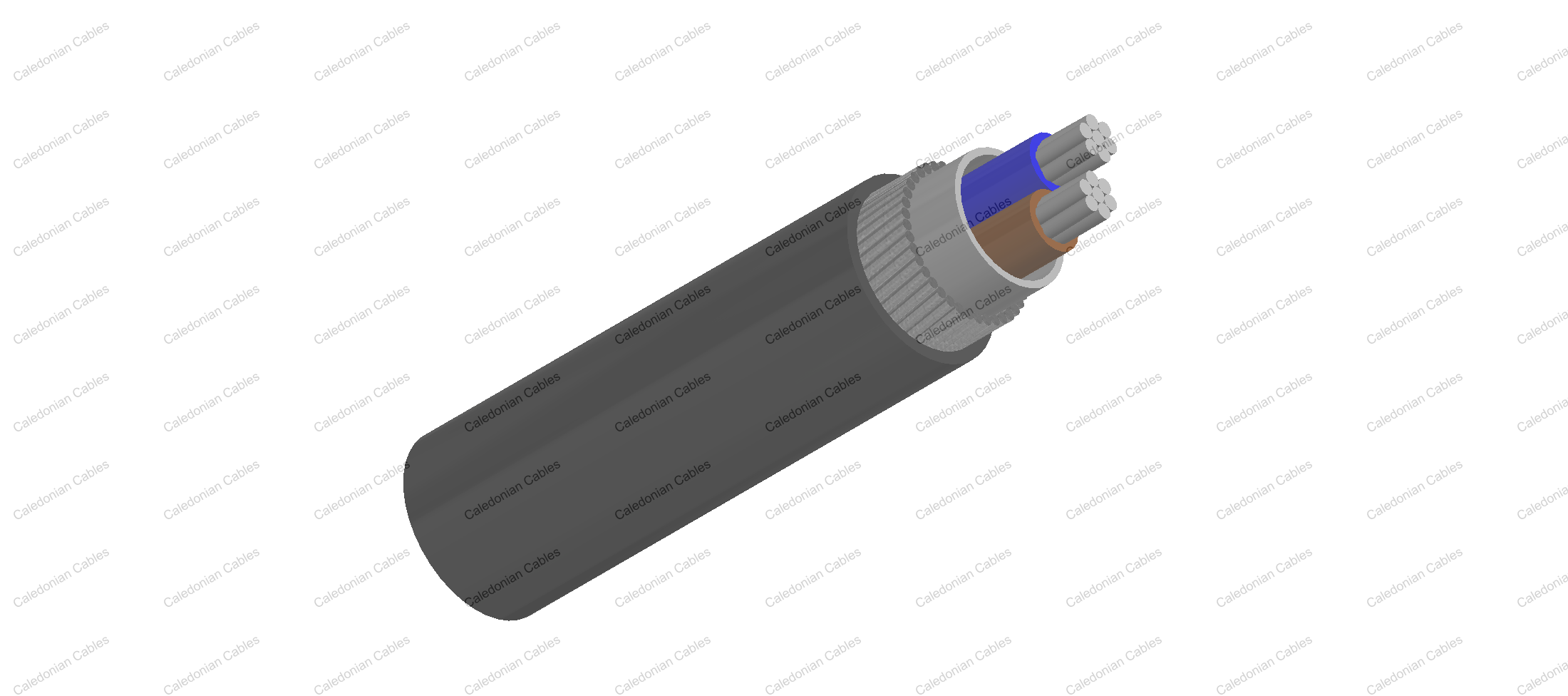

    Two-core 600/1000V cables with stranded copper conductors

    APPLICATION

    These power and control cables are used for electricity supply in low voltage installation system. They are well adapted to underground use in industrial applications where chemical and mechanical protections are needed (refinery areas, chemical plant...).

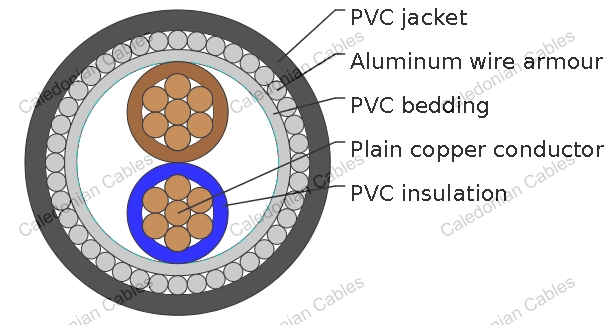

    CONSTRUCTION

    Conductor Solid Aluminum or Copper conductor, round stranded or shaped, Class 2 to BS 6460, IEC 60228.
    Insulation PVC(Polyvinyl Chloride) type TI1
    Colour Code 1 Core : Brown
    2 Cores : Brown or Blue
    3 Cores : Brown, Black, Grey
    4 Cores : Blue, Brown, Black, Grey
    5 Cores : Green-yellow, Blue, Brown, Black, Grey
    Above 5 Cores : White Cores with black numbers
    Filler(optional) PVC or Polypropylene yarn
    Binder Tape(optional) Polyester (Mylar) tape
    Inner Sheath/Bedding PVC (Polyvinyl Chloride)
    Armour Single Core : AWA (Aluminum Wire Armour)
    Multi Core : SWA (Steel Wire or Tape Armour)
    Outer Sheath PVC(Polyvinyl Chloride), type TM1

    TECHNICAL INFORMATION

    Voltage rating 600/1000V
    Temperature rating -20°C to +60°C
    Bending radius Single core : 10 x overall diameter
    Multicores : 8 x overall diameter
    Flame retardant IEC60332 part 1, BS4066 part 1

    CABLE PARAMETER

    Nominal cross-sectional area Number/wire Nominal insulation thickness Nominal bedding thickness Nominal wire armor dia. Nominal sheath thickness Approx. overall diameter Approx.cable weight
    extruded bedding taped bedding
    mm² No./mm mm mm mm mm mm mm kg/km
    2x1.5 7/0.53 0.6 0.8 0.9 1.4 12.3 - 270
    2x2.5 7/0.67 0.7 0.8 0.9 1.4 13.6 - 350
    2x4.0 7/0.85 0.8 0.8 0.9 1.4 15.1 - 470
    2x6.0 7/1.04 0.8 0.8 0.9 1.5 16.5 - 580
    2x10 7/1.35 1.0 0.8 1.25 1.6 20.1 - 840
    2x16 7/1.70 1.0 0.8 1.25 1.6 21.9 21.9 990
    2x25 7/2.14 1.2 1.0 1.6 1.7 26.7 26.3 1480
    2x25* 7/2.14 1.2 1.0 1.6 1.7 23.0 22.6 1480
    2x35a 19/1.53 1.2 1.0 1.6 1.8 29.2 28.8 1770
    2x35* 19/1.53 1.2 1.0 1.6 1.8 24.8 24.4 1770
    2x50* 19/1.78 1.4 1.0 1.6 1.9 27.8 27.4 1900
    2x70* 19/2.14 1.4 1.0 1.6 1.9 30.4 30.0 2430
    2x95* 19/2.52 1.6 1.2 2.0 2.1 35.5 34.7 2970
    2x120* 37/2.03 1.6 1.2 2.0 2.2 38.0 37.2 3970
    2x150* 37/2.25 1.8 1.2 2.0 2.3 41.3 40.5 4700
    2x185* 37/2.52 2.0 1.4 2.5 2.4 46.4 45.2 5990
    2x240* 61/2.25 2.2 1.4 2.5 2.5 51.2 50.0 7420
    2x300* 61/2.52 2.4 1.6 2.5 2.7 56.4 54.8 8950
    2x400* 61/2.85 2.6 1.6 2.5 2.9 61.9 60.3 11030

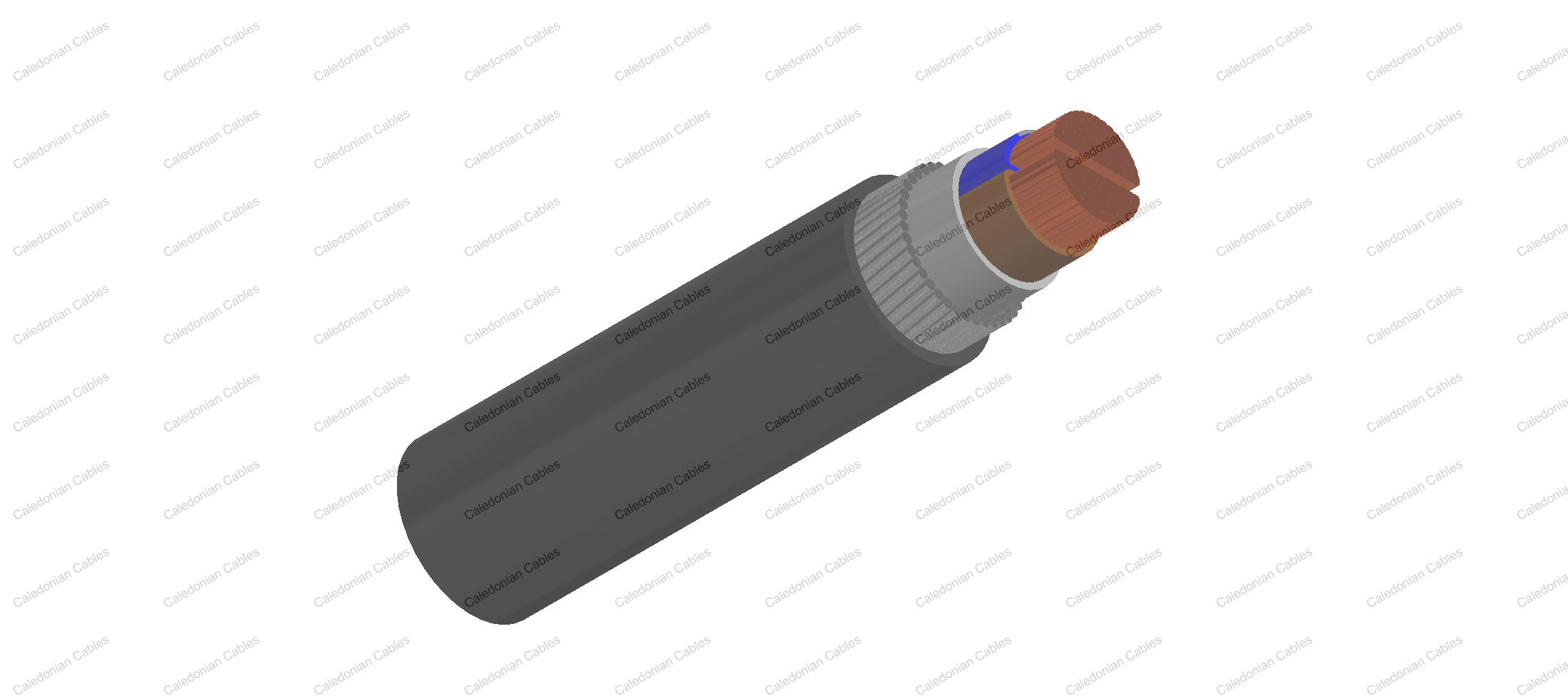

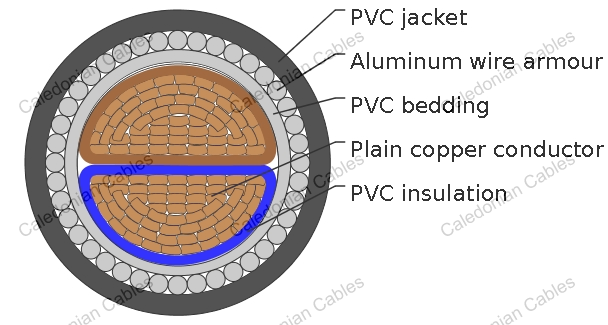

    *Shaped stranded conductor (class 2)
