    Three-core 600/1000V cables with solid aluminum conductors

    APPLICATION

    These power and control cables are used for electricity supply in low voltage installation system. They are well adapted to underground use in industrial applications where chemical and mechanical protections are needed (refinery areas, chemical plant...).

    CONSTRUCTION

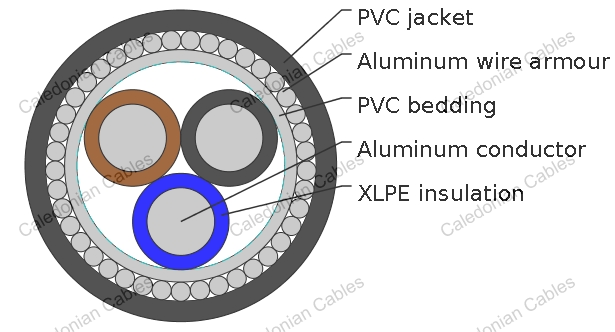

    Conductor Solid Aluminum or Copper conductor, round stranded or shaped, Class 2 to BS 6460, IEC 60228.
    Insulation PVC(Polyvinyl Chloride) type TI1
    Colour Code 1 Core : Brown
    2 Cores : Brown or Blue
    3 Cores : Brown, Black, Grey
    4 Cores : Blue, Brown, Black, Grey
    5 Cores : Green-yellow, Blue, Brown, Black, Grey
    Above 5 Cores : White Cores with black numbers
    Filler(optional) PVC or Polypropylene yarn
    Binder Tape(optional) Polyester (Mylar) tape
    Inner Sheath/Bedding PVC (Polyvinyl Chloride)
    Armour Single Core : AWA (Aluminum Wire Armour)
    Multi Core : SWA (Steel Wire or Tape Armour)
    Outer Sheath PVC(Polyvinyl Chloride), type TM1

    TECHNICAL INFORMATION

    Voltage rating 600/1000V
    Temperature rating -20°C to +60°C
    Bending radius Single core : 10 x overall diameter
    Multicores : 8 x overall diameter
    Flame retardant IEC60332 part 1, BS4066 part 1

    CABLE PARAMETER

    Nominal cross-sectional area Nominal insulation thickness Nominal bedding thickness Nominal wire armor dia. Armour strip Nominal sheath thickness Approx. overall diameter Approx.cable weight
    thickness width wire armor strip armor
    extruded bedding taped bedding
    mm² mm mm mm mm mm mm mm mm mm kg/km
    3x16 1 0.8 1.25 0.6 2.4 1.6 21.7 21.7 20.4 925
    3x25 1.2 1 1.6 0.6 2.4 1.7 23.9 23.5 21.5 1150
    3x25* 1.2 1 1.6 0.6 2.4 1.7 25.8 25.4 23.4 1150
    3x35 1.2 1 1.6 0.6 2.4 1.8 26.4 26.0 24.1 1345
    3x35* 1.2 1 1.6 0.6 2.4 1.8 28.7 28.3 27.3 1345
    3x50* 1.4 1 1.6 1 3.6 1.9 28.9 28.5 26.4 1610
    3x70* 1.4 1.2 2 1 3.6 2 33 32.2 30.2 2220
    3x95* 1.6 1.2 2 1.4 4.8 2.1 37.1 36.3 35.1 2745
    3x120* 1.6 1.2 2 1.4 4.8 2.2 39.7 38.9 37.7 3145
    3x150* 1.8 1.4 2.5 1.4 4.8 2.4 44.7 43.5 41.3 4020
    3x185* 2 1.4 2.5 1.4 4.8 2.5 48.7 47.5 45.3 4730
    3x240* 2.2 1.6 2.5 1.8 6.4 2.6 54.2 52.6 51.2 5820
    3x300* 2.4 1.6 2.5 1.8 6.4 2.8 59.2 57.6 56.2 6850

    *Solid shaped conductor (class 1)
