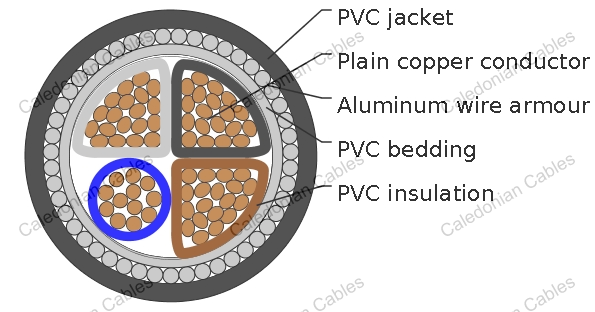

    3+1 Core (4 Core with reduced neutral) cables with stranded copper conductors

    APPLICATION

    These power and control cables are used for electricity supply in low voltage installation system. They are well adapted to underground use in industrial applications where chemical and mechanical protections are needed (refinery areas, chemical plant...).

    CONSTRUCTION

    Conductor Solid Aluminum or Copper conductor, round stranded or shaped, Class 2 to BS 6460, IEC 60228.
    Insulation PVC(Polyvinyl Chloride) type TI1
    Colour Code 1 Core : Brown
    2 Cores : Brown or Blue
    3 Cores : Brown, Black, Grey
    4 Cores : Blue, Brown, Black, Grey
    5 Cores : Green-yellow, Blue, Brown, Black, Grey
    Above 5 Cores : White Cores with black numbers
    Filler(optional) PVC or Polypropylene yarn
    Binder Tape(optional) Polyester (Mylar) tape
    Inner Sheath/Bedding PVC (Polyvinyl Chloride)
    Armour Single Core : AWA (Aluminum Wire Armour)
    Multi Core : SWA (Steel Wire or Tape Armour)
    Outer Sheath PVC(Polyvinyl Chloride), type TM1

    TECHNICAL INFORMATION

    Voltage rating 600/1000V
    Temperature rating -20°C to +60°C
    Bending radius Single core : 10 x overall diameter
    Multicores : 8 x overall diameter
    Flame retardant IEC60332 part 1, BS4066 part 1

    CABLE PARAMETER

    Nominal cross-sectional area Nominal insulation thickness Nominal bedding thickness Nominal wire armor dia. Nominal sheath thickness Approx.Overall Diameter Approx.cable weight
    Phase Neutral Phase Neutral
    mm² mm² mm mm mm mm mm mm kg/mm
    3x10 3x6 1.0 0.8 1.0 1.25 1.8 23.4 1370
    3x16 3x10 1.0 1.0 1.0 1.25 1.8 25.0 1620
    3x25* 3x16 1.2 1.0 1.0 1.6 1.8 27.8 1900
    3x35* 3x16 1.2 1.0 1.0 1.6 1.8 29.5 2300
    3x50* 3x25 1.4 1.2 1.0 1.6 1.9 33.1 3050
    3x70* 3x35 1.4 1.2 1.2 2.0 2.0 38.0 4130
    3x95* 3x50 1.6 1.4 1.2 2.0 2.2 43.7 5370
    3x120* 3x70 1.6 1.4 1.4 2.5 2.3 49.0 6840
    3x150* 3x70 1.8 1.4 1.4 2.5 2.4 52.0 8040
    3x185* 3x95 2.0 1.6 1.4 2.5 2.5 57.2 9760
    3x240* 3x120 2.2 1.6 1.6 2.5 2.7 63.7 12210
    3x300* 3x150 2.4 1.8 1.6 2.5 2.9 69.8 14840
    3x300* 3x185 2.4 2.0 1.6 2.5 2.9 71.8 17730
    3x400* 3x185 2.6 2.0 1.8 3.15 3.1 78.6 19090

    *Shaped stranded conductor (class 2)
