    S9 IYXI(c) 60 V

    Applications

    These cables are flame retardant, low smoke and halogen free, used for indoor telecommunication.

    Standards

    IEC 60092-360

    IEC 60332-1

    IEC 60332-3-22

    IEC 60754-1,2

    IEC 61034-1,2

    NEK 606:2016

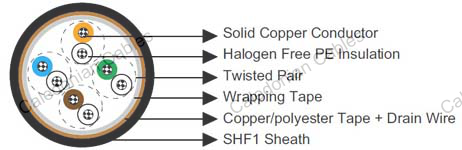

    Construction

    Conductors : Solid tinned copper, 0.5mm.

    Insulation : Halogen-free thermoplastic compound PE.

    Twinning : Colour coded cores twisted together. Pairs are cross-stranded to finished cable or 10 pair units. The units are stranded to 20 - 30 - 50 pair cables. 2 pair is stranded as a star quad.

    Wrapping : Polyester tape.

    Collective Shielding : The cable core is screened by copper backed polyester tape in contact with a 0.5mm solid tinned drain wire.

    Sheath : Halogen-free thermoplastic compound, type SHF1, coloured grey.

    Electrical Characteristics

    Nominal Conductor Diameter mm 0.5
    Maximum Resistant@20℃ Ω/km 95
    Nominal Inductance@1KHz MH/km 0.61
    Mutual Capacitance 1-pair cable nF/km 90
    Mutual Capacitance 2-pair cable nF/km 80
    Mutual Capacitance 4-pair and above cable nF/km 70
    Operating Voltage V 60

    Mechanical and Thermal Properties

    Bending Radius : 8×OD (during installation); 6×OD (fixed installed)

    Temperature Range : -10℃ ~ +60℃

    Dimensions and Weight

    Construction No. of elements × No. of cores in element × Core diameter Nominal Insulation Thickness Nominal Sheath Thickness Nominal Overall Diameter Nominal Weight
    mm mm mm mm kg/km
    1×2×0.5 0.2 1.2 5.0 30
    2×2×0.5 0.2 1.2 5.5 35
    4×2×0.5 0.2 1.2 7.0 55
    10×2×0.5 0.2 1.5 8.5 90
    20×2×0.5 0.2 1.5 11.0 148
    30×2×0.5 0.2 1.5 13.5 210
    50×2×0.5 0.2 1.5 16.0 320
