S110 (Formerly S16) BFOU-HCF(c) 250 V

Applications

These cables are fire resistant, flame retardant, low smoke and halogen free, used for emergency instrumentation, communication, control and alarm systems that need to be operational during a 1100℃ hydrocarbon fire.

Standards

IEC 60092-376

IEC 60092-360

IEC 60331-21

IEC 60332-1

IEC 60332-3-22

IEC 60754-1,2

IEC 61034-1,2

NEK 606:2016

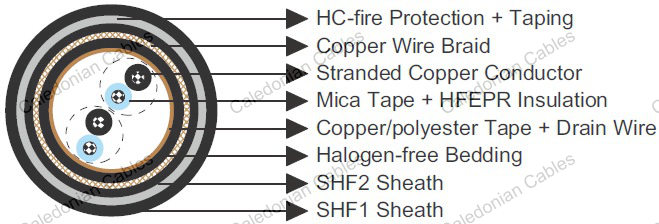

Construction

Conductors : Circular tinned stranded copper wire to IEC 60228 class 2 or class 5.

Insulation : Mica tape + Halogen free EPR compound or Mica tape + XLPE.

Twinning : Colour coded cores twisted together.

Collective Shielding : Pairs/triples are layed up and collectively screened by copper backed polyester tape in contact with a stranded tinned copper drain wire. Pairs/triples are numbered with numbered tape or by numbers printed directly on the insulated conductors.

Bedding : Halogen free compound.

Armour : Tinned copper wire braid.

Outer Sheath1 : Halogen free thermosetting compound, SHF2.

HC-fire protection : Extruded thermoplastic fire protection compound.

Taping : Lapped glass fibre tape.

Outer Sheath2 : Flame retardant halogen-free thermoplastic compound, type SHF1, coloured grey (blue for intrinsically safe).

Electrical Characteristics

Mechanical and Thermal Properties

Bending Radius : 20×OD (during installation); 12×OD (fixed installed)

Temperature Range : -20℃ ~ +90℃

Dimensions and Weight
