These unarmoured cables are fire resistant, flame retardant, low smoke and halogen free, used for instrumentation, communication, control and alarm systems.
IEC 60092-376
IEC 60092-360
IEC 60331-21
IEC 60332-1
IEC 60332-3-22
IEC 60754-1,2
IEC 61034-1,2
NEK 606:2016

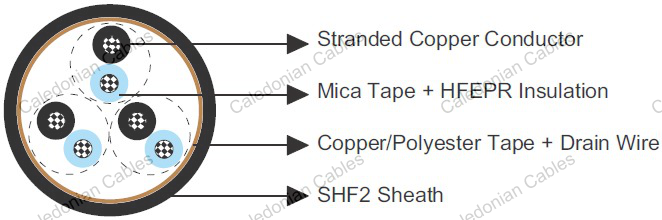

Conductors : Circular tinned annealed stranded copper wire to IEC 60228 class 2 or class 5.
Insulation : Mica tape + Halogen free EPR compound.
Twinning : Colour coded cores twisted together.
Collective Shielding : Pairs/triples are layed up and collectively screened by copper backed polyester tape in contact with a stranded tinned copper drain wire. Pairs/triples are numbered with numbered tape or by numbers printed directly on the insulated conductors.
Outer Sheath : Halogen free thermosetting compound, SHF2, coloured grey (blue for intrinsically safe).
| Nominal Cross Section Area | mm² | 0.75 | 1.0 | 1.5 |
|---|---|---|---|---|
| Nominal Conductor Diameter | mm | 1.1 | 1.3 | 1.6 |
| Maximum Resistant@20℃ | Ω/km | 26.3 | 19.3 | 12.9 |
| Mutual Capacitance | nF/km | 75 | 80 | 85 |
| Nominal Inductance@1KHz | MH/km | 0.727 | 0.686 | 0.667 |
| Maximum L/R@1KHz | μH/Ω | 20 | 25 | 35 |
| Operating Voltage | V | 250 | 250 | 250 |
Bending Radius : 8×OD (during installation); 6×OD (fixed installed)
Temperature Range : -20℃ ~ +90℃
| Construction No. of elements × No. of cores in element × Cross section | Nominal Insulation Thickness | Nominal Sheath Thickness | Nominal Overall Diameter | Nominal Weight |
|---|---|---|---|---|
| mm² | mm | mm | mm | kg/km |
| 2×2×0.75 | 0.6 | 1.1 | 10.2 | 185 |
| 4×2×0.75 | 0.6 | 1.2 | 12.5 | 240 |
| 7×2×0.75 | 0.6 | 1.4 | 15.0 | 350 |
| 8×2×0.75 | 0.6 | 1.4 | 16.3 | 395 |
| 12×2×0.75 | 0.6 | 1.5 | 19.5 | 540 |
| 16×2×0.75 | 0.6 | 1.6 | 21.8 | 690 |
| 19×2×0.75 | 0.6 | 1.7 | 23.2 | 780 |
| 24×2×0.75 | 0.6 | 1.8 | 26.7 | 985 |
| 32×2×0.75 | 0.6 | 2.1 | 29.6 | 1225 |
| 2×3×0.75 | 0.6 | 1.2 | 12.0 | 205 |
| 3×3×0.75 | 0.6 | 1.2 | 13.1 | 265 |
| 4×3×0.75 | 0.6 | 1.3 | 14.4 | 320 |
| 7×3×0.75 | 0.6 | 1.3 | 17.4 | 475 |
| 8×3×0.75 | 0.6 | 1.5 | 19.5 | 590 |
| 12×3×0.75 | 0.6 | 1.6 | 22.9 | 745 |
| 16×3×0.75 | 0.6 | 1.7 | 25.6 | 965 |
| 19×3×0.75 | 0.6 | 1.8 | 27.2 | 1095 |
| 24×3×0.75 | 0.6 | 2.0 | 31.6 | 1405 |
| 2×2×1.0 | 0.6 | 1.1 | 10.7 | 210 |
| 4×2×1.0 | 0.6 | 1.1 | 13.3 | 285 |
| 7×2×1.0 | 0.6 | 1.4 | 16.0 | 415 |
| 8×2×1.0 | 0.6 | 1.4 | 17.3 | 465 |
| 12×2×1.0 | 0.6 | 1.6 | 20.8 | 645 |
| 16×2×1.0 | 0.6 | 1.7 | 23.3 | 825 |
| 19×2×1.0 | 0.6 | 1.8 | 24.7 | 940 |
| 24×2×1.0 | 0.6 | 1.9 | 28.8 | 1200 |
| 32×2×1.0 | 0.6 | 2.3 | 31.8 | 1495 |
| 3×3×1.0 | 0.6 | 1.2 | 14.0 | 310 |
| 4×3×1.0 | 0.6 | 1.4 | 15.3 | 380 |
| 7×3×1.0 | 0.6 | 1.6 | 18.6 | 570 |
| 12×3×1.0 | 0.6 | 1.6 | 24.4 | 900 |
| 16×3×1.0 | 0.6 | 1.7 | 27.3 | 1160 |
| 19×3×1.0 | 0.6 | 1.9 | 29.0 | 1325 |
| 24×3×1.0 | 0.6 | 2.1 | 33.7 | 1700 |
| 2×2×1.5 | 0.7 | 1.2 | 12.1 | 275 |
| 4×2×1.5 | 0.7 | 1.3 | 15.2 | 380 |
| 7×2×1.5 | 0.7 | 1.5 | 18.4 | 565 |
| 8×2×1.5 | 0.7 | 1.5 | 20.0 | 640 |
| 12×2×1.5 | 0.7 | 1.7 | 24.3 | 895 |
| 16×2×1.5 | 0.7 | 1.8 | 27.2 | 1150 |
| 19×2×1.5 | 0.7 | 1.9 | 28.6 | 1295 |
| 24×2×1.5 | 0.7 | 2.1 | 33.5 | 1670 |
| 32×2×1.5 | 0.7 | 2.3 | 37.0 | 2095 |
| 2×3×1.5 | 0.7 | 1.3 | 15.0 | 310 |
| 3×3×1.5 | 0.7 | 1.3 | 16.0 | 420 |
| 4×3×1.5 | 0.7 | 1.4 | 17.7 | 515 |
| 7×3×1.5 | 0.7 | 1.6 | 21.5 | 785 |
| 8×3×1.5 | 0.7 | 1.6 | 23.5 | 930 |
| 12×3×1.5 | 0.7 | 1.8 | 28.5 | 1255 |
| 16×3×1.5 | 0.7 | 1.9 | 31.9 | 1630 |
| 19×3×1.5 | 0.7 | 2.0 | 33.8 | 1855 |
| 24×3×1.5 | 0.7 | 2.2 | 39.3 | 2375 |
