    S106 (Formerly S12) RU(c) 250 V

    Applications

    These cables are flame retardant, low smoke, halogen free and mud resistant, used for instrumentation, communication, control and alarm systems.

    Standards

    IEC 60092-376

    IEC 60092-360

    IEC 60332-1

    IEC 60332-3-22

    IEC 60754-1,2

    IEC 61034-1,2

    NEK 606:2016

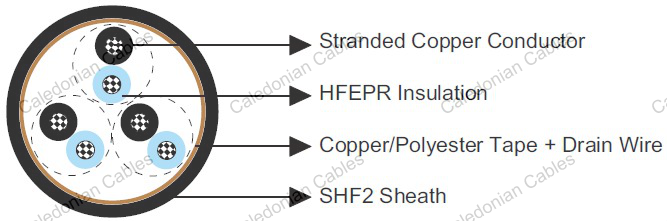

    Construction

    Conductors: Circular tinned annealed stranded copper wire to IEC 60228 class 2 or class 5.

    Insulation: Halogen free EPR compound.

    Twinning: Colour coded cores twisted together.

    Collective Shielding: Pairs/triples are layed up and collectively screened by copper backed polyester tape in contact with a stranded tinned copper drain wire. Pairs/triples are numbered with numbered tape or by numbers printed directly on the insulated conductors.

    Outer Sheath: Halogen free thermosetting compound, SHF2, coloured grey (blue for intrinsically safe).

    Electrical Characteristics

    Nominal Cross Section Area mm² 0.75 1.0 1.5
    Nominal Conductor Diameter mm 1.1 1.3 1.6
    Maximum Resistant@20℃ Ω/km 26.3 19.3 12.9
    Mutual Capacitance nF/km 80 90 100
    Nominal Inductance@1KHz MH/km 0.682 0.645 0.632
    Maximum L/R@1KHz μH/Ω 20 25 35
    Operating Voltage V 250 250 250

    Mechanical and Thermal Properties

    Bending Radius : 8×OD (during installation); 6×OD (fixed installed)

    Temperature Range : -20℃ ~ +90℃

    Dimensions and Weight

    Construction No. of elements × No. of cores in element × Cross section Nominal Insulation Thickness Nominal Sheath Thickness Nominal Overall Diameter Nominal Weight
    mm² mm mm mm kg/km
    2×2×0.75 0.6 1.1 9.4 160
    4×2×0.75 0.6 1.1 11.5 215
    7×2×0.75 0.6 1.3 13.6 300
    8×2×0.75 0.6 1.3 14.7 340
    12×2×0.75 0.6 1.4 17.6 465
    16×2×0.75 0.6 1.5 19.7 595
    19×2×0.75 0.6 1.5 20.7 665
    24×2×0.75 0.6 1.7 24.1 850
    32×2×0.75 0.6 2.0 26.7 1065
    2×3×0.75 0.6 1.1 11.0 170
    3×3×0.75 0.6 1.1 12.1 235
    4×3×0.75 0.6 1.2 13.1 280
    7×3×0.75 0.6 1.4 15.7 410
    8×3×0.75 0.6 1.4 17.5 490
    12×3×0.75 0.6 1.5 20.6 645
    16×3×0.75 0.6 1.6 23.1 835
    19×3×0.75 0.6 1.7 24.3 940
    24×3×0.75 0.6 1.8 28.2 1210
    2×2×1.0 0.6 1.1 9.9 190
    4×2×1.0 0.6 1.1 12.3 255
    7×2×1.0 0.6 1.3 14.7 370
    8×2×1.0 0.6 1.3 15.7 410
    12×2×1.0 0.6 1.5 18.9 565
    16×2×1.0 0.6 1.6 21.1 730
    19×2×1.0 0.6 1.7 22.5 830
    24×2×1.0 0.6 1.8 25.9 1050
    32×2×1.0 0.6 2.1 28.7 1315
    3×3×1.0 0.6 1.1 12.9 280
    4×3×1.0 0.6 1.3 14.0 335
    7×3×1.0 0.6 1.5 16.9 500
    12×3×1.0 0.6 1.6 22.1 795
    16×3×1.0 0.6 1.6 24.8 1025
    19×3×1.0 0.6 1.8 26.3 1175
    24×3×1.0 0.6 2.0 30.4 1490
    2×2×1.5 0.7 1.2 11.3 250
    4×2×1.5 0.7 1.2 14.1 345
    7×2×1.5 0.7 1.4 17.2 515
    8×2×1.5 0.7 1.4 18.4 575
    12×2×1.5 0.7 1.6 22.4 810
    16×2×1.5 0.7 1.7 25.0 1045
    19×2×1.5 0.7 1.8 26.4 1175
    24×2×1.5 0.7 1.9 30.7 1505
    32×2×1.5 0.7 2.2 33.9 1890
    2×3×1.5 0.7 1.2 13.5 265
    3×3×1.5 0.7 1.2 14.9 380
    4×3×1.5 0.7 1.3 16.3 465
    7×3×1.5 0.7 1.5 19.8 705
    8×3×1.5 0.7 1.5 21.5 820
    12×3×1.5 0.7 1.7 26.2 1140
    16×3×1.5 0.7 1.8 29.4 1475
    19×3×1.5 0.7 1.9 30.9 1675
    24×3×1.5 0.7 2.1 36.2 2160
