    S103 (FormerlyS3 or S3/S7) BFOU(i) 250V

    Applications

    These cables are fire resistant, flame retardant, low smoke, halogen free and mud resistant, used for instrumentation, communication, control and alarm systems.

    Standards

    IEC 60092-376

    IEC 60092-360

    IEC 60331-21

    IEC 60332-1

    IEC 60332-3-22

    IEC 60754-1,2

    IEC 61034-1,2

    NEK 606:2016

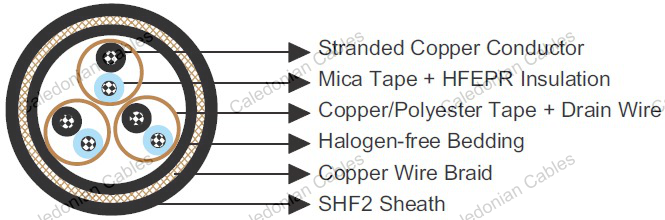

    Construction

    Conductors : Circular tinned annealed stranded copper wire to IEC 60228 class 2 or class 5.

    Insulation : Mica tape + Halogen free EPR compound or Mica tape + XLPE.

    Twinning : Colour coded cores twisted together.

    Individual Shielding : Each pairs/triples are screened by copper backed polyester tape in contact with a stranded tinned copper drain wire and wrapped with polyester tape. Pairs/triples are numbered with numbered tape or by numbers printed directly on the insulated conductors.

    Bedding : Halogen free compound.

    Armour : Tinned copper wire braid.

    Outer Sheath : Halogen free thermosetting compound, SHF2 (formerly TYPE S3).

    Halogen free MUD resistant thermosetting compound, SHF MUD (for formerlyTYPE S3/S7), coloured grey (blue for intrinsically safe).

    Electrical Characteristics

    Nominal Cross Section Area mm² 0.75 1.0 1.5 2.5
    Nominal Conductor Diameter mm 1.1 1.3 1.6 2.0
    Maximum Resistant@20℃ Ω/km 26.3 19.3 12.9 8.02
    Mutual Capacitance nF/km 85 95 100 110
    Nominal Inductance@1KHz MH/km 0.731 0.691 0.673 0.629
    Maximum L/R@1KHz μH/Ω 20 25 35 55
    Operating Voltage V 250 250 250 250

    Mechanical and Thermal Properties

    Bending Radius : 8×OD (during installation); 6×OD (fixed installed)

    Temperature Range : -20℃ ~ +90℃

    Dimensions and Weight

    Construction No. of elements × No. of cores in element × Cross section Nominal Insulation Thickness Nominal Sheath Thickness Nominal Overall Diameter Nominal Weight
    Inner Outer
    mm² mm mm mm mm kg/km
    1×2×0.75 0.6 1.1 1.2 12.1 225
    2×2×0.75 0.6 1.1 1.3 16.7 405
    3×2×0.75 0.6 1.1 1.4 17.5 540
    4×2×0.75 0.6 1.1 1.4 18.6 610
    5×2×0.75 0.6 1.1 1.5 20.2 705
    6×2×0.75 0.6 1.1 1.5 21.7 805
    7×2×0.75 0.6 1.1 1.5 21.7 830
    8×2×0.75 0.6 1.1 1.6 23.6 905
    9×2×0.75 0.6 1.1 1.7 25.1 1000
    10×2×0.75 0.6 1.1 1.7 26.2 1030
    12×2×0.75 0.6 1.1 1.7 26.8 1145
    14×2×0.75 0.6 1.1 1.8 28.2 1205
    15×2×0.75 0.6 1.1 1.8 30.0 1305
    16×2×0.75 0.6 1.1 1.9 30.6 1415
    18×2×0.75 0.6 1.1 1.9 32.1 1475
    19×2×0.75 0.6 1.2 1.9 32.7 1575
    20×2×0.75 0.6 1.2 2.0 34.1 1700
    21×2×0.75 0.6 1.2 2.0 35.0 1765
    23×2×0.75 0.6 1.2 2.0 35.5 1895
    24×2×0.75 0.6 1.2 2.1 37.7 1980
    27×2×0.75 0.6 1.2 2.2 38.7 2165
    30×2×0.75 0.6 1.2 2.2 39.9 2335
    33×2×0.75 0.6 1.2 2.3 41.5 2535
    37×2×0.75 0.6 1.2 2.3 42.7 2725
    1×3×0.75 0.6 1.1 1.1 11.9 245
    2×3×0.75 0.6 1.1 1.4 15.5 420
    3×3×0.75 0.6 1.1 1.4 18.4 580
    4×3×0.75 0.6 1.1 1.4 19.7 675
    7×3×0.75 0.6 1.1 1.6 23.6 960
    8×3×0.75 0.6 1.1 1.7 25.0 980
    12×3×0.75 0.6 1.3 1.8 29.6 1435
    16×3×0.75 0.6 1.4 1.9 32.6 1770
    19×3×0.75 0.6 1.4 2.1 34.4 1985
    24×3×0.75 0.6 1.8 2.2 39.6 2580
    1×2×1.0 0.6 1.1 1.2 12.5 245
    2×2×1.0 0.6 1.1 1.4 17.6 450
    3×2×1.0 0.6 1.1 1.4 18.3 600
    4×2×1.0 0.6 1.1 1.4 19.3 625
    5×2×1.0 0.6 1.1 1.5 21.1 920
    6×2×1.0 0.6 1.1 1.6 22.8 950
    7×2×1.0 0.6 1.1 1.6 22.8 860
    8×2×1.0 0.6 1.1 1.6 24.7 985
    9×2×1.0 0.6 1.1 1.7 26.3 1135
    10×2×1.0 0.6 1.1 1.7 27.4 1170
    12×2×1.0 0.6 1.1 1.8 28.3 1300
    14×2×1.0 0.6 1.1 1.8 29.5 1380
    15×2×1.0 0.6 1.1 1.9 31.6 1510
    16×2×1.0 0.6 1.1 1.9 32.1 1620
    18×2×1.0 0.6 1.2 2.0 34.2 1745
    19×2×1.0 0.6 1.2 2.0 34.5 1830
    20×2×1.0 0.6 1.2 2.1 36.0 1975
    21×2×1.0 0.6 1.2 2.1 37.3 2135
    23×2×1.0 0.6 1.2 2.1 37.9 2295
    24×2×1.0 0.6 1.2 2.2 39.8 2335
    27×2×1.0 0.6 1.2 2.2 40.6 2500
    30×2×1.0 0.6 1.2 2.3 42.1 2720
    33×2×1.0 0.6 1.2 2.3 43.6 2940
    37×2×1.0 0.6 1.4 2.4 45.4 3230
    1×3×1.0 0.6 1.1 1.2 12.6 275
    2×3×1.0 0.6 1.1 1.4 18.8 640
    3×3×1.0 0.6 1.1 1.5 19.3 665
    4×3×1.0 0.6 1.1 1.5 20.9 775
    5×3×1.0 0.6 1.1 1.6 22.8 965
    6×3×1.0 0.6 1.1 1.7 25.4 1135
    7×3×1.0 0.6 1.1 1.7 25.4 1180
    8×3×1.0 0.6 1.1 1.7 27.0 1270
    9×3×1.0 0.6 1.1 1.8 28.9 1450
    10×3×1.0 0.6 1.1 1.9 31.1 1455
    12×3×1.0 0.6 1.1 1.9 32.0 1685
    14×3×1.0 0.6 1.2 2.0 33.8 1820
    15×3×1.0 0.6 1.2 2.0 34.8 1935
    16×3×1.0 0.6 1.2 2.1 36.0 2105
    18×3×1.0 0.6 1.2 2.1 38.1 2310
    19×3×1.0 0.6 1.2 2.2 38.6 2355
    20×3×1.0 0.6 1.2 2.2 39.6 2590
    21×3×1.0 0.6 1.2 2.2 40.4 2685
    23×3×1.0 0.6 1.2 2.3 42.0 2935
    24×3×1.0 0.6 1.2 2.3 42.8 3145
    27×3×1.0 0.6 1.4 2.4 45.3 3255
    30×3×1.0 0.6 1.4 2.5 47.4 3565
    32×3×1.0 0.6 1.4 2.5 48.6 3755
    1×2×1.5 0.7 1.1 1.2 13.5 295
    2×2×1.5 0.7 1.1 1.4 19.2 545
    3×2×1.5 0.7 1.1 1.5 20.2 725
    4×2×1.5 0.7 1.1 1.5 21.5 770
    5×2×1.5 0.7 1.1 1.6 23.4 975
    6×2×1.5 0.7 1.1 1.7 25.4 1130
    7×2×1.5 0.7 1.1 1.7 25.4 1170
    8×2×1.5 0.7 1.1 1.7 27.5 1225
    9×2×1.5 0.7 1.1 1.8 29.4 1405
    10×2×1.5 0.7 1.1 1.9 30.9 1440
    12×2×1.5 0.7 1.1 1.9 31.6 1680
    14×2×1.5 0.7 1.2 2.0 33.6 1750
    15×2×1.5 0.7 1.2 2.1 36.0 1910
    16×2×1.5 0.7 1.2 2.1 36.9 2055
    18×2×1.5 0.7 1.2 2.2 38.9 2260
    19×2×1.5 0.7 1.2 2.2 39.3 2395
    20×2×1.5 0.7 1.2 2.2 40.8 2540
    21×2×1.5 0.7 1.2 2.3 42.1 2660
    23×2×1.5 0.7 1.2 2.3 42.7 2865
    24×2×1.5 0.7 1.4 2.4 45.2 3080
    27×2×1.5 0.7 1.4 2.4 46.1 3155
    30×2×1.5 0.7 1.4 2.5 47.8 3440
    32×2×1.5 0.7 1.4 2.6 49.0 3685
    33×2×1.5 0.7 1.4 2.6 49.7 3740
    37×2×1.5 0.7 1.4 2.6 51.2 4040
    1×3×1.5 0.7 1.1 1.3 13.6 325
    2×3×1.5 0.7 1.1 1.5 18.5 560
    3×3×1.5 0.7 1.1 1.5 21.4 800
    4×3×1.5 0.7 1.1 1.6 23.7 975
    5×3×1.5 0.7 1.1 1.7 25.4 1195
    6×3×1.5 0.7 1.1 1.8 28.3 1405
    7×3×1.5 0.7 1.1 1.8 28.3 1470
    8×3×1.5 0.7 1.1 1.8 30.2 1585
    9×3×1.5 0.7 1.2 1.9 32.6 1835
    10×3×1.5 0.7 1.2 2.0 35.1 1935
    12×3×1.5 0.7 1.2 2.1 36.8 2115
    14×3×1.5 0.7 1.2 2.1 38.3 2360
    15×3×1.5 0.7 1.2 2.2 39.7 2530
    16×3×1.5 0.7 1.2 2.2 40.8 2775
    18×3×1.5 0.7 1.2 2.3 42.9 2905
    19×3×1.5 0.7 1.2 2.3 43.3 3200
    20×3×1.5 0.7 1.4 2.4 44.9 3305
    21×3×1.5 0.7 1.4 2.4 45.8 3430
    23×3×1.5 0.7 1.4 2.5 47.7 3755
    24×3×1.5 0.7 1.4 2.5 48.6 3925
    27×3×1.5 0.7 1.4 2.6 51.1 4115
    30×3×1.5 0.7 1.4 2.7 53.5 4510
    32×3×1.5 0.7 1.6 2.8 55.5 4850
    1×2×2.5 0.7 1.1 1.3 14.0 340
    2×2×2.5 0.7 1.1 1.5 18.5 560
    3×2×2.5 0.7 1.1 1.5 21.6 865
    4×2×2.5 0.7 1.1 1.6 23.2 1010
    5×2×2.5 0.7 1.1 1.7 25.3 1185
    6×2×2.5 0.7 1.1 1.7 27.4 1370
    7×2×2.5 0.7 1.1 1.7 27.4 1430
    8×2×2.5 0.7 1.1 1.8 29.9 1560
    9×2×2.5 0.7 1.1 1.9 31.9 1780
    10×2×2.5 0.7 1.2 2.0 33.8 1775
    12×2×2.5 0.7 1.2 2.0 34.6 1965
    14×2×2.5 0.7 1.2 2.1 36.9 2275
    15×2×2.5 0.7 1.2 2.2 39.5 2480
    16×2×2.5 0.7 1.2 2.2 40.1 2590
    18×2×2.5 0.7 1.2 2.3 42.3 2825
    19×2×2.5 0.7 1.2 2.3 42.7 2930
    20×2×2.5 0.7 1.4 2.4 44.8 3240
    21×2×2.5 0.7 1.4 2.4 46.1 3375
    23×2×2.5 0.7 1.4 2.5 46.9 3560
    24×2×2.5 0.7 1.4 2.5 49.1 3660
    27×2×2.5 0.7 1.4 2.6 50.3 4000
    30×2×2.5 0.7 1.4 2.7 52.2 4370
    33×2×2.5 0.7 1.4 2.7 54.1 4735
    37×2×2.5 0.7 1.6 2.8 56.4 5225
    1×3×2.5 0.7 1.1 1.2 14.5 380
    2×3×2.5 0.7 1.1 1.6 22.5 950
    3×3×2.5 0.7 1.1 1.6 23.4 1055
    4×3×2.5 0.7 1.1 1.7 25.3 1250
    5×3×2.5 0.7 1.1 1.7 27.4 1460
    6×3×2.5 0.7 1.1 1.9 30.7 1735
    7×3×2.5 0.7 1.1 1.9 30.7 1830
    8×3×2.5 0.7 1.2 2.0 33.3 2025
    9×3×2.5 0.7 1.2 2.0 35.4 2290
    10×3×2.5 0.7 1.2 2.2 38.8 2405
    12×3×2.5 0.7 1.2 2.2 40.0 2685
    14×3×2.5 0.7 1.2 2.3 41.9 3000
    15×3×2.5 0.7 1.2 2.3 43.1 3190
    16×3×2.5 0.7 1.4 2.4 44.9 3420
    18×3×2.5 0.7 1.4 2.5 47.2 3740
    19×3×2.5 0.7 1.4 2.5 47.6 3885
    20×3×2.5 0.7 1.4 2.5 48.9 4185
    21×3×2.5 0.7 1.4 2.6 50.0 4370
    23×3×2.5 0.7 1.4 2.7 52.1 4760
    24×3×2.5 0.7 1.4 2.7 53.0 4785
    27×3×2.5 0.7 1.6 2.8 56.2 5335
    30×3×2.5 0.7 1.6 2.9 58.8 5855
    32×3×2.5 0.7 1.6 3.0 60.6 6215
