    RG59 Armoured Coaxial Cable

    Applications

    These 75Ω coaxial cables are suitable for installation on board of ships and other indoor marine environments.

    Standards

    IEC 60092-350

    IEC 60332-3-22

    IEC 60754-1,2

    IEC 61034-1,2

    NEK 606:2016

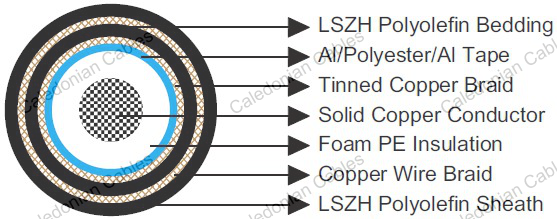

    Construction

    Conductors : 20AWG solid bare copper.

    Insulation : Foam PE.

    Shielding1 : Al/Polyester/Al tape.

    Shielding2 : Tinned copper braid.

    Bedding : Low smoke and halogen-free polyolefin, coloured black.

    Armour : Tinned copper wire braid.

    Outer Sheath : Low smoke and halogen-free polyolefin.

    Electrical Characteristics

    AWG   20
    Nominal Conductor Diameter mm 0.8
    Impedance Ω 75+/-5
    Nominal Attenuation@100MHz dB/100m 7.6
    Nominal Attenuation@270MHz dB/100m 12.5
    Nominal Attenuation@540MHz dB/100m 17.9
    Nominal Attenuation@720MHz dB/100m 20.9
    Nominal Attenuation@750MHz dB/100m 21.3
    Nominal Attenuation@1000MHz dB/100m 24.9
    Capacitance pF/m 53.5
    Velocity of Propagation % 83
    Conductor DCR Ω/km 32.8
    Shield DCR Ω/km 12.5
    Inductance μH/m 0.318
    Time Delay ns/m 4.0

    Mechanical and Thermal Properties

    Bending Radius : 15×OD

    Temperature Range : -30℃ ~ +75℃

    Dimensions and Weight

    Nominal Inner Conductor Diameter Nominal Insulation Thickness Nominal Sheath Thickness Nominal Overall Diameter Nominal Weight
    mm mm mm mm kg/km
    0.8 1.4 1.2 10.0 177
