    P125 SFOU 0.6/1 kV

    Applications

    These cables are fire resistant, flame retardant, low smoke and halogen free, used for control, power and lighting systems.

    Standards

    IEC 60092-353

    IEC 60092-360

    IEC 60331-21

    IEC 60332-1

    IEC 60332-3-22

    IEC 60754-1,2

    IEC 61034-2

    NEK 606:2016

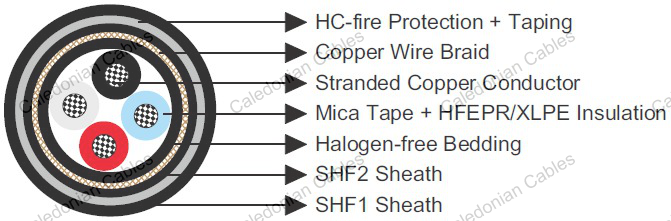

    Construction

    Conductors: Tinned stranded copper to IEC 60228 class 2 or class 5.

    Insulation: Fire resistant silicon compound.

    Bedding: Extruded halogen-free compound.

    Amour: Tinned copper wire braid.

    Outer Sheath: Halogen free thermosetting compound, SHF2, coloured black.

    Electrical Characteristics

    Nominal Cross Section Area mm² 1.5 2.5 4 6 10 16 25 35 50 70 95 120 150 185 240 300
    Nominal Conductor Diameter mm 1.6 2.1 2.6 3.2 4.0 5.1 6.5 7.4 8.7 10.3 12.2 13.8 15.1 17.0 19.6 21.9
    Maximum DC Resistant@20℃ Ω/km 12.2 7.56 4.7 3.11 1.84 1.16 0.734 0.529 0.391 0.27 0.195 0.154 0.126 0.1 0.0762 0.0607
    Continuous Current Rating@45℃ 1 Core A 23 30 40 52 72 96 127 157 196 242 293 339 389 444 522 601
    Continuous Current Rating@45℃ 2 Core A 20 26 34 44 61 82 108 133 167 206 249 288 331 444 444 511
    Continuous Current Rating@45℃ 3&4 Core A 16 21 28 36 50 67 89 110 137 169 205 237 272 311 365 421
    Short Circuit Current 1s A 210 360 570 860 1430 2290 3580 5010 7150 10020 13590 17170 21460 26470 34340 42930
    Operating Voltage KV 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1 0.6/1

    Mechanical and Thermal Properties

    Bending Radius : 8×OD (during installation); 6×OD (fixed installed)

    Temperature Range : -20℃ ~ +90℃

    Dimensions and Weight

    Construction No. of cores × Cross section Nominal Insulation Thickness Diameter under Armour Nominal Overall Diameter Nominal Weight
    mm² mm mm mm kg/km
    1×16 1.0 10.9 15.0 470
    1×25 1.2 12.6 17. 620
    1×35 1.2 13.6 18.0 754
    1×50 1.4 14.7 20.0 900
    1×70 1.4 16.4 21.0 1140
    1×95 1.6 18.6 24.0 1500
    1×120 1.6 20.4 26.0 1800
    1×150 1.8 22.2 28.0 2150
    1×185 2.0 24.5 30.0 2630
    1×240 2.2 27.8 34.0 3320
    1×300 2.4 31.0 38.0 4030
    2×1.5 1.0 10.5 15.0 330
    2×2.5 1.0 11.7 16.0 390
    2×4 1.0 13.6 18.0 490
    2×6 1.0 14.9 20.0 605
    2×10 1.0 16.5 21.0 800
    2×16 1.0 18.9 24.0 1060
    3×1.5 1.0 11.2 15.0 370
    3×2.5 1.0 12.4 17.0 450
    3×4 1.0 14.5 19.0 570
    3×6 1.0 15.8 21.0 700
    3×10 1.0 17.5 23.0 980
    3×16 1.0 20.5 26.0 1350
    3×25 1.2 24.4 30.0 1860
    3×35 1.2 26.4 32.0 2140
    3×50 1.4 29.0 35.0 2670
    3×70 1.4 32.7 40.0 3540
    3×95 1.6 37.4 45.0 4710
    3×120 1.6 40.8 49.0 5640
    3×150 1.8 45.1 54.0 6930
    3×185 2.0 50.1 59.0 8550
    3×240 2.2 56.8 66.0 10830
    3×300 2.4 63.7 74.0 12980
    4×1.5 1.0 12.1 17.0 430
    4×2.5 1.0 13.5 18.0 510
    4×4 1.0 15.8 21.0 670
    4×6 1.0 17.3 22.0 840
    4×10 1.0 19.6 25.0 1150
    4×16 1.0 22.5 28.0 1560
    4×25 1.2 26.8 33.0 2150
    4×35 1.2 29.1 35.0 2930
    4×50 1.4 31.9 39.0 3440
    4×70 1.4 36.0 43.0 4460
    4×95 1.6 41.3 49.0 5960
    4×120 1.6 45.1 53.0 7180
    4×150 1.8 49.8 59.0 8770
    4×185 2.0 55.8 65.0 10850
    4×240 2.2 62.7 73.0 13880
    4×300 2.4 70.5 81.0 16650
    5×1.5 1.0 13.4 18.0 500
    7×1.5 1.0 14.6 19.0 590
    12×1.5 1.0 19.4 25.0 960
    19×1.5 1.0 22.7 28.0 1245
    27×1.5 1.0 27.3 33.0 1710
    37×1.5 1.0 30.8 37.0 2240
    5×2.5 1.0 14.8 19.0 600
    7×2.5 1.0 16.1 21.0 720
    12×2.5 1.0 21.5 27.0 1150
    19×2.5 1.0 25.4 31.0 1570
    27×2.5 1.0 30.6 37.0 2270
    30×2.5 1.0 34.4 41.0 2850
    37×2.5 1.0 34.4 41.0 2850
