P109 TFLI (Formerly P16 IFLI) 250 V

These cables are flame retardant, low smoke and halogen free, used for living, quarter and office areas.

IEC 60092-376

IEC 60092-360

IEC 60332-1

IEC 60332-3-22

IEC 60754-1,2

IEC 61034-1,2

NEK 606:2016

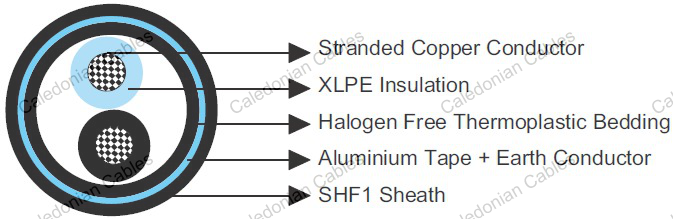

Conductors : Circular stranded copper wire to IEC 60228 class 2.

Insulation : XLPE.

Bedding : Halogen free thermoplastic compound.

Metal Screen : Longitudinal aluminium tape, thickness 0.2 mm in contact with a stranded copper earth conductor.

Outer Sheath : Halogen free thermoplastic compound, SHF1, coloured grey.

Nominal Cross Section Area	mm²	2.5
Maximum Resistant@20℃	Ω/km	7.41
Continuous Current Rating@45℃ 2 Core	A	26
Short Circuit Current 1s	A	360
Operating Voltage	V	250

Bending Radius : 8×OD (during installation); 6×OD (fixed installed)

Temperature Range : -20℃ ~ +90℃

Construction No. of elements × No. of cores in element × Cross section	Nominal Insulation Thickness	Nominal Sheath Thickness		Nominal Overall Diameter	Nominal Weight
	Nominal Insulation Thickness	Inner	Outer	Nominal Overall Diameter	Nominal Weight
mm²	mm	mm	mm	mm	kg/km
2×1×2.5	0.7	1.1	1.2	10.0	180
