F104 (Formerly F6) AICI

These optical fibre cables are flame retardant, low smoke and halogen free, used for instrumentation, data and communication systems.

IEC 60794

IEC 60811-2-1

IEC 60332-3-24

IEC 60332-3-22

IEC 60754-1,2

IEC 61034-1,2

NEK 606:2016

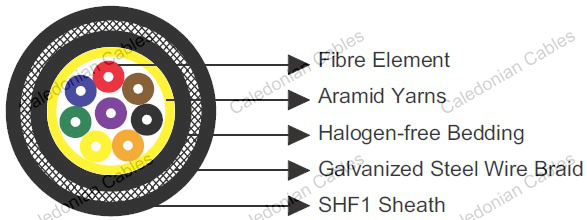

Fibre Element : Tight buffered fibres.

Central Strength Element : Fibre reinforced plastic (FRP) and/or aramid yarns.

Bedding : Halogen free and flame retardant thermoplastic compound.

Armour : Galvanized steel wire braid.

Outer Sheath : Halogen free and flame retardant, UV-stabilized, thermoplastic compound, SHF1.

Fibre Type		9/125	50/125	50/125	62.5/125
ITU-T type		G652.D	G651	G651	-
IEC11801 Classiﬁcation		OS1 & OS2	OM2	OM3	OM1
Core Diameter	μm	8.7 ± 0.4	50 ± 3.0	50 ± 3.0	62.5 ± 3.0
Cladding Diameter	μm	125 ± 1.0	125 ± 2.0	125 ± 2.0	125 ± 2.0
Coating Diameter	μm	245 ± 10	245 ± 10	245 ± 10	245 ± 10
Maximum Attenuation
@850 nm	dB/km	-	3.0	3.0	3.5
@1300 nm	dB/km	-	1.5	1.0	1.5
@1310 nm	dB/km	0.36	-	-	-
@1550 nm	dB/km	0.22	-	-	-
Minimum Bandwidth(OFL*)
@850 nm	MHz.km	-	500	1500	200
@1300 nm	MHz.km	-	500	500	600
Maximum Chromatic Dispersion
1285-1330 nm	ps/nm·km	2.8	-	-	-
1550 nm	ps/nm·km	18	-	-	-
Zero Dispersion Wavelength	nm	1300~1324	-	-	-

Bending Radius : 20×OD (during installation); 10×OD (fixed installed)

Temperature Range : -40℃ ~ +70℃

No. of Fibres	Secondary Coating	Nominal Overall Diameter	Nominal Weight
	mm	mm	kg/km
2	0.9	7.8	100
4	0.9	8.2	110
8	0.9	9.4	125
12	0.9	10.3	145
24	0.9	12.0	185
