    F101 (Formerly F1) QFCI

    Applications

    These steel armoured optical fibre cables are flame retardant, low smoke, halogen free and fire resistant, used for communication and emergency systems that need to be operational during fire.

    Standards

    IEC 60794

    IEC 60811-2-1

    IEC 60331-25

    IEC 60332-3-24

    IEC 60332-3-22

    IEC 60754-1,2

    IEC 61034-1,2

    NEK 606:2016

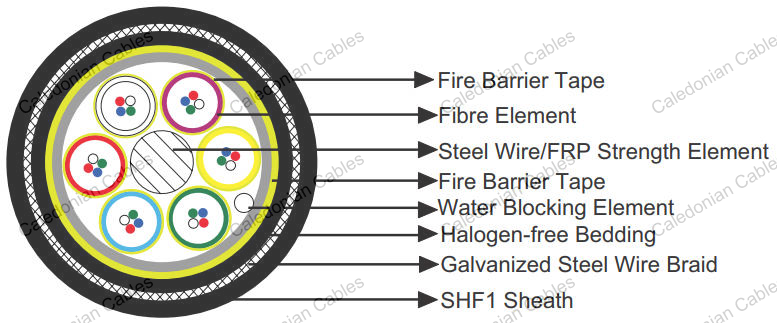

    Construction

    Fibre Element : Loose tube core design.

    Central Strength Element : Steel wire or fibre reinforced plastic (FRP).

    Bedding : Halogen free and flame retardant thermoplastic compound.

    Armour : Galvanized steel wire braid.

    Outer Sheath : Halogen free and flame retardant, UV-stabilized, thermoplastic compound, SHF1.

    Electrical Characteristics

    Fibre Type   9/125 50/125 50/125 62.5/125
    ITU-T type   G652.D G651 G651 -
    IEC11801 Classification   OS1 & OS2 OM2 OM3 OM1
    Core Diameter μm 8.7 ± 0.4 50 ± 3.0 50 ± 3.0 62.5 ± 3.0
    Cladding Diameter μm 125 ± 1.0 125 ± 2.0 125 ± 2.0 125 ± 2.0
    Coating Diameter μm 245 ± 10 245 ± 10 245 ± 10 245 ± 10
    Maximum Attenuation
    @850 nm dB/km - 3.0 3.0 3.5
    @1300 nm dB/km - 1.5 1.0 1.5
    @1310 nm dB/km 0.36 - - -
    @1550 nm dB/km 0.22 - - -
    Minimum Bandwidth(OFL*)
    @850 nm MHz.km - 500 1500 200
    @1300 nm MHz.km - 500 500 600
    Maximum Chromatic Dispersion
    1285-1330 nm ps/nmkm 2.8 - - -
    1550 nm ps/nmkm 18 - - -
    Zero Dispersion Wavelength nm 1300~1324 - - -

    Mechanical and Thermal Properties

    Bending Radius : 20×OD (during installation); 10×OD (fixed installed)

    Temperature Range : -40℃ ~ +70℃

    Dimensions and Weight

    No. of Fibres Construction No. of tubes × No. of fibres in each tube Number of Fillers Nominal Loose Tube Diameter Nominal Overall Diameter Nominal Weight
          mm mm kg/km
    2 1×2 5 2.2 13.9 244
    4 1×4 5 2.2 13.9 244
    6 3×2 3 2.2 13.9 244
    8 2×4 4 2.2 13.9 244
    10 5×2 1 2.2 13.9 244
    12 3×4 3 2.2 13.9 244
    16 4×4 2 2.2 13.9 244
    20 5×4 1 2.2 13.9 244
    24 6×4 0 2.2 13.9 244
    32 4×8 2 2.2 13.9 244
    40 5×8 1 2.2 13.9 244
    48 6×8 0 2.2 13.9 244
