Cat6 Cable is a cable standard for Gigabit Ethernet and other network protocol, suitable for 10BaseT, 100BaseTx & 1000BaseT (Gigabit Ethernet) application. In addition, these cables are with copper wire braid armoured & flame retardant mud resistant outer sheath, providing additional mechanically protection still maintaining the flexibility of the cable.
IEC 60332-3-22
IEC 60754-1,2
IEC 61034-1,2
NEK 606:2016
Conductors : 23AWG solid bare copper.
Insulation : HDPE.
Twinning : Two coloured insulated conductors twisted together to form a pair.
Bedding : Flame retardant, low smoke and halogen-free polyolefin, coloured black.
Armour : 0.2/0.3mm copper wire braid.
Outer Sheath : Low smoke and halogen-free polyolefin.

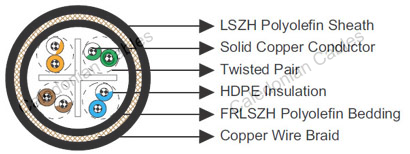

Cat6 F/UTP : These cables have collective shielding of aluminium/Polyester tape with drain wire.

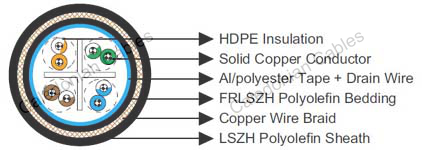

Cat6 SF/UTP : These cables have double collective shieldings of aluminium/Polyester tape & copper wire braid with drain wire.
| AWG | 23 | |
|---|---|---|
| Nominal Conductor Diameter | mm | 0.58 |
| Maximum DC Resistant@20℃ | Ω/100m | 7.5 |
| Maximum DCR Unbalance | % | 3 |
| Maximum Mutual Capacitance | pF/m | 5.6 |
| Maximum Capacitance Unbalance | pF/100m | 330 |
| Characteristic Impedance@1-100MHz | Ω | 100+/-15 |
| Maximum Propagation Delay Skew | ns/100m | 18 |
| FREQ | Maximum Attenuation | Minimum NEXT | Minimum PSNEXT | Minimum ELFEXT | Minimum PSELFEXT | Minimum RL |
|---|---|---|---|---|---|---|
| MHz | dB/100m | dB | dB | dB/100m | dB/100m | dB |
| 0.772 | 1.8 | 76.0 | 74.0 | 70.0 | 67.0 | — |
| 1 | 2.0 | 74.3 | 72.3 | 67.8 | 64.8 | 20.0 |
| 4 | 3.8 | 65.3 | 63.3 | 55.7 | 52.7 | 23.0 |
| 8 | 5.3 | 60.8 | 58.8 | 49.7 | 46.7 | 24.5 |
| 10 | 6.0 | 59.3 | 57.3 | 47.8 | 44.8 | 25.0 |
| 16 | 7.6 | 56.3 | 54.3 | 43.7 | 40.7 | 25.0 |
| 20 | 8.5 | 54.8 | 52.8 | 41.7 | 38.7 | 25.0 |
| 25 | 9.5 | 53.3 | 51.3 | 39.8 | 36.8 | 24.3 |
| 31.25 | 10.7 | 51.9 | 49.9 | 37.9 | 34.9 | 23.6 |
| 62.5 | 15.4 | 47.4 | 45.4 | 31.8 | 28.8 | 21.5 |
| 100 | 19.8 | 44.3 | 42.3 | 27.8 | 24.8 | 20.1 |
| 155 | 25.2 | 41.5 | 39.5 | 23.9 | 20.9 | 18.8 |
| 200 | 29.0 | 39.8 | 37.8 | 21.7 | 18.7 | 18.0 |
| 250 | 32.8 | 38.3 | 36.3 | 19.8 | 16.8 | 17.3 |
Bending Radius : 8×OD (during installation); 4×OD (fixed installed).
Temperature Range : -30℃ ~ +75℃
| Construction No. of elements × No. of cores in element × Conductor diameter | Nominal Insulation Thickness | Nominal Sheath Thickness | Nominal Overall Diameter | Nominal Weight | |
|---|---|---|---|---|---|
| Inner | Outer | ||||
| mm | mm | mm | mm | mm | kg/km |
| 4×2×0.58 | 0.23 | 0.8 | 1.14 | 11.6 | 214 |
