DPNP, TPNP, FPNP

0.6/1KV

JISC 3410-1999

IEC 60332-1

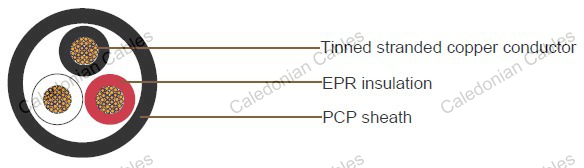

Conductor	D(T,F)	Tinned annealed stranded copper, class 5 according to IEC 60228
Insulation	P	85°C EPR as per JIS C 3401
Cabling		Insulated conductors shall be cabled. Flame retardant & non-hygroscopic fillers may be used.
Sheath	NP	PCP as per JIS C 3410
Core identification		2C Black, White 3C Black, White, Red 4C Black, White, Red, Green
Outer sheath color		Black

No. of Cores	Conductor			Thick. of insulation	Thick. of Sheath	Nom. overall dia.	Tolerance	Cable Weight
	Size	Construction	O.D	Thick. of insulation	Thick. of Sheath	Nom. overall dia.	Tolerance	Cable Weight
	mm²	No./mm	mm	mm	mm	mm	mm	kg/km
2	0.75	24/0.20	1.13	1	1.4	9.7	0.4	130
2	1	32/0.20	1.27	1	1.4	9.9	0.4	135
2	1.5	30/0.25	1.58	1	1.5	10.8	0.4	165
2	2.5	49/0.25	2.02	1	1.6	11.8	0.5	205
2	4	55/0.30	2.57	1	1.7	13.1	0.5	265
2	6	82/0.30	3.14	1	1.8	14.5	0.6	340
3	0.75	24/0.20	1.13	1	1.4	10.2	0.4	145
3	1	32/0.20	1.27	1	1.5	10.7	0.4	160
3	1.5	30/0.25	1.58	1	1.5	11.4	0.5	190
3	2.5	49/0.25	2.02	1	1.6	12.5	0.5	240
3	4	55/0.30	2.57	1	1.8	14.1	0.6	325
3	6	82/0.30	3.14	1	1.9	15.6	0.6	420
4	0.75	24/0.20	1.13	1	1.5	11.3	0.5	175
4	1	32/0.20	1.27	1	1.6	11.8	0.5	200
4	1.5	30/0.25	1.58	1	1.6	12.2	0.5	225
4	2.5	49/0.25	2.02	1	1.8	14.1	0.6	310
4	4	55/0.30	2.57	1	1.9	15.6	0.6	405
4	6	82/0.30	3.14	1	2	17.2	0.7	525
