    TFOI/TFOU (MTX) 3.6/6kV, 6/10kV, 8.7/15kV XLPE Insulated, LSOH (SHF1) Sheathed, Armoured Flame Retardant MV Power Cables (Halogen Free Inner Covering)

    Application

    These armoured MV cables are used on board of ships in all locations for fixed installations complying with IEC standards 60092-352. These cables are flame retardant, low smoke& halogen free.

    Standards

    IEC 60092-350/354/360

    IEC 60332-1

    IEC 60332-3-22

    IEC 60754-1/2

    IEC 61034

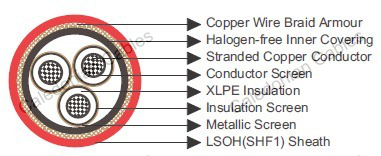

    Construction

    Conductors : Class 2 stranded copper conductor.

    Conductor Screen : Semi-conducting layer (tape/compound).

    Insulation : XLPE.

    Insulation Screen : Semi-conducting layer (tape/compound).

    Metallic Screen : Copper tape

    Inner Covering : Halogen free compound.

    Armour : Copper wire braid.

    Outer Sheath : LSOH (SHF1). SHF2 can be offered upon request.

    Core Identification

    Coloured tape shall be inserted under metallic screen.

    3core : Red, Yellow, Blue.

    Mechanical and Thermal Properties

    Bending Radius for Fixed Installations : 12×OD (single core); 9×OD (three core)

    Temperature Range : -30℃ ~ +80℃

    Dimensions and Weight

    3.6/6kV

    Part No. Construction No. of cores × Cross section Nominal Insulation Thickness Nominal Sheath Thickness Nominal Overall Diameter Nominal Weight
      mm² mm mm mm kg/km
    MTX-3.6/6KV-RMZ1-1C10 1×10 2.5 1.5 19.6 580
    MTX-3.6/6KV-RMZ1-1C16 1×16 2.5 1.5 20.5 670
    MTX-3.6/6KV-RMZ1-1C25 1×25 2.5 1.5 21.8 800
    MTX-3.6/6KV-RMZ1-1C35 1×35 2.5 1.6 23.2 940
    MTX-3.6/6KV-RMZ1-1C50 1×50 2.5 1.6 24.5 1100
    MTX-3.6/6KV-RMZ1-1C70 1×70 2.5 1.7 26.5 1380
    MTX-3.6/6KV-RMZ1-1C95 1×95 2.5 1.8 28.6 1700
    MTX-3.6/6KV-RMZ1-1C120 1×120 2.5 1.9 30.4 2000
    MTX-3.6/6KV-RMZ1-1C150 1×150 2.5 1.9 32.0 2320
    MTX-3.6/6KV-RMZ1-1C185 1×185 2.5 2.0 34.4 2770
    MTX-3.6/6KV-RMZ1-1C240 1×240 2.6 2.1 38.0 3530
    MTX-3.6/6KV-RMZ1-1C300 1×300 2.8 2.3 41.2 4270
    MTX-3.6/6KV-RMZ1-1C400 1×400 3.0 2.4 45.6 5410
    MTX-3.6/6KV-RMZ1-1C500 1×500 3.2 2.5 48.9 6390
    MTX-3.6/6KV-RMZ1-1C630 1×630 3.2 2.7 53.5 8030
    MTX-3.6/6KV-RMZ1-3C10 3×10 2.5 2.0 35.4 1620
    MTX-3.6/6KV-RMZ1-3C16 3×16 2.5 2.2 38.4 2030
    MTX-3.6/6KV-RMZ1-3C25 3×25 2.5 2.3 41.4 2470
    MTX-3.6/6KV-RMZ1-3C35 3×35 2.5 2.4 44.2 2930
    MTX-3.6/6KV-RMZ1-3C50 3×50 2.5 2.5 47.6 3510
    MTX-3.6/6KV-RMZ1-3C70 3×70 2.5 2.7 51.9 4390
    MTX-3.6/6KV-RMZ1-3C95 3×95 2.5 2.8 56.6 5470
    MTX-3.6/6KV-RMZ1-3C120 3×120 2.5 3.0 60.4 6450
    MTX-3.6/6KV-RMZ1-3C150 3×150 2.5 3.1 64.1 7490
    MTX-3.6/6KV-RMZ1-3C185 3×185 2.5 3.3 68.3 8850
    MTX-3.6/6KV-RMZ1-3C240 3×240 2.6 3.5 75.4 11080

    6/10kV

    Part No. Construction No. of cores × Cross section Nominal Insulation Thickness Nominal Sheath Thickness Nominal Overall Diameter Nominal Weight
      mm² mm mm mm kg/km
    MTX-6/10KV-RMZ1-1C16 1×16 3.4 1.6 22.5 750
    MTX-6/10KV-RMZ1-1C25 1×25 3.4 1.6 23.8 890
    MTX-6/10KV-RMZ1-1C35 1×35 3.4 1.7 25.2 1040
    MTX-6/10KV-RMZ1-1C50 1×50 3.4 1.7 26.5 1200
    MTX-6/10KV-RMZ1-1C70 1×70 3.4 1.8 28.5 1480
    MTX-6/10KV-RMZ1-1C95 1×95 3.4 1.9 30.6 1810
    MTX-6/10KV-RMZ1-1C120 1×120 3.4 1.9 32.2 2100
    MTX-6/10KV-RMZ1-1C150 1×150 3.4 2.0 34.4 2470
    MTX-6/10KV-RMZ1-1C185 1×185 3.4 2.1 36.9 2980
    MTX-6/10KV-RMZ1-1C240 1×240 3.4 2.2 39.8 3650
    MTX-6/10KV-RMZ1-1C300 1×300 3.4 2.3 42.4 4340
    MTX-6/10KV-RMZ1-1C400 1×400 3.4 2.5 46.6 5480
    MTX-6/10KV-RMZ1-1C500 1×500 3.4 2.6 49.5 6430
    MTX-6/10KV-RMZ1-1C630 1×630 3.4 2.7 53.9 8040
    MTX-6/10KV-RMZ1-3C16 3×16 3.4 2.3 42.5 2330
    MTX-6/10KV-RMZ1-3C25 3×25 3.4 2.4 45.9 2840
    MTX-6/10KV-RMZ1-3C35 3×35 3.4 2.5 48.7 3310
    MTX-6/10KV-RMZ1-3C50 3×50 3.4 2.7 51.9 3890
    MTX-6/10KV-RMZ1-3C70 3×70 3.4 2.8 56.4 4820
    MTX-6/10KV-RMZ1-3C95 3×95 3.4 3.0 60.8 5900
    MTX-6/10KV-RMZ1-3C120 3×120 3.4 3.1 64.5 6880
    MTX-6/10KV-RMZ1-3C150 3×150 3.4 3.3 68.3 7960
    MTX-6/10KV-RMZ1-3C185 3×185 3.4 3.4 72.8 9390
    MTX-6/10KV-RMZ1-3C240 3×240 3.4 3.7 79.2 11570

    8.7/15kV

    Part No. Construction No. of cores × Cross section Nominal Insulation Thickness Nominal Sheath Thickness Nominal Overall Diameter Nominal Weight
      mm² mm mm mm kg/km
    MTX-8.7/15KV-RMZ1-1C25 1×25 4.5 1.7 26.2 1020
    MTX-8.7/15KV-RMZ1-1C35 1×35 4.5 1.8 27.6 1170
    MTX-8.7/15KV-RMZ1-1C50 1×50 4.5 1.8 28.9 1340
    MTX-8.7/15KV-RMZ1-1C70 1×70 4.5 1.9 30.9 1630
    MTX-8.7/15KV-RMZ1-1C95 1×95 4.5 2.0 33.4 2000
    MTX-8.7/15KV-RMZ1-1C120 1×120 4.5 2.0 35.0 2300
    MTX-8.7/15KV-RMZ1-1C150 1×150 4.5 2.1 37.3 2730
    MTX-8.7/15KV-RMZ1-1C185 1×185 4.5 2.2 39.3 3180
    MTX-8.7/15KV-RMZ1-1C240 1×240 4.5 2.3 42.2 3860
    MTX-8.7/15KV-RMZ1-1C300 1×300 4.5 2.4 45.2 4600
    MTX-8.7/15KV-RMZ1-1C400 1×400 4.5 2.5 48.8 5690
    MTX-8.7/15KV-RMZ1-1C500 1×500 4.5 2.7 51.9 6680
    MTX-8.7/15KV-RMZ1-1C630 1×630 4.5 2.8 56.7 8360
    MTX-8.7/15KV-RMZ1-3C25 3×25 4.5 2.6 51.0 3280
    MTX-8.7/15KV-RMZ1-3C35 3×35 4.5 2.7 53.8 3770
    MTX-8.7/15KV-RMZ1-3C50 3×50 4.5 2.9 57.4 4430
    MTX-8.7/15KV-RMZ1-3C70 3×70 4.5 3.0 61.5 5340
    MTX-8.7/15KV-RMZ1-3C95 3×95 4.5 3.2 66.0 6460
    MTX-8.7/15KV-RMZ1-3C120 3×120 4.5 3.3 69.6 7460
    MTX-8.7/15KV-RMZ1-3C150 3×150 4.5 3.5 73.9 8640
    MTX-8.7/15KV-RMZ1-3C185 3×185 4.5 3.6 78.0 10040
    MTX-8.7/15KV-RMZ1-3C240 3×240 4.5 3.9 84.4 12270
