    TI/TU (MTX400) 0.6/1 kV XLPE Insulated, LSOH (SHF1) Sheathed Flame Retardant Power & Control Cables (Multicore)

    Application

    These unarmoured power & control cables are used on board of ships in all locations for fixed installations not subject to mechanical risk complying with IEC standards 60092-352. These cables are flame retardant, low smoke & halogen free.

    Standards

    IEC 60092-350/353/360

    IEC 60332-1

    IEC 60332-3-22

    IEC 60754-1/2

    IEC 61034

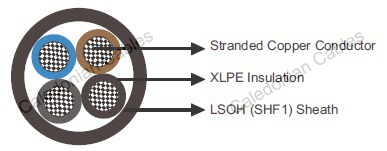

    Construction

    Conductors : Class 2 stranded copper conductor, round or sector shaped. Class 5 stranded conductors can be offered upon request.

    Insulation : XLPE.

    Filler (optional) : Halogen free filling compound.

    Outer Sheath : LSOH (SHF1). SHF2 can be offered upon request.

    Core Identification

    Two cores : Blue, Brown.

    Three cores : Brown, Black, Grey.

    Four cores : Blue, Brown, Black, Grey.

    Five cores : Blue, Brown, Black, Grey, Black.

    Multi cores : White with black numbers.

    With yellow/green (optional)

    Two cores + earth (3G) : Yellow/green, Blue, Brown.

    Three cores + earth (4G) : Yellow/green, Brown, Black, Grey.

    Four cores + earth (5G) : Yellow/green, Blue, Brown, Black, Grey.

    Mechanical and Thermal Properties

    Bending Radius for Fixed Installations: 6×OD (OD>25mm); 4×OD (OD ≤25mm)

    Temperature Range: -30℃ ~ +80℃

    Dimensions and Weight

    MTX400 1RZ1-R Multicore 0.6/1kV (-R stands for class 2 conductor. For class 5 conductor, please change –R to –F)

    Part No. Construction No. of cores × Cross section Nominal Insulation Thickness Nominal Sheath Thickness Nominal Overall Diameter Nominal Weight
      mm² mm mm mm kg/km
    MTX400-1RZ1-R-2C1.5 2×1.5 0.7 1.1 8.4 80
    MTX400-1RZ1-R-2C2.5 2×2.5 0.7 1.1 9.2 100
    MTX400-1RZ1-R-2C4 2×4 0.7 1.1 10.7 135
    MTX400-1RZ1-R-2C6 2×6 0.7 1.2 12.0 185
    MTX400-1RZ1-R-2C10 2×10 0.7 1.2 13.7 270
    MTX400-1RZ1-R-2C16 2×16 0.7 1.3 16.0 400
    MTX400-1RZ1-R-2C25 2×25 0.9 1.3 18.8 700
    MTX400-1RZ1-R-2C35 2×35 0.9 1.3 21.4 930
    MTX400-1RZ1-R-2C50 2×50 1.0 1.3 24.2 1290
    MTX400-1RZ1-R-3C1.5(3G1.5) 3×(G)1.5 0.7 1.1 8.8 100
    MTX400-1RZ1-R-3C2.5(3G2.5) 3×(G)2.5 0.7 1.1 9.8 130
    MTX400-1RZ1-R-3C4(3G4) 3×(G)4 0.7 1.2 11.6 190
    MTX400-1RZ1-R-3C6(3G6) 3×(G)6 0.7 1.2 12.8 250
    MTX400-1RZ1-R-3C10 3×10 0.7 1.3 14.8 380
    MTX400-1RZ1-R-3C16(3G16) 3×16 0.7 1.3 17.1 560
    MTX400-1RZ1-R-3C25 3×25 0.9 1.5 20.7 875
    MTX400-1RZ1-R-3C35 3×35 0.9 1.6 23.5 1220
    MTX400-1RZ1-R-3C35S 3×35 (sector shaped) 0.9 1.5 20.1 1135
    MTX400-1RZ1-R-3C50 3×50 1.0 1.7 26.7 1780
    MTX400-1RZ1-R-3C50S 3×50 (sector shaped) 1.0 1.7 22.8 1530
    MTX400-1RZ1-R-3C70S 3×70 (sector shaped) 1.1 1.8 26.7 2150
    MTX400-1RZ1-R-3C95S 3×95 (sector shaped) 1.1 1.9 30.2 2900
    MTX400-1RZ1-R-3C120S 3×120 (sector shaped) 1.2 2.1 34.0 3675
    MTX400-1RZ1-R-4C1.5(4G1.5) 4×(G)1.5 0.7 1.1 9.6 120
    MTX400-1RZ1-R-4C2.5(4G2.5) 4×(G)2.5 0.7 1.1 10.7 165
    MTX400-1RZ1-R-4C4(4G4) 4×(G)4 0.7 1.2 12.8 240
    MTX400-1RZ1-R-4C6(4G6) 4×(G)6 0.7 1.2 14.1 320
    MTX400-1RZ1-R-4C10(4G10) 4×(G)10 0.7 1.3 16.3 490
    MTX400-1RZ1-R-4C16(4G16) 4×(G)16 0.7 1.4 19.1 740
    MTX400-1RZ1-R-4C25(4G25) 4×(G)25 0.9 1.5 22.8 1145
    MTX400-1RZ1-R-4G35 4G35 0.9 1.7 26.0 1515
    MTX400-1RZ1-R-4G50 4G50 1.0 1.8 29.7 2340
    MTX400-1RZ1-R-5C1.5(5G1.5) 5×(G)1.5 0.7 1.1 10.5 145
    MTX400-1RZ1-R-5C2.5(5G2.5) 5×(G)2.5 0.7 1.2 11.9 205
    MTX400-1RZ1-R-5G6 5G6 0.7 1.3 15.7 400
    MTX400-1RZ1-R-5G16 5G16 0.7 1.5 21.2 920
    MTX400-1RZ1-R-6C1.5 6×1.5 0.7 1.2 11.6 180
    MTX400-1RZ1-R-7C1.5 7×1.5 0.7 1.2 11.7 195
    MTX400-1RZ1-R-8C1.5(8G1.5) 8×(G)1.5 0.7 1.2 12.7 225
    MTX400-1RZ1-R-10C1.5 10×1.5 0.7 1.3 14.8 275
    MTX400-1RZ1-R-12C1.5 12×1.5 0.7 1.3 15.3 315
    MTX400-1RZ1-R-16C1.5 16×1.5 0.7 1.4 17.2 410
    MTX400-1RZ1-R-19C1.5 19×1.5 0.7 1.4 18.1 470
    MTX400-1RZ1-R-24C1.5 24×1.5 0.7 1.5 21.3 620
    MTX400-1RZ1-R-5C2.5 5×2.5 0.7 1.2 11.9 210
    MTX400-1RZ1-R-7C2.5 7×2.5 0.7 1.2 13.2 280
    MTX400-1RZ1-R-12C2.5 12×2.5 0.7 1.3 17.4 460
    MTX400-1RZ1-R-19C2.5 19×2.5 0.7 1.4 20.6 690
    MTX400-1RZ1-R-24C2.5 24×2.5 0.7 1.5 24.3 880
    MTX400-1RZ1-R-27C2.5 27×2.5 0.7 1.5 24.6 970
    MTX400-1RZ1-R-37C2.5 37×2.5 0.7 1.6 27.7 1300
