    TFOI/TFOU (MTX400) 0.6/1 kV XLPE Insulated, LSOH (SHF1) Sheathed, Armoured Flame Retardant Power & Control Cables (Multicore)

    Application

    These armoured cables are used on board of ships in all locations for fixed installations where cable protection is required. These cables are flame retardant, low smoke & halogen free.

    Standards

    IEC 60092-350/353/360

    IEC 60332-1

    IEC 60332-3-22

    IEC 60754-1/2

    IEC 61034

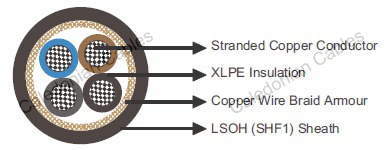

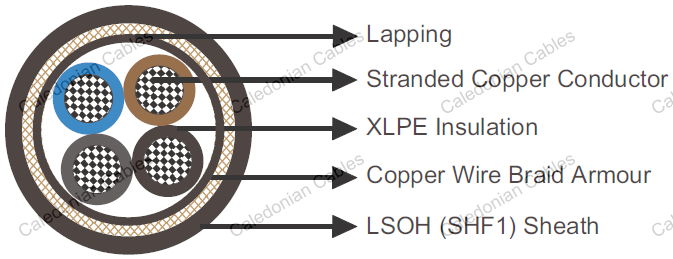

    Construction

    Conductors : Class 2 stranded copper conductor, round or sector shaped. Class 5 stranded conductors can be offered upon request.

    Insulation : XLPE.

    Inner Covering : Lapping.

    Armour : Copper wire braid.

    Outer Sheath : LSOH (SHF1). SHF2 can be offered upon request.

    Core Identification

    Two cores : Blue, Brown.

    Three cores : Brown, Black, Grey.

    Four cores : Blue, Brown, Black, Grey.

    Five cores : Blue, Brown, Black, Grey, Black.

    Multi cores : White with black numbers

    With yellow/green (optional)

    Two cores + earth (3G) : Yellow/green, Blue, Brown.

    Three cores + earth (4G) : Yellow/green, Brown, Black, Grey.

    Four cores + earth (5G) : Yellow/green, Blue, Brown, Black, Grey.

    Mechanical and Thermal Properties

    Bending Radius for Fixed Installations : 6×OD

    Temperature Range : -30℃ ~ +80℃

    Dimensions and Weight

    MTX400 1RMZ1-R Multicore Armoured 0.6/1kV (-R stands for class 2 conductor. For class 5 conductor, please change –R to –F)

    Part No. Construction No. of cores × Cross section Nominal Insulation Thickness Nominal Sheath Thickness Nominal Overall Diameter Nominal Weight
      mm² mm mm mm kg/km
    MTX400-1RMZ1-R-2C1.5 2×1.5 0.7 1.1 9.3 120
    MTX400-1RMZ1-R-2C2.5 2×2.5 0.7 1.1 10.1 150
    MTX400-1RMZ1-R-2C4 2×4 0.7 1.2 11.8 195
    MTX400-1RMZ1-R-2C6 2×6 0.7 1.2 13.3 275
    MTX400-1RMZ1-R-2C10 2×10 0.7 1.3 15.3 385
    MTX400-1RMZ1-R-2C16 2×16 0.7 1.4 18.0 595
    MTX400-1RMZ1-R-2C25 2×25 0.9 1.5 21.3 820
    MTX400-1RMZ1-R-2C35 2×35 0.9 1.5 23.9 1140
    MTX400-1RMZ1-R-2C50 2×50 1.0 1.5 26.7 1500
    MTX400-1RMZ1-R-3C1.5(3G1.5) 3×(G)1.5 0.7 1.1 9.8 145
    MTX400-1RMZ1-R-3C2.5(3G2.5) 3×(G)2.5 0.7 1.1 10.7 180
    MTX400-1RMZ1-R-3C4 3×4 0.7 1.2 12.5 245
    MTX400-1RMZ1-R-3C6 3×6 0.7 1.3 14.3 345
    MTX400-1RMZ1-R-3C10 3×10 0.7 1.3 16.2 490
    MTX400-1RMZ1-R-3C16 3×16 0.7 1.4 19.1 755
    MTX400-1RMZ1-R-3C25 3×25 0.9 1.6 22.7 1095
    MTX400-1RMZ1-R-3C35 3×35 0.9 1.6 24.9 1340
    MTX400-1RMZ1-R-3C35S 3×35 (sector shaped) 0.9 1.6 22.0 1320
    MTX400-1RMZ1-R-3C50 3×50 1.0 1.6 27.1 1750
    MTX400-1RMZ1-R-3C50S 3×50 (sector shaped) 1.0 1.6 24.8 1820
    MTX400-1RMZ1-R-3C70S 3×70 (sector shaped) 1.1 2.0 29.7 2575
    MTX400-1RMZ1-R-3C95S 3×95 (sector shaped) 1.1 2.1 33.1 3435
    MTX400-1RMZ1-R-3C120S 3×120 (sector shaped) 1.2 2.2 36.0 4070
    MTX400-1RMZ1-R-3C150S 3×150 (sector shaped) 1.4 2.4 40.9 5435
    MTX400-1RMZ1-R-4C1.5(4G1.5) 4×(G)1.5 0.7 1.1 10.5 170
    MTX400-1RMZ1-R-4C2.5(4G2.5) 4×(G)2.5 0.7 1.2 11.8 225
    MTX400-1RMZ1-R-4C4 4×4 0.7 1.3 14.3 335
    MTX400-1RMZ1-R-4C6 4×6 0.7 1.3 15.6 425
    MTX400-1RMZ1-R-4C10 4×10 0.7 1.4 17.9 625
    MTX400-1RMZ1-R-4C16 4×16 0.7 1.5 21.1 935
    MTX400-1RMZ1-R-4C25 4×25 0.9 1.6 24.4 1345
    MTX400-1RMZ1-R-4C35 4×35 0.9 1.7 27.5 1715
    MTX400-1RMZ1-R-4C35S 4×35 (sector shaped) 0.9 1.7 24.3 1700
    MTX400-1RMZ1-R-4C50 4×50 1.0 1.6 29.9 2400
    MTX400-1RMZ1-R-4C50S 4×50(sector shaped) 1.0 1.6 27.3 2300
    MTX400-1RMZ1-R-4C70S 4×70(sector shaped) 1.1 2.1 32.8 3250
    MTX400-1RMZ1-R-4C95S 4×95(sector shaped) 1.1 2.2 37.3 4390
    MTX400-1RMZ1-R-5C1.5(5G1.5) 5×(G)1.5 0.7 1.2 11.7 205
    MTX400-1RMZ1-R-5C2.5(5G2.5) 5×(G)2.5 0.7 1.2 12.8 265
    MTX400-1RMZ1-R-5G4 5G4 0.7 1.2 14.8 360
    MTX400-1RMZ1-R-6C1.5 6×1.5 0.7 1.2 12.7 240
    MTX400-1RMZ1-R-7C1.5 7×1.5 0.7 1.2 12.7 260
    MTX400-1RMZ1-R-8C1.5 8×1.5 0.7 1.2 15.5 340
    MTX400-1RMZ1-R-10C1.5 10×1.5 0.7 1.3 16.2 390
    MTX400-1RMZ1-R-12C1.5 12×1.5 0.7 1.4 16.9 440
    MTX400-1RMZ1-R-16C1.5 16×1.5 0.7 1.4 18.6 550
    MTX400-1RMZ1-R-19C1.5 19×1.5 0.7 1.5 19.7 620
    MTX400-1RMZ1-R-24C1.5 24×1.5 0.7 1.6 22.9 800
    MTX400-1RMZ1-R-5C2.5 5×2.5 0.7 1.2 12.9 290
    MTX400-1RMZ1-R-7C2.5 7×2.5 0.7 1.2 14.6 390
    MTX400-1RMZ1-R-12C2.5 12×2.5 0.7 1.4 18.7 610
    MTX400-1RMZ1-R-19C2.5 19×2.5 0.7 1.5 21.8 870
    MTX400-1RMZ1-R-24C2.5 24×2.5 0.7 1.6 25.6 1100
    MTX400-1RMZ1-R-27C2.5 27×2.5 0.7 1.7 26.1 1200
    MTX400-1RMZ1-R-37C2.5 37×2.5 0.7 1.9 29.2 1560
