    BOI/BOU (MRE-M3GCH) 150/250V Mica Tape + HEPR Insulated, LSOH (SHF1) Sheathed, Armoured Fire Resistant Instrumentation & Control Cables (Multipair)

    Application

    These cables are used on board of ships in all locations for fixed installations complying with IEC standards 60092-352 in safety circuit, where fire resistance is required. These cables are fire resistant, flame retardant, low smoke & halogen free, suitable for installations on passenger ships, as on other commercial vessels.

    Standards

    DIN 89159

    IEC 60092-360/375

    IEC 60331-21

    IEC 60332-1

    IEC 60332-3-22

    IEC 60754-1/2

    IEC 61034

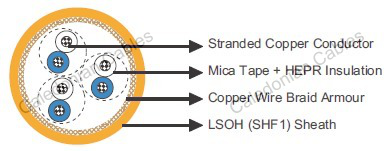

    Construction

    Conductors : Stranded copper conductor.

    Insulation : Mica tape + HEPR.

    Cabling Element : Pair.

    Armour : Copper wire braid.

    Outer Sheath : LSOH (SHF1).

    Core Identification

    Pair : White/blue with printed pair number and core number.

    Mechanical and Thermal Properties

    Bending Radius for Fixed Installations : 6×OD

    Temperature Range : -30℃ ~ +75℃

    Dimensions and Weight

    Part No. Construction No. of cores × Cross section Nominal Insulation Thickness Nominal Sheath Thickness Nominal Overall Diameter Nominal Weight
      mm² mm mm mm kg/km
    MRE-M3GCH-1P0.75 1×2×0.75 0.5 1.2 10.5 110
    MRE-M3GCH-2P0.75 2×2×0.75* 0.5 1.3 11.0 150
    MRE-M3GCH-4P0.75 4×2×0.75 0.5 1.4 16.0 270
    MRE-M3GCH-7P0.75 7×2×0.75 0.5 1.8 19.0 400
    MRE-M3GCH-10P0.75 10×2×0.75 0.5 1.9 22.0 560
    MRE-M3GCH-14P0.75 14×2×0.75 0.5 2.0 27.0 740
    MRE-M3GCH-19P0.75 19×2×0.75 0.5 2.1 29.0 930
    MRE-M3GCH-24P0.75 24×2×0.75 0.5 2.2 31.0 1110

    *: 2 pairs are assembled as a quad.
