    BFOI/BFOU (MRE-M2XCH) 150/250V Mica Tape + XLPE Insulated, LSOH (SHF1) Sheathed, Armoured Fire Resistant Instrumentation & Control Cables (Multipair/Multitriple)

    Application

    These cables are used on board of ships in all locations for fixed installations complying with IEC standards 60092-352 in safety circuit, where fire resistance is required. These cables are fire resistant, flame retardant, low smoke & halogen free, suitable for installations on passenger ships, as on other commercial vessels.

    Standards

    IEC 60092-350/360/376

    IEC 60331-21

    IEC 60332-1

    IEC 60332-3-22

    IEC 60754-1/2

    IEC 61034

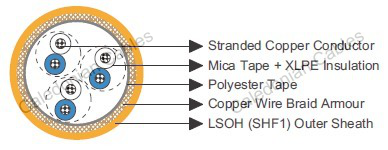

    Construction

    Conductors : Class 2 stranded copper conductor.

    Insulation : Mica tape + XLPE.

    Cabling Element : Pair/Triple.

    Inner Covering : Lapped polyester tape.

    Armour : Copper wire braid.

    Outer Sheath : LSOH (SHF1). SHF2 can be offered upon request.

    Core Identification

    Pair : White/blue with printed pair number and core number.

    Triple : White/blue/red with printed triple number.

    Mechanical and Thermal Properties

    Bending Radius for Fixed Installations : 6×OD

    Temperature Range : -30℃ ~ +80℃

    Dimensions and Weight

    Part No. Construction No. of cores × Cross section Nominal Insulation Thickness Nominal Sheath Thickness Nominal Overall Diameter Nominal Weight
      mm² mm mm mm kg/km
    MRE-M2XCH-1P0.75 1×2×0.75 0.5 1.3 9.1 120
    MRE-M2XCH-2P0.75 2×2×0.75 0.5 1.3 10.2 150
    MRE-M2XCH-3P0.75 3×2×0.75 0.5 1.8 14.6 280
    MRE-M2XCH-4P0.75 4×2×0.75 0.5 1.8 15.4 320
    MRE-M2XCH-5P0.75 5×2×0.75 0.5 1.9 17.2 390
    MRE-M2XCH-6P0.75 6×2×0.75 0.5 1.9 18.3 440
    MRE-M2XCH-7P0.75 7×2×0.75 0.5 1.9 18.3 460
    MRE-M2XCH-8P0.75 8×2×0.75 0.5 2.0 19.6 520
    MRE-M2XCH-10P0.75 10×2×0.75 0.5 2.0 21.7 620
    MRE-M2XCH-12P0.75 12×2×0.75 0.5 2.1 22.8 700
    MRE-M2XCH-14P0.75 14×2×0.75 0.5 2.1 23.6 770
    MRE-M2XCH-16P0.75 16×2×0.75 0.5 2.2 25.4 870
    MRE-M2XCH-19P0.75 19×2×0.75 0.5 2.2 27.0 990
    MRE-M2XCH-20P0.75 20×2×0.75 0.5 2.2 27.0 1010
    MRE-M2XCH-24P0.75 24×2×0.75 0.5 2.4 30.9 1240
    MRE-M2XCH-30P0.75 30×2×0.75 0.5 2.5 33.5 1480
    MRE-M2XCH-37P0.75 37×2×0.75 0.5 2.6 35.9 1730
    MRE-M2XCH-1P1.0 1×2×1.0 0.5 1.3 9.5 130
    MRE-M2XCH-2P1.0 2×2×1.0 0.5 1.3 10.7 170
    MRE-M2XCH-3P1.0 3×2×1.0 0.5 1.8 15.3 320
    MRE-M2XCH-4P1.0 4×2×1.0 0.5 1.8 16.2 360
    MRE-M2XCH-5P1.0 5×2×1.0 0.5 1.9 18.1 440
    MRE-M2XCH-6P1.0 6×2×1.0 0.5 2.0 19.5 510
    MRE-M2XCH-7P1.0 7×2×1.0 0.5 2.0 19.5 530
    MRE-M2XCH-8P1.0 8×2×1.0 0.5 2.0 20.7 590
    MRE-M2XCH-10P1.0 10×2×1.0 0.5 2.1 23.2 730
    MRE-M2XCH-12P1.0 12×2×1.0 0.5 2.1 24.1 810
    MRE-M2XCH-14P1.0 14×2×1.0 0.5 2.2 25.1 900
    MRE-M2XCH-16P1.0 16×2×1.0 0.5 2.2 26.9 1010
    MRE-M2XCH-19P1.0 19×2×1.0 0.5 2.3 28.8 1160
    MRE-M2XCH-20P1.0 20×2×1.0 0.5 2.3 28.8 1190
    MRE-M2XCH-24P1.0 24×2×1.0 0.5 2.5 33.0 1460
    MRE-M2XCH-30P1.0 30×2×1.0 0.5 2.6 35.8 1740
    MRE-M2XCH-37P1.0 37×2×1.0 0.5 2.9 38.8 2140
    MRE-M2XCH-1P1.5 1×2×1.5 0.6 1.3 10.5 160
    MRE-M2XCH-2P1.5 2×2×1.5 0.6 1.4 12.1 220
    MRE-M2XCH-3P1.5 3×2×1.5 0.6 1.9 17.4 400
    MRE-M2XCH-4P1.5 4×2×1.5 0.6 1.9 18.4 470
    MRE-M2XCH-5P1.5 5×2×1.5 0.6 2.0 20.6 570
    MRE-M2XCH-6P1.5 6×2×1.5 0.6 2.1 22.2 660
    MRE-M2XCH-7P1.5 7×2×1.5 0.6 2.1 22.2 700
    MRE-M2XCH-8P1.5 8×2×1.5 0.6 2.1 23.6 780
    MRE-M2XCH-10P1.5 10×2×1.5 0.6 2.2 26.5 950
    MRE-M2XCH-12P1.5 12×2×1.5 0.6 2.3 27.7 1070
    MRE-M2XCH-14P1.5 14×2×1.5 0.6 2.3 28.7 1180
    MRE-M2XCH-16P1.5 16×2×1.5 0.6 2.4 31.0 1350
    MRE-M2XCH-19P1.5 19×2×1.5 0.6 2.5 33.2 1560
    MRE-M2XCH-20P1.5 20×2×1.5 0.6 2.5 33.2 1590
    MRE-M2XCH-24P1.5 24×2×1.5 0.6 2.9 38.5 2060
    MRE-M2XCH-30P1.5 30×2×1.5 0.6 3.0 41.8 2450
    MRE-M2XCH-37P1.5 37×2×1.5 0.6 3.1 44.7 2880
    MRE-M2XCH-1T0.75 1×3×0.75 0.5 1.3 9.5 130
    MRE-M2XCH-2T0.75 2×3×0.75 0.5 1.8 14.9 290
    MRE-M2XCH-3T0.75 3×3×0.75 0.5 1.8 15.7 340
    MRE-M2XCH-4T0.75 4×3×0.75 0.5 1.9 17.2 410
    MRE-M2XCH-5T0.75 5×3×0.75 0.5 1.9 18.8 480
    MRE-M2XCH-6T0.75 6×3×0.75 0.5 2.0 21.2 590
    MRE-M2XCH-7T0.75 7×3×0.75 0.5 2.0 21.2 620
    MRE-M2XCH-8T0.75 8×3×0.75 0.5 2.1 22.8 700
    MRE-M2XCH-10T0.75 10×3×0.75 0.5 2.2 25.7 860
    MRE-M2XCH-12T0.75 12×3×0.75 0.5 2.2 27.0 970
    MRE-M2XCH-14T0.75 14×3×0.75 0.5 2.3 28.3 1080
    MRE-M2XCH-16T0.75 16×3×0.75 0.5 2.3 29.9 1200
    MRE-M2XCH-19T0.75 19×3×0.75 0.5 2.4 32.3 1390
    MRE-M2XCH-20T0.75 20×3×0.75 0.5 2.5 33.0 1460
    MRE-M2XCH-24T0.75 24×3×0.75 0.5 2.6 35.9 1710
    MRE-M2XCH-30T0.75 30×3×0.75 0.5 2.9 40.1 2170
    MRE-M2XCH-32T0.75 32×3×0.75 0.5 3.0 41.7 2320
    MRE-M2XCH-1T1.0 1×3×1.0 0.5 1.3 9.9 150
    MRE-M2XCH-2T1.0 2×3×1.0 0.5 1.8 15.6 320
    MRE-M2XCH-3T1.0 3×3×1.0 0.5 1.8 16.5 380
    MRE-M2XCH-4T1.0 4×3×1.0 0.5 1.9 18.1 470
    MRE-M2XCH-5T1.0 5×3×1.0 0.5 2.0 20.1 560
    MRE-M2XCH-6T1.0 6×3×1.0 0.5 2.1 22.6 680
    MRE-M2XCH-7T1.0 7×3×1.0 0.5 2.1 22.6 720
    MRE-M2XCH-8T1.0 8×3×1.0 0.5 2.1 24.1 810
    MRE-M2XCH-10T1.0 10×3×1.0 0.5 2.2 27.2 990
    MRE-M2XCH-12T1.0 12×3×1.0 0.5 2.3 28.8 1130
    MRE-M2XCH-14T1.0 14×3×1.0 0.5 2.3 30.0 1260
    MRE-M2XCH-16T1.0 16×3×1.0 0.5 2.4 31.9 1410
    MRE-M2XCH-19T1.0 19×3×1.0 0.5 2.5 34.4 1640
    MRE-M2XCH-20T1.0 20×3×1.0 0.5 2.5 35.0 1700
    MRE-M2XCH-24T1.0 24×3×1.0 0.5 2.9 38.8 2110
    MRE-M2XCH-30T1.0 30×3×1.0 0.5 3.0 42.8 2560
    MRE-M2XCH-32T1.0 32×3×1.0 0.5 3.1 44.4 2730
    MRE-M2XCH-1T1.5 1×3×1.5 0.6 1.3 11.0 180
    MRE-M2XCH-2T1.5 2×3×1.5 0.6 1.9 17.7 410
    MRE-M2XCH-3T1.5 3×3×1.5 0.6 1.9 18.7 490
    MRE-M2XCH-4T1.5 4×3×1.5 0.6 2.0 20.6 610
    MRE-M2XCH-5T1.5 5×3×1.5 0.6 2.1 22.9 740
    MRE-M2XCH-6T1.5 6×3×1.5 0.6 2.2 25.8 890
    MRE-M2XCH-7T1.5 7×3×1.5 0.6 2.2 25.8 950
    MRE-M2XCH-8T1.5 8×3×1.5 0.6 2.3 27.7 1070
    MRE-M2XCH-10T1.5 10×3×1.5 0.6 2.4 31.3 1320
    MRE-M2XCH-12T1.5 12×3×1.5 0.6 2.5 33.2 1520
    MRE-M2XCH-14T1.5 14×3×1.5 0.6 2.5 34.6 1690
    MRE-M2XCH-16T1.5 16×3×1.5 0.6 2.8 37.3 1990
    MRE-M2XCH-19T1.5 19×3×1.5 0.6 2.9 40.3 2310
    MRE-M2XCH-20T1.5 20×3×1.5 0.6 3.0 41.1 2420
    MRE-M2XCH-24T1.5 24×3×1.5 0.6 3.1 44.7 2840
    MRE-M2XCH-30T1.5 30×3×1.5 0.6 3.3 49.5 3460
    MRE-M2XCH-32T1.5 32×3×1.5 0.6 3.3 51.2 3670

    *: 2 pairs are assembled as a quad.
