    BI(c)/BU(c) (MRE-M2X(St)H) 150/250V Mica Tape + XLPE Insulated, LSOH (SHF1) Sheathed, Overall Screened Fire Resistant Instrumentation & Control Cables (Multipair/Multitriple)

    Application

    These cables are used on board of ships in all locations for fixed installations not subject to mechanical risk complying with IEC standards 60092-352 in safety circuit, where fire resistance is required. These cables are fire resistant, flame retardant, low smoke & halogen free, suitable for installations on passenger ships, as on other commercial vessels.

    Standards

    IEC 60092-350/360/376

    IEC 60331-21

    IEC 60332-1

    IEC 60332-3-22

    IEC 60754-1/2

    IEC 61034

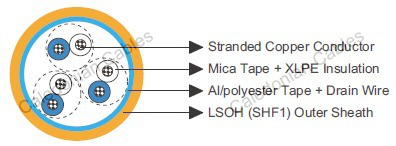

    Construction

    Conductors : Class 2 stranded copper conductor.

    Insulation : Mica tape + XLPE.

    Cabling Element : Pair/Triple.

    Overall Screen : Al/polyester tape.

    Drain Wire : Tinned copper wire.

    Outer Sheath : LSOH (SHF1). SHF2 can be offered upon request.

    Core Identification

    Pair : White/blue with printed pair number and core number.

    Triple : White/blue/red with printed triple number.

    Mechanical and Thermal Properties

    Bending Radius for Fixed Installations : 6×OD (OD>25mm); 4×OD (OD ≤25mm)

    Temperature Range : -30℃ ~ +80℃

    Dimensions and Weight

    Part No. Construction No. of cores × Cross section Nominal Insulation Thickness Nominal Sheath Thickness Nominal Overall Diameter Nominal Weight
      mm² mm mm mm kg/km
    MRE-M2X(St)H-1P0.75 1×2×0.75 0.5 1.0 8.1 70
    MRE-M2X(St)H-2P0.75 2×2×0.75* 0.5 1.1 9.5 110
    MRE-M2X(St)H-3P0.75 3×2×0.75 0.5 1.2 13.3 170
    MRE-M2X(St)H-4P0.75 4×2×0.75 0.5 1.3 14.3 210
    MRE-M2X(St)H-7P0.75 7×2×0.75 0.5 1.4 17.3 320
    MRE-M2X(St)H-8P0.75 8×2×0.75 0.5 1.4 18.4 360
    MRE-M2X(St)H-10P0.75 10×2×0.75 0.5 1.5 20.9 430
    MRE-M2X(St)H-12P07.5 12×2×0.75 0.5 1.5 21.7 490
    MRE-M2X(St)H-14P0.75 14×2×0.75 0.5 1.6 22.7 560
    MRE-M2X(St)H-16P0.75 16×2×0.75 0.5 1.6 24.4 630
    MRE-M2X(St)H-19P0.75 19×2×0.75 0.5 1.7 25.7 730
    MRE-M2X(St)H-24P0.75 24×2×0.75 0.5 1.8 29.3 910
    MRE-M2X(St)H-30P0.75 30×2×0.75 0.5 2.0 33.1 1140
    MRE-M2X(St)H-32P0.75 32×2×0.75 0.5 2.0 33.6 1190
    MRE-M2X(St)H-37P0.75 37×2×0.75 0.5 2.0 35.3 1340
    MRE-M2X(St)H-1P1.0 1×2×1.0 0.5 1.1 8.7 90
    MRE-M2X(St)H-2P1.0 2×2×1.0* 0.5 1.1 9.9 130
    MRE-M2X(St)H-3P1.0 3×2×1.0 0.5 1.3 14.2 200
    MRE-M2X(St)H-4P1.0 4×2×1.0 0.5 1.3 15.1 240
    MRE-M2X(St)H-7P1.0 7×2×1.0 0.5 1.4 18.3 370
    MRE-M2X(St)H-8P1.0 8×2×1.0 0.5 1.5 19.7 430
    MRE-M2X(St)H-10P1.0 10×2×1.0 0.5 1.6 22.3 520
    MRE-M2X(St)H-12P1.0 12×2×1.0 0.5 1.6 23.2 590
    MRE-M2X(St)H-14P1.0 14×2×1.0 0.5 1.6 24.1 660
    MRE-M2X(St)H-16P1.0 16×2×1.0 0.5 1.7 26.1 760
    MRE-M2X(St)H-19P1.0 19×2×1.0 0.5 1.7 27.3 860
    MRE-M2X(St)H-24P1.0 24×2×1.0 0.5 1.9 31.3 1100
    MRE-M2X(St)H-30P1.0 30×2×1.0 0.5 2.0 35.1 1350
    MRE-M2X(St)H-32P1.0 32×2×1.0 0.5 2.1 35.9 1440
    MRE-M2X(St)H-37P1.0 37×2×1.0 0.5 2.1 37.7 1620
    MRE-M2X(St)H-1P1.5 1×2×1.5 0.6 1.1 9.5 100
    MRE-M2X(St)H-2P1.5 2×2×1.5* 0.6 1.1 10.9 160
    MRE-M2X(St)H-3P1.5 3×2×1.5 0.6 1.3 15.7 250
    MRE-M2X(St)H-4P1.5 4×2×1.5 0.6 1.4 16.9 310
    MRE-M2X(St)H-7P1.5 7×2×1.5 0.6 1.5 20.5 490
    MRE-M2X(St)H-8P1.5 8×2×1.5 0.6 1.5 21.9 550
    MRE-M2X(St)H-10P1.5 10×2×1.5 0.6 1.7 25.0 670
    MRE-M2X(St)H-12P1.5 12×2×1.5 0.6 1.7 26.0 770
    MRE-M2X(St)H-14P1.5 14×2×1.5 0.6 1.7 27.0 870
    MRE-M2X(St)H-16P1.5 16×2×1.5 0.6 1.8 29.3 990
    MRE-M2X(St)H-19P1.5 19×2×1.5 0.6 1.9 30.8 1150
    MRE-M2X(St)H-24P1.5 24×2×1.5 0.6 2.0 35.1 1440
    MRE-M2X(St)H-30P1.5 30×2×1.5 0.6 2.2 39.6 1790
    MRE-M2X(St)H-32P1.5 32×2×1.5 0.6 2.2 40.3 1890
    MRE-M2X(St)H-37P1.5 37×2×1.5 0.6 2.3 42.5 2160
    MRE-M2X(St)H-1T0.75 1×3×0.75 0.5 1.1 8.7 90
    MRE-M2X(St)H-2T0.75 2×3×0.75 0.5 1.2 13.5 180
    MRE-M2X(St)H-3T0.75 3×3×0.75 0.5 1.3 14.5 230
    MRE-M2X(St)H-4T0.75 4×3×0.75 0.5 1.3 15.9 280
    MRE-M2X(St)H-7T0.75 7×3×0.75 0.5 1.5 20.2 460
    MRE-M2X(St)H-8T0.75 8×3×0.75 0.5 1.5 21.6 510
    MRE-M2X(St)H-10T0.75 10×3×0.75 0.5 1.6 24.6 620
    MRE-M2X(St)H-12T07.5 12×3×0.75 0.5 1.7 26.2 720
    MRE-M2X(St)H-14T0.75 14×3×0.75 0.5 1.7 27.3 810
    MRE-M2X(St)H-16T0.75 16×3×0.75 0.5 1.8 29.2 920
    MRE-M2X(St)H-19T0.75 19×3×0.75 0.5 1.9 31.6 1080
    MRE-M2X(St)H-24T0.75 24×3×0.75 0.5 2.0 35.1 1340
    MRE-M2X(St)H-30T0.75 30×3×0.75 0.5 2.2 39.1 1660
    MRE-M2X(St)H-32T0.75 32×3×0.75 0.5 2.2 40.5 1760
    MRE-M2X(St)H-37T0.75 37×3×0.75 0.5 2.3 42.7 2000
    MRE-M2X(St)H-1T1.0 1×3×1.0 0.5 1.1 9.2 110
    MRE-M2X(St)H-2T1.0 2×3×1.0 0.5 1.3 14.6 210
    MRE-M2X(St)H-3T1.0 3×3×1.0 0.5 1.3 15.5 270
    MRE-M2X(St)H-4T1.0 4×3×1.0 0.5 1.4 17.2 340
    MRE-M2X(St)H-7T1.0 7×3×1.0 0.5 1.5 21.6 540
    MRE-M2X(St)H-8T1.0 8×3×1.0 0.5 1.6 23.3 620
    MRE-M2X(St)H-10T1.0 10×3×1.0 0.5 1.7 26.5 740
    MRE-M2X(St)H-12T1.0 12×3×1.0 0.5 1.8 28.2 870
    MRE-M2X(St)H-14T1.0 14×3×1.0 0.5 1.8 29.4 980
    MRE-M2X(St)H-16T1.0 16×3×1.0 0.5 1.9 31.4 1110
    MRE-M2X(St)H-19T1.0 19×3×1.0 0.5 2.0 34.1 1310
    MRE-M2X(St)H-24T1.0 24×3×1.0 0.5 2.1 37.9 1620
    MRE-M2X(St)H-30T1.0 30×3×1.0 0.5 2.3 42.2 2010
    MRE-M2X(St)H-32T1.0 32×3×1.0 0.5 2.4 43.9 2150
    MRE-M2X(St)H-37T1.0 37×3×1.0 0.5 2.4 46.0 2430
    MRE-M2X(St)H-1T1.5 1×3×1.5 0.6 1.1 10.0 130
    MRE-M2X(St)H-2T1.5 2×3×1.5 0.6 1.3 16.0 260
    MRE-M2X(St)H-3T1.5 3×3×1.5 0.6 1.4 17.2 340
    MRE-M2X(St)H-4T1.5 4×3×1.5 0.6 1.4 18.9 430
    MRE-M2X(St)H-7T1.5 7×3×1.5 0.6 1.6 24.0 700
    MRE-M2X(St)H-8T1.5 8×3×1.5 0.6 1.7 25.9 800
    MRE-M2X(St)H-10T1.5 10×3×1.5 0.6 1.8 29.5 970
    MRE-M2X(St)H-12T1.5 12×3×1.5 0.6 1.9 31.4 1130
    MRE-M2X(St)H-14T1.5 14×3×1.5 0.6 2.0 33.0 1300
    MRE-M2X(St)H-16T1.5 16×3×1.5 0.6 2.0 35.0 1460
    MRE-M2X(St)H-19T1.5 19×3×1.5 0.6 2.1 37.9 1710
    MRE-M2X(St)H-24T1.5 24×3×1.5 0.6 2.3 42.4 2140
    MRE-M2X(St)H-30T1.5 30×3×1.5 0.6 2.5 47.2 2660
    MRE-M2X(St)H-32T1.5 32×3×1.5 0.6 2.5 48.9 2820
    MRE-M2X(St)H-37T1.5 37×3×1.5 0.6 2.6 51.4 3210

    *: 2 pairs are assembled as a quad.
