These armoured cables are used on board of ships in all locations for fixed installations where cable protection is required. These cables are flame retardant, low smoke & halogen free, suitable for installations on passenger ships, as on other commercial vessels.
DIN 89159/98
IEC 60092-360/375
IEC 60332-1
IEC 60332-3-22
IEC 60754-1/2
IEC 61034

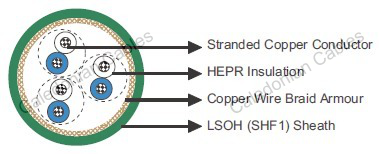

Conductors : Stranded copper conductor.
Insulation : HEPR.
Cabling Element : Pair.
Armour : Copper wire braid.
Outer Sheath : LSOH (SHF1).
Pair : white/blue with printed pair number and core number.
Bending Radius for Fixed Installations : 6×OD
Temperature Range : -30℃ ~ +75℃
| Part No. | Construction No. of cores × Cross section | Nominal Insulation Thickness | Nominal Sheath Thickness | Nominal Overall Diameter | Nominal Weight |
|---|---|---|---|---|---|
| mm² | mm | mm | mm | kg/km | |
| MRE-3GCH-1P0.75 | 1×2×0.75 | 0.5 | 1.2 | 8.5 | 90 |
| MRE-3GCH-2P0.75 | 2×2×0.75* | 0.5 | 1.3 | 9.5 | 130 |
| MRE-3GCH-4P0.75 | 4×2×0.75 | 0.5 | 1.4 | 13.0 | 230 |
| MRE-3GCH-7P0.75 | 7×2×0.75 | 0.5 | 1.8 | 15.5 | 340 |
| MRE-3GCH-10P0.75 | 10×2×0.75 | 0.5 | 1.9 | 18.5 | 470 |
| MRE-3GCH-14P0.75 | 14×2×0.75 | 0.5 | 2.0 | 21.0 | 610 |
| MRE-3GCH-19P0.75 | 19×2×0.75 | 0.5 | 2.1 | 23.5 | 770 |
| MRE-3GCH-24P0.75 | 24×2×0.75 | 0.5 | 2.2 | 26.5 | 950 |
*: 2 pairs are assembled as a quad.
