    TI/TU (MRE-2XH) 150/250V XLPE Insulated, LSOH (SHF1) Sheathed Flame Retardant Instrumentation & Control Cables (Multicore)

    Application

    These cables are used on board of ships at all locations for fixed installations not subject to mechanical risk complying with IEC standards 60092-352. These cables are flame retardant, low smoke & halogen free, suitable for installations on passenger ships, as on other commercial vessels.

    Standards

    IEC 60092-350/376/360

    IEC 60332-1

    IEC 60332-3-22

    IEC 60754-1/2

    IEC 61034

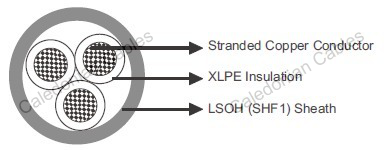

    Construction

    Conductors : Class 2 stranded copper conductor.

    Insulation : XLPE.

    Outer Sheath : LSOH (SHF1). SHF2 can be offered upon request.

    Core Identification

    White with printed number.

    Mechanical and Thermal Properties

    Bending Radius for Fixed Installations : 4×OD

    Temperature Range : -30℃ ~ +80℃

    Dimensions and Weight

    Part No. Construction No. of cores × Cross section Nominal Insulation Thickness Nominal Sheath Thickness Nominal Overall Diameter Nominal Weight
      mm² mm mm mm kg/km
    MRE-2XH-2C0.75 2×0.75 0.5 1.1 6.2 50
    MRE-2XH-3C0.75 3×0.75 0.5 1.1 6.5 60
    MRE-2XH-5C0.75 5×0.75 0.5 1.2 7.7 80
    MRE-2XH-7C0.75 7×0.75 0.5 1.2 8.3 100
    MRE-2XH-12C0.75 12×0.75 0.5 1.3 10.9 170
    MRE-2XH-19C0.75 19×0.75 0.5 1.6 13.0 250
    MRE-2XH-27C0.75 27×0.75 0.5 1.7 15.6 350
    MRE-2XH-37C0.75 37×0.75 0.5 1.9 17.6 470
    MRE-2XH-2C1.0 2×1.0 0.5 1.1 6.6 60
    MRE-2XH-3C1.0 3×1.0 0.5 1.2 7.0 70
    MRE-2XH-5C1.0 5×1.0 0.5 1.2 8.2 100
    MRE-2XH-7C1.0 7×1.0 0.5 1.3 9.1 130
    MRE-2XH-12C1.0 12×1.0 0.5 1.4 11.7 210
    MRE-2XH-19C1.0 19×1.0 0.5 1.7 14.0 310
    MRE-2XH-27C1.0 27×1.0 0.5 1.9 16.8 430
    MRE-2XH-37C1.0 37×1.0 0.5 2.0 19.0 580
