    TI(i)/TU(i) (MRE-2XH PiMF/TiMF) 150/250V XLPE Insulated, LSOH (SHF1) Sheathed, Individual Screened Flame Retardant Instrumentation & Control Cables (Multipair/Multitriple)

    Application

    These cables are used on board of ships at all locations for fixed installations not subject to mechanical risk complying with IEC standards 60092-352. These cables are flame retardant, low smoke & halogen free, suitable for installations on passenger ships, as on other commercial vessels.

    Standards

    IEC 60092-350/360/376

    IEC 60332-1

    IEC 60332-3-22

    IEC 60754-1/2

    IEC 61034

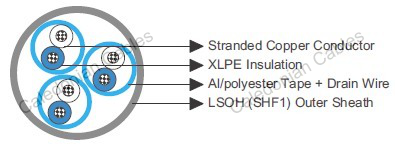

    Construction

    Conductors : Class 2 stranded copper conductor.

    Insulation : XLPE.

    Cabling Element : Pair/Triple.

    Individual Screen : Al/polyester tape.

    Drain Wire : Tinned copper wire.

    Outer Sheath : LSOH (SHF1). SHF2 can be offered upon request.

    Core Identification

    Pair : White/blue with printed pair number and core number.

    Triple : White/blue/red with printed triple number.

    Mechanical and Thermal Properties

    Bending Radius for Fixed Installations : 4×OD

    Temperature Range : -30℃ ~ +80℃

    Dimensions and Weight

    Part No. Construction No. of cores × Cross section Nominal Insulation Thickness Nominal Sheath Thickness Nominal Overall Diameter Nominal Weight
      mm² mm mm mm kg/km
    MRE-2XH PiMF-1P0.75 1×2×0.75 0.5 1.0 7.1 70
    MRE-2XH PiMF-2P0.75 2×2×0.75 0.5 1.1 10.8 140
    MRE-2XH PiMF-3P0.75 3×2×0.75 0.5 1.2 11.8 180
    MRE-2XH PiMF-4P0.75 4×2×0.75 0.5 1.2 12.5 210
    MRE-2XH PiMF-5P0.75 5×2×0.75 0.5 1.3 14.2 260
    MRE-2XH PiMF-6P0.75 6×2×0.75 0.5 1.3 15.2 300
    MRE-2XH PiMF-7P0.75 7×2×0.75 0.5 1.3 15.2 330
    MRE-2XH PiMF-8P0.75 8×2×0.75 0.5 1.3 16.1 370
    MRE-2XH PiMF-10P0.75 10×2×0.75 0.5 1.4 18.3 460
    MRE-2XH PiMF-12P0.75 12×2×0.75 0.5 1.4 19.0 520
    MRE-2XH PiMF-14P0.75 14×2×0.75 0.5 1.5 20.0 600
    MRE-2XH PiMF-16P0.75 16×2×0.75 0.5 1.5 21.4 670
    MRE-2XH PiMF-19P0.75 19×2×0.75 0.5 1.6 23.1 790
    MRE-2XH PiMF-20P0.75 20×2×0.75 0.5 1.6 23.1 810
    MRE-2XH PiMF-24P0.75 24×2×0.75 0.5 1.7 26.5 1000
    MRE-2XH PiMF-30P0.75 30×2×0.75 0.5 1.8 28.9 1220
    MRE-2XH PiMF-37P0.75 37×2×0.75 0.5 1.9 31.1 1470
    MRE-2XH PiMF-1P1.0 1×2×1.0 0.5 1.0 7.5 80
    MRE-2XH PiMF-2P1.0 2×2×1.0 0.5 1.2 11.7 170
    MRE-2XH PiMF-3P1.0 3×2×1.0 0.5 1.2 12.5 210
    MRE-2XH PiMF-4P1.0 4×2×1.0 0.5 1.2 13.3 250
    MRE-2XH PiMF-5P1.0 5×2×1.0 0.5 1.3 15.1 310
    MRE-2XH PiMF-6P1.0 6×2×1.0 0.5 1.3 16.2 360
    MRE-2XH PiMF-7P1.0 7×2×1.0 0.5 1.3 16.2 400
    MRE-2XH PiMF-8P1.0 8×2×1.0 0.5 1.4 17.4 450
    MRE-2XH PiMF-10P1.0 10×2×1.0 0.5 1.5 19.7 570
    MRE-2XH PiMF-12P1.0 12×2×1.0 0.5 1.5 20.5 650
    MRE-2XH PiMF-14P1.0 14×2×1.0 0.5 1.5 21.3 730
    MRE-2XH PiMF-16P1.0 16×2×1.0 0.5 1.6 23.1 840
    MRE-2XH PiMF-19P1.0 19×2×1.0 0.5 1.7 24.9 980
    MRE-2XH PiMF-20P1.0 20×2×1.0 0.5 1.7 24.9 1020
    MRE-2XH PiMF-24P1.0 24×2×1.0 0.5 1.8 28.5 1250
    MRE-2XH PiMF-30P1.0 30×2×1.0 0.5 1.9 31.1 1520
    MRE-2XH PiMF-37P1.0 37×2×1.0 0.5 2.0 33.5 1830
    MRE-2XH TiMF-1T0.75 1×3×0.75 0.5 1.0 7.5 80
    MRE-2XH TiMF-2T0.75 2×3×0.75 0.5 1.2 12.0 170
    MRE-2XH TiMF-3T0.75 3×3×0.75 0.5 1.2 12.7 210
    MRE-2XH TiMF-4T0.75 4×3×0.75 0.5 1.3 14.1 270
    MRE-2XH TiMF-5T0.75 5×3×0.75 0.5 1.3 15.6 330
    MRE-2XH TiMF-6T0.75 6×3×0.75 0.5 1.4 17.7 400
    MRE-2XH TiMF-7T0.75 7×3×0.75 0.5 1.4 17.7 430
    MRE-2XH TiMF-8T0.75 8×3×0.75 0.5 1.4 19.0 490
    MRE-2XH TiMF-10T0.75 10×3×0.75 0.5 1.5 21.6 620
    MRE-2XH TiMF-12T0.75 12×3×0.75 0.5 1.6 23.0 720
    MRE-2XH TiMF-14T0.75 14×3×0.75 0.5 1.6 24.0 810
    MRE-2XH TiMF-16T0.75 16×3×0.75 0.5 1.7 25.7 920
    MRE-2XH TiMF-19T0.75 19×3×0.75 0.5 1.8 27.8 1090
    MRE-2XH TiMF-20T0.75 20×3×0.75 0.5 1.8 28.3 1130
    MRE-2XH TiMF-24T0.75 24×3×0.75 0.5 1.9 30.9 1350
    MRE-2XH TiMF-30T0.75 30×3×0.75 0.5 2.0 34.3 1660
    MRE-2XH TiMF-32T0.75 32×3×0.75 0.5 2.1 35.7 1790
    MRE-2XH TiMF-1T1.0 1×3×1.0 0.5 1.0 7.9 100
    MRE-2XH TiMF-2T1.0 2×3×1.0 0.5 1.2 12.7 200
    MRE-2XH TiMF-3T1.0 3×3×1.0 0.5 1.2 13.5 260
    MRE-2XH TiMF-4T1.0 4×3×1.0 0.5 1.3 15.0 330
    MRE-2XH TiMF-5T1.0 5×3×1.0 0.5 1.4 16.8 400
    MRE-2XH TiMF-6T1.0 6×3×1.0 0.5 1.4 18.9 490
    MRE-2XH TiMF-7T1.0 7×3×1.0 0.5 1.4 18.9 530
    MRE-2XH TiMF-8T1.0 8×3×1.0 0.5 1.5 20.5 610
    MRE-2XH TiMF-10T1.0 10×3×1.0 0.5 1.6 23.3 760
    MRE-2XH TiMF-12T1.0 12×3×1.0 0.5 1.6 24.6 880
    MRE-2XH TiMF-14T1.0 14×3×1.0 0.5 1.7 25.9 1010
    MRE-2XH TiMF-16T1.0 16×3×1.0 0.5 1.8 27.7 1150
    MRE-2XH TiMF-19T1.0 19×3×1.0 0.5 1.8 29.8 1340
    MRE-2XH TiMF-20T1.0 20×3×1.0 0.5 1.9 30.5 1410
    MRE-2XH TiMF-24T1.0 24×3×1.0 0.5 2.0 33.3 1680
    MRE-2XH TiMF-30T1.0 30×3×1.0 0.5 2.1 37.0 2070
    MRE-2XH TiMF-32T1.0 32×3×1.0 0.5 2.2 38.5 2220
