    TIOI/TIOU (MRE-2XCH) 150/250V XLPE Insulated, LSOH (SHF1) Sheathed, Armoured Flame Retardant Instrumentation & Control Cables (Multicore)

    Application

    These armoured cables are used on board of ships in all locations for fixed installations complying with IEC standards 60092-352. These cables are flame retardant, low smoke& halogen free, suitable for installations on passenger ships, as on other commercial vessels.

    Standards

    IEC 60092-350/360/376

    IEC 60332-1

    IEC 60332-3-22

    IEC 60754-1/2

    IEC 61034

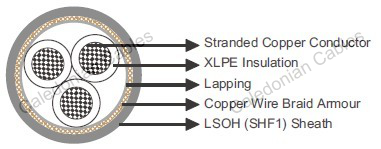

    Construction

    Conductors : Class 2 stranded copper conductor.

    Insulation : XLPE.

    Inner Covering : Lapping.

    Armour : Copper wire braid.

    Outer Sheath : LSOH (SHF1). SHF2 can be offered upon request.

    Core Identification

    White with printed number.

    Mechanical and Thermal Properties

    Bending Radius for Fixed Installations : 6×OD

    Temperature Range : -30℃ ~ +80℃

    Dimensions and Weight

    Part No. Construction No. of cores × Cross section Nominal Insulation Thickness Nominal Sheath Thickness Nominal Overall Diameter Nominal Weight
      mm² mm mm mm kg/km
    MRE-2XCH-2C0.75 2×0.75 0.5 1.2 7.2 80
    MRE-2XCH-3C0.75 3×0.75 0.5 1.2 7.5 90
    MRE-2XCH-5C0.75 5×0.75 0.5 1.4 8.9 130
    MRE-2XCH-7C0.75 7×0.75 0.5 1.6 9.8 150
    MRE-2XCH-12C0.75 12×0.75 0.5 1.7 12.4 230
    MRE-2XCH-19C0.75 19×0.75 0.5 1.9 14.6 320
    MRE-2XCH-27C0.75 27×0.75 0.5 2.1 17.3 460
    MRE-2XCH-37C0.75 37×0.75 0.5 2.2 19.3 590
    MRE-2XCH-2C1.0 2×1.0 0.5 1.4 7.9 90
    MRE-2XCH-3C1.0 3×1.0 0.5 1.4 8.3 100
    MRE-2XCH-5C1.0 5×1.0 0.5 1.5 9.7 150
    MRE-2XCH-7C1.0 7×1.0 0.5 1.6 10.4 180
    MRE-2XCH-12C1.0 12×1.0 0.5 1.8 13.2 270
    MRE-2XCH-19C1.0 19×1.0 0.5 2.1 15.9 420
    MRE-2XCH-27C1.0 27×1.0 0.5 2.2 18.4 560
    MRE-2XCH-37C1.0 37×1.0 0.5 2.4 20.7 710
