    BI/BU (MFX400) 0.6/1 kV Mica Tape + XLPE Insulated, LSOH (SHF1) Sheathed Fire Resistant Power & Control Cables (Multicore)

    Application

    These unarmoured fire resistant cables are used on board of ships in all locations for fixed installations where cable protection is not required. These cables are fire resistant, flame retardant, low smoke & halogen free.

    Standards

    IEC 60092-350/353/360

    IEC 60331-21

    IEC 60332-1

    IEC 60332-3-22

    IEC 60754-1/2

    IEC 61034

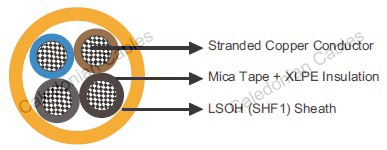

    Construction

    Conductors : Class 2 stranded copper conductor. Class 5 stranded conductors can be offered upon request.

    Insulation : Mica tape + XLPE.

    Outer Sheath : LSOH (SHF1). SHF2 can be offered upon request.

    Core Identification

    Two cores : Blue, Brown.

    Three cores : Brown, Black, Grey.

    Four cores : Blue, Brown, Black, Grey.

    Five cores : Blue, Brown, Black, Grey, Black.

    Multi cores : White with black numbers.

    Mechanical and Thermal Properties

    Bending Radius for Fixed Installations : 6×OD (OD>25mm); 4×OD (OD ≤25mm)

    Temperature Range : -30℃ ~ +80℃

    Dimensions and Weight

    MFX400 1mRZ1-R Multicore 0.6/1kV (-R stands for class 2 conductor. For class 5 conductor, please change –R to –F)

    Part No. Construction No. of cores × Cross section Nominal Insulation Thickness Nominal Sheath Thickness Nominal Overall Diameter Nominal Weight
      mm² mm mm mm kg/km
    MFX400-1mRZ1-R-2C1.5 2×1.5 0.7 1.1 8.5 85
    MFX400-1mRZ1-R-2C2.5 2×2.5 0.7 1.1 9.5 110
    MFX400-1mRZ1-R-2C4 2×4 0.7 1.1 11.3 140
    MFX400-1mRZ1-R-2C6 2×6 0.7 1.2 12.6 230
    MFX400-1mRZ1-R-2C10 2×10 0.7 1.2 14.3 330
    MFX400-1mRZ1-R-2C16 2×16 0.7 1.3 16.6 490
    MFX400-1mRZ1-R-2C25 2×25 0.9 1.3 19.5 750
    MFX400-1mRZ1-R-2C35 2×35 0.9 1.5 22.0 990
    MFX400-1mRZ1-R-2C50 2×50 1.0 1.5 24.8 1340
    MFX400-1mRZ1-R-3C1.5 3×1.5 0.7 1.1 9.5 105
    MFX400-1mRZ1-R-3C2.5 3×2.5 0.7 1.1 10.0 145
    MFX400-1mRZ1-R-3C4 3×4 0.7 1.2 12.3 205
    MFX400-1mRZ1-R-3C6 3×6 0.7 1.2 13.5 270
    MFX400-1mRZ1-R-3C10 3×10 0.7 1.3 15.5 400
    MFX400-1mRZ1-R-3C16 3×16 0.7 1.3 18.0 610
    MFX400-1mRZ1-R-3C25 3×25 0.9 1.5 21.4 920
    MFX400-1mRZ1-R-3C35 3×35 0.9 1.6 24.2 1330
    MFX400-1mRZ1-R-3C50 3×50 1.0 1.7 27.5 1830
    MFX400-1mRZ1-R-3C70 3×70 1.1 1.8 32.0 2570
    MFX400-1mRZ1-R-3C70S 3×70 (sector shaped) 1.1 1.8 27.5 2370
    MFX400-1mRZ1-R-3C95 3×95 1.1 1.9 36.4 3360
    MFX400-1mRZ1-R-3C95S 3×95 (sector shaped) 1.1 1.9 31.1 3130
    MFX400-1mRZ1-R-3C120 3×120 1.2 2.1 40.7 4180
    MFX400-1mRZ1-R-3C120S 3×120 (sector shaped) 1.2 2.1 34.4 3930
    MFX400-1mRZ1-R-4C1.5 4×1.5 0.7 1.1 10.0 135
    MFX400-1mRZ1-R-4C2.5 4×2.5 0.7 1.1 11.2 180
    MFX400-1mRZ1-R-4C4 4×4 0.7 1.2 13.5 260
    MFX400-1mRZ1-R-4C6 4×6 0.7 1.2 14.8 350
    MFX400-1mRZ1-R-4C10 4×10 0.7 1.3 17.0 530
    MFX400-1mRZ1-R-4C16 4×16 0.7 1.4 19.8 800
    MFX400-1mRZ1-R-4C25 4×25 0.9 1.5 23.5 1230
    MFX400-1mRZ1-R-4C35 4×35 0.9 1.7 26.7 1650
    MFX400-1mRZ1-R-5C1.5 5×1.5 0.7 1.1 11.0 170
    MFX400-1mRZ1-R-7C1.5 7×1.5 0.7 1.2 12.6 210
    MFX400-1mRZ1-R-12C1.5 12×1.5 0.7 1.3 16.5 350
    MFX400-1mRZ1-R-19C1.5 19×1.5 0.7 1.4 19.6 520
    MFX400-1mRZ1-R-27C1.5 27×1.5 0.7 1.5 23.3 730
    MFX400-1mRZ1-R-37C1.5 37×1.5 0.7 1.6 26.3 980
    MFX400-1mRZ1-R-5C2.5 5×2.5 0.7 1.2 12.5 240
    MFX400-1mRZ1-R-7C2.5 7×2.5 0.7 1.2 14.1 300
    MFX400-1mRZ1-R-12C2.5 12×2.5 0.7 1.3 18.6 490
    MFX400-1mRZ1-R-19C2.5 19×2.5 0.7 1.4 22.1 750
    MFX400-1mRZ1-R-27C2.5 27×2.5 0.7 1.5 26.4 1060
