    BFOI/BFOU (MFX400) 0.6/1 kV Mica Tape + XLPE Insulated, LSOH (SHF1) Sheathed, Armoured Fire Resistant Power & Control Cables (Multicore)

    Application

    These armoured fire resistant cables are used on board of ships in all locations for fixed installations where cable protection is required. These cables are fire resistant, flame retardant, low smoke & halogen free.

    Standards

    IEC 60092-350/353/360

    IEC 60331-21

    IEC 60332-1

    IEC 60332-3-22

    IEC 60754-1/2

    IEC 61034

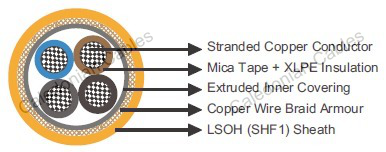

    Construction

    Conductors : Class 2 stranded copper conductor. Class 5 stranded conductors can be offered upon request.

    Insulation : Mica tape + XLPE.

    Inner Covering : Extruded inner covering.

    Armour : Copper wire braid.

    Outer Sheath : LSOH (SHF1). SHF2 can be offered upon request.

    Core Identification

    Two cores : Blue, Brown.

    Three cores : Brown, Black, Grey.

    Four cores : Blue, Brown, Black, Grey.

    Five cores : Blue, Brown, Black, Grey, Black.

    Multi cores : White with black numbers.

    Mechanical and Thermal Properties

    Bending Radius for Fixed Installations : 6×OD

    Temperature Range : -30℃ ~ +80℃

    Dimensions and Weight

    MFX400 1mRMZ1-R Multicore Armoured 0.6/1kV (-R stands for class 2 conductor. For class 5 conductor, please change –R to –F)

    Part No. Construction No. of cores × Cross section Nominal Insulation Thickness Nominal Sheath Thickness Nominal Overall Diameter Nominal Weight
      mm² mm mm mm kg/km
    MFX400-1mRMZ1-R-2C1.5 2×1.5 0.7 1.1 10.5 180
    MFX400-1mRMZ1-R-2C2.5 2×2.5 0.7 1.1 11.7 230
    MFX400-1mRMZ1-R-2C4 2×4 0.7 1.2 12.5 290
    MFX400-1mRMZ1-R-2C6 2×6 0.7 1.2 14.4 400
    MFX400-1mRMZ1-R-2C10 2×10 0.7 1.3 16.2 570
    MFX400-1mRMZ1-R-2C16 2×16 0.7 1.4 18.6 770
    MFX400-1mRMZ1-R-2C25 2×25 0.9 1.5 22.8 1130
    MFX400-1mRMZ1-R-2C35 2×35 0.9 1.5 25.0 1420
    MFX400-1mRMZ1-R-2C50 2×50 1.0 1.5 28.0 1860
    MFX400-1mRMZ1-R-3C1.5 3×1.5 0.7 1.1 11.2 210
    MFX400-1mRMZ1-R-3C2.5 3×2.5 0.7 1.1 12.2 260
    MFX400-1mRMZ1-R-3C4 3×4 0.7 1.2 13.1 340
    MFX400-1mRMZ1-R-3C6 3×6 0.7 1.3 15.3 480
    MFX400-1mRMZ1-R-3C10 3×10 0.7 1.3 17.3 680
    MFX400-1mRMZ1-R-3C16 3×16 0.7 1.4 19.6 930
    MFX400-1mRMZ1-R-3C25 3×25 0.9 1.6 24.1 1380
    MFX400-1mRMZ1-R-3C35 3×35 0.9 1.6 26.4 1770
    MFX400-1mRMZ1-R-3C50 3×50 1.0 1.6 29.6 2350
    MFX400-1mRMZ1-R-3C70S 3×70 (sector shaped) 1.1 2.0 31.9 2930
    MFX400-1mRMZ1-R-3C95S 3×95 (sector shaped) 1.1 2.1 36.1 3870
    MFX400-1mRMZ1-R-3C120S 3×120 (sector shaped) 1.2 2.2 39.6 4770
    MFX400-1mRMZ1-R-4C1.5 4×1.5 0.7 1.1 12.1 250
    MFX400-1mRMZ1-R-4C2.5 4×2.5 0.7 1.2 12.9 300
    MFX400-1mRMZ1-R-4C4 4×4 0.7 1.3 15.0 440
    MFX400-1mRMZ1-R-4C6 4×6 0.7 1.3 16.6 570
    MFX400-1mRMZ1-R-4C10 4×10 0.7 1.4 18.7 810
    MFX400-1mRMZ1-R-4C16 4×16 0.7 1.5 21.8 1160
    MFX400-1mRMZ1-R-4C25 4×25 0.9 1.6 26.9 1720
    MFX400-1mRMZ1-R-4C35 4×35 0.9 1.7 29.7 2220
    MFX400-1mRMZ1-R-5C1.5 5×1.5 0.7 1.2 12.8 280
    MFX400-1mRMZ1-R-7C1.5 7×1.5 0.7 1.2 14.3 370
    MFX400-1mRMZ1-R-12C1.5 12×1.5 0.7 1.4 17.9 570
    MFX400-1mRMZ1-R-19C1.5 19×1.5 0.7 1.5 20.7 790
    MFX400-1mRMZ1-R-27C1.5 27×1.5 0.7 1.7 24.4 1100
    MFX400-1mRMZ1-R-37C1.5 37×1.5 0.7 1.9 27.3 1380
    MFX400-1mRMZ1-R-5C2.5 5×2.5 0.7 1.2 14.7 400
    MFX400-1mRMZ1-R-7C2.5 7×2.5 0.7 1.2 15.8 480
    MFX400-1mRMZ1-R-12C2.5 12×2.5 0.7 1.4 20.3 780
    MFX400-1mRMZ1-R-19C2.5 19×2.5 0.7 1.5 23.4 1070
    MFX400-1mRMZ1-R-27C2.5 27×2.5 0.7 1.7 27.9 1500
