    BOI/BOU (MFX300) 0.6/1 kV Mica Tape + XLPE Insulated, LSOH (SHF1) Sheathed, Armoured Fire Resistant Power & Control Cables (Single Core)

    Application

    These armoured fire resistant cables are used on board of ships in all locations for fixed installations where cable protection is required. These cables are fire resistant, flame retardant, low smoke & halogen free.

    Standards

    IEC 60092-350/353/360

    IEC 60331-21

    IEC 60332-1

    IEC 60332-3-22

    IEC 60754-1/2

    IEC 61034

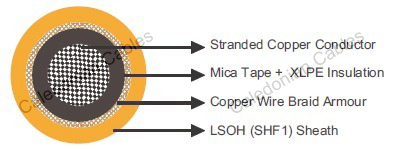

    Construction

    Conductors : Class 2 stranded copper conductor. Class 5 stranded conductors can be offered upon request.

    Insulation : Mica tape + XLPE.

    Armour : Copper wire braid.

    Outer Sheath : LSOH (SHF1). SHF2 can be offered upon request.

    Core Identification

    Single core : Black.

    Mechanical and Thermal Properties

    Bending Radius for Fixed Installations : 6×OD

    Temperature Range : -30℃ ~ +80℃

    Dimensions and Weight

    MFX300 1mRMZ1-R Single Core Armoured 0.6/1kV (-R stands for class 2 conductor. For class 5 conductor, please change –R to –F)

    Part No. Construction No. of cores × Cross section Nominal Insulation Thickness Nominal Sheath Thickness Nominal Overall Diameter Nominal Weight
      mm² mm mm mm kg/km
    MFX300-1mRMZ1-R-1C25 1×25 0.9 1.2 13.0 410
    MFX300-1mRMZ1-R-1C35 1×35 0.9 1.2 14.6 550
    MFX300-1mRMZ1-R-1C50 1×50 1.0 1.3 15.8 720
    MFX300-1mRMZ1-R-1C70 1×70 1.1 1.4 17.8 960
    MFX300-1mRMZ1-R-1C95 1×95 1.1 1.4 20.7 1250
    MFX300-1mRMZ1-R-1C120 1×120 1.2 1.5 22.8 1540
