    BOI/BOU (MFX300) 0.6/1 kV Fire Barriers + HEPR Insulated, LSOH (SHF1) Sheathed, Screened Fire Resistant Power & Control Cables (Single Core)

    Application

    These cables are used for fixed installations on ships and offshore units in all locations and on open deck in safety circuits, where fire resistance is required. The good screening qualities of the copper braid also reduce radio interference and electrical influences to electronics installations. These cables are fire resistant, flame retardant, low smoke & halogen free.

    Standards

    DIN 89160/98

    IEC 60092-353

    IEC 60331-21

    IEC 60332-1

    IEC 60332-3-22

    IEC 60754-1/2

    IEC 61034

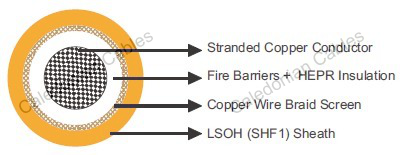

    Construction

    Conductors : Class 2 stranded copper conductor.

    Insulation : Fire barriers + HEPR.

    Overall Screen : Copper wire braid.

    Outer Sheath : LSOH (SHF1).

    Core Identification

    Single core : Natural colour (beige).

    Mechanical and Thermal Properties

    Bending Radius for Fixed Installations : 6×OD

    Temperature Range : -20℃ ~ +75℃

    Dimensions and Weight

    Part No. Construction No. of cores × Cross section Nominal Insulation Thickness Nominal Sheath Thickness Nominal Overall Diameter Nominal Weight
      mm² mm mm mm kg/km
    MFX300-1mG7MZ1-R-1C25 1×25 0.9 1.2 12.5 380
    MFX300-1mG7MZ1-R-1C35 1×35 0.9 1.2 13.5 480
    MFX300-1mG7MZ1-R-1C50 1×50 1.0 1.3 15.5 670
    MFX300-1mG7MZ1-R-1C70 1×70 1.1 1.4 17.5 900
    MFX300-1mG7MZ1-R-1C95 1×95 1.1 1.4 19.5 1170
    MFX300-1mG7MZ1-R-1C120 1×120 1.6 1.5 21.0 1430
