PROFIBUS 1 Pair 22 AWG

These profibus cables are dedicated for fixed installation on board of ship, used as connection cables for digital signals up to 12MBd.

IEC 60332-1&2

IEC 60754-1/2

IEC 61034

IEC 60092

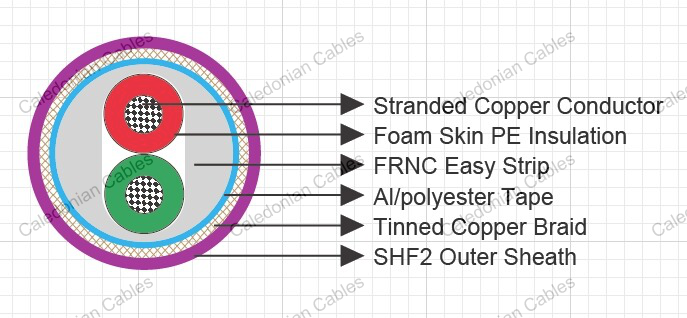

Conductors : Stranded bare copper 22 AWG.

Insulation : Foam skin PE.

Easy Strip : Thermoplastic copolymer (FRNC).

Overall Screen1 : Aluminium/polyester tape.

Overall Screen2 : Tinned copper braid.

Outer Sheath : SHF2.

Core 1 : Red

Core 2 : Green

Bending Radius for Fixed Installations : 10×OD

Temperature Range : -25℃ ~ +80℃

Part No.	Construction No. of elements × No. of cores in element × Cross section	Core Diameter	Nominal Overall Diameter	Nominal Weight
	mm²	mm	mm	kg/km
MLN- 02YSH(ST)CH-1×2×22A	1×2×22 AWG	2.55	8.0	84
