    KX Series Coaxial Cables 50 Ω/75 Ω

    Application

    These radio frequency cables are suitable for high frequency data transmission (communication equipment, radar, instrumentation equipment) and video signal transmission.

    Standards

    In line with MIL C17

    IEC 60092-360

    IEC 60332-3-22

    IEC 60754-1/2

    IEC 61034

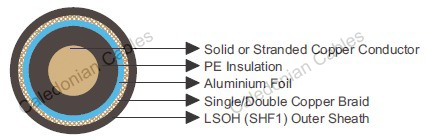

    Construction

    Conductors : Solid or stranded CCS (Bare copper plated steel), BC (Bare copper).

    Insulation : PE.

    Fire Barriers : Aluminium foil.

    Screen : Single or double braid. Bare, tinned or silvered copper

    Outer Sheath : LSOH (SHF1).

    Electrical Characteristics

    KX 3B KX 6A KX 8
    Characteristic Impedance Ω 50 75 75
    Capacitance pF/m 106 72 72
    Velocity % 66 66 66
    Attenuation @200MHz dB/100m 45 20 12

    Mechanical and Thermal Properties

    Bending Radius for Fixed Installations : 10×OD

    Temperature Range : -30℃ ~ +60℃

    Dimensions and Weight

    50 Ω

    Part No. Cable Type Conductor Stranding Conductor Diameter Dielectric Diameter Nominal Overall Diameter Nominal Weight
        No.×mm mm mm mm kg/km
    MLN-KX3B KX 3B 7×0.16 CCS 0.48 1.50 2.55 10

    75 Ω

    Part No. Cable Type Conductor Stranding Conductor Diameter Dielectric Diameter Nominal Overall Diameter Nominal Weight
        No.×mm mm mm mm kg/km
    MLN-KX6A KX 6A 7×0.20 BC 0.6 3.7 6.1 57
    MLN-KX8 KX 8 7×0.40 BC 1.2 7.25 10.3 145
