    Fire Resistant Central Loose Tube Optical Fiber Cables

    Application

    These optical fiber cables are designed to data transmission in ship and specially in cruise ship where low smoke, halogen free and fire resistant cables are required to increase safety on board, suitable for flexible installation on and below deck of commercial ships without constant exposure to oil, grease and other lubricants.

    Standards

    IEC 60092-350/352/353/360/370/376

    IEC 60332-1-2

    IEC 60332-3-22

    IEC 60754-1/2

    IEC 61034

    IEC 60331-11 and -25

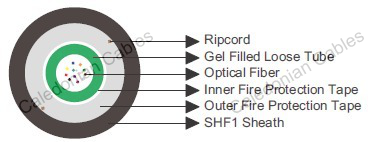

    Construction

    Optical Fiber : Loose tube, gel filled.

    Inner Tape : Fire protection tape.

    Outer Tape : Fire protection tape.

    Outer Sheath : SHF1.

    Fiber Specification

      G50/125 G62.5/125 E9/125
    Geometry/Mechanical Properties
    Core Diameter μm 50 ± 2.5 62.5 ± 3
    Mode Field Diameter (at 1310 nm) μm     9.2 ± 0.4
    Cladding Diameter μm 125 ± 2 125 ± 1 125 ± 2
    Coating Diameter μm 245 ± 10 245 ± 5 245 ± 10
    Core Non-circularity % < 5 < 5
    Cladding Non-circularity % < 1 < 1 < 1
    Core/Clad Concentricity Error μm < 1.5 < 1.5 < 0.8
    Eccentricity of Coating μm < 10 < 10 < 10
    Screen Test   ≥100 kpsi ≥100 kpsi ≥100 kpsi
    Transmission Properties   OM2 OM1 OS1
    Wavelength nm 850 1300 850 1300 1310 1550
    Attenuation Max. dB/km 2.7 0.8 3.2 0.9 0.36 0.22
    Bandwidth Min. MHz. km 500 1000 250 600
    Effective Group of Refraction   1.483 1.478 1.497 1.493 1.4695 1.4701
    Numerical Aperture   0.200 ± 0.015 0.275 ± 0.015
    Dispersion Coefficient Max. ps/nm.km         3.5 18
    Zero Dispersion Wavelength nm           1300–1322
    Dispersion Slope ps/nm² .km           ≤0.092
    Cutoff Wavelength (cabled) nm           ≤1250
    Polarization Mode Dispersion ps/km1/2           ≤0.1

    Mechanical and Thermal Properties

    Bending Radius for Fixed Installations : 20×OD

    Temperature Range : -20℃ ~ +60℃

    Dimensions and Weight

    Part No. No. of Optical Fibers Nominal Overall Diameter Nominal Weight
        mm kg/km
    MLN-FCLA-X-12-H-J 12 10.0 115
    MLN-FCLB-X-24-H-J 24 10.5 125

    Note : X : Fiber type

    0=Fiber and copper conductors in cable 4=50/125 multi-mode fiber (OM3)

    5=50/125 multi-mode fiber (OM2)

    6=50/125 multi-mode fiber (OM1)

    7=NZDS SM fiber per G.656.

    8=NZDS SM fiber per G.655.

    9=Standard SM fiber per G.652.D
