These Cat6 U/FTP cables are manufactured in accordance with IEC 61156-5 requirements, can support all Class E applications like Ethernet, Fast Ethernet, Gigabit Ethernet, suitable for basic voice and data installations up to 250MHz.
EN 50288
ISO 11801
IEC 61156-5
IEC 60332-1
IEC 60754-1/2
IEC 61034

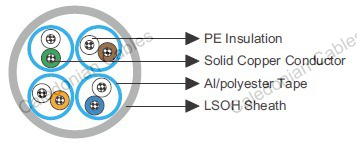

| Conductors | Solid bare copper conductor. |
| Insulation | PE. |
| Twinning | Two coloured insulated conductors twisted together to form a pair. |
| Individual Screen | Al/polyester tape. |
| Outer Sheath | LSOH. |
| Pair 1 | White, Blue |
| Pair 2 | White Orange |
| Pair 3 | White, Green |
| Pair 4 | White, Brown |
| Maximum Loop Resistance | Ω/km | 145 |
|---|---|---|
| Maximum Resistance Unbalance | 2% | |
| Minimum Insulation Resistance | MΩ.km | 1000 |
| Nominal Capacitance @800Hz | nF/km | 45 |
| Maximum Capacitance Unbalance (pair to ground) | pF/km | 800 |
| Characteristic Impedance @1-100MHz | Ω | 100 ± 5 |
| Nominal Velocity of Propagation | 0.75c | |
| Maximum Propagation Delay | ns/100 m | 500 |
| Maximum Delay Skew | ns/100 m | 20 |
| Maximum Transfer Impedance @1MHz | mΩ /m | 50 |
| Maximum Transfer Impedance @10MHz | mΩ /m | 100 |
| Maximum Transfer Impedance @30MHz | mΩ /m | 200 |
| Minimum Coupling Attenuation | dB | 55 |
| F | Attenuation | NEXT | PS-NEXT | ACR | PS-ACR | ELFEXT | PS-ELFEXT | Return Loss |
|---|---|---|---|---|---|---|---|---|
| MHz | dB/100m | dB | dB | dB/100m | dB/100m | dB/100m | dB/100m | dB |
| 1 | 2.0 | 90 | 87 | 88 | 85 | 85 | 82 | |
| 4 | 3.6 | 90 | 87 | 86 | 83 | 85 | 82 | 27 |
| 10 | 5.7 | 90 | 87 | 84 | 81 | 79 | 76 | 30 |
| 16 | 7.2 | 90 | 87 | 83 | 80 | 75 | 72 | 30 |
| 20 | 8.1 | 90 | 87 | 82 | 79 | 73 | 70 | 30 |
| 31.25 | 10.2 | 90 | 87 | 80 | 77 | 69 | 66 | 30 |
| 62.50 | 14.7 | 90 | 87 | 75 | 72 | 63 | 60 | 30 |
| 100 | 18.9 | 90 | 87 | 71 | 68 | 59 | 56 | 30 |
| 155 | 24.0 | 88 | 85 | 64 | 61 | 55 | 52 | 26 |
| 200 | 27.0 | 88 | 85 | 61 | 58 | 53 | 50 | 25 |
| 250 | 31.4 | 86 | 83 | 55 | 52 | 51 | 48 | 25 |
| 300 | 34.8 | 86 | 83 | 51 | 48 | 49 | 46 | 23 |
| 400 | 38.1 | 86 | 83 | 48 | 45 | 44 | 41 | 23 |
Bending Radius : 8×OD (during installation); 4×OD (fixed installed)
Temperature Range : -20℃ ~ +60℃
| Part No. | Construction No. of elements × No. of cores in element × Cross section | Nominal Insulation Thickness | Nominal Sheath Thickness | Nominal Overall Diameter | Nominal Weight |
|---|---|---|---|---|---|
| (mm²) | mm | mm | mm | kg/km | |
| MLN-U/FTPCAT64P23 | 4×2×23AWG | 0.23 | 0.63 | 7.5 | 61 |
